Winkhaus Botticelli Keyed Entry Trim for Sliding Patio Doors – Left Hand

SKU:

$179.15 - $324.73

$179.15

$179.15 - $324.73

$179.15

Function: Keyed entry with thumb turn inside, key outside
Style: Botticelli
Handing: Left Hand shown (handing required)
Mounting Screw Holes: 7-7/8" (200mm)
Door Thickness Options: 1-3/4" (45mm) or 2-1/4" (57mm)

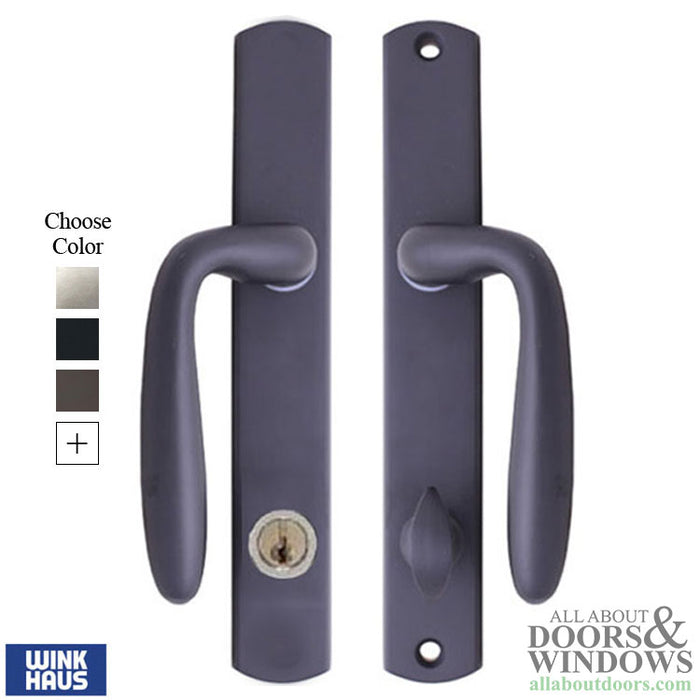

Finish Options: Oil Rubbed Brass, PVD Bronze, Flat Black, Antique Brass, PVD Bright Brass, PVD Satin Nickel
Includes: Full cylinder with 2 keys
Only compatible with Winkhaus 90° cylinder

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

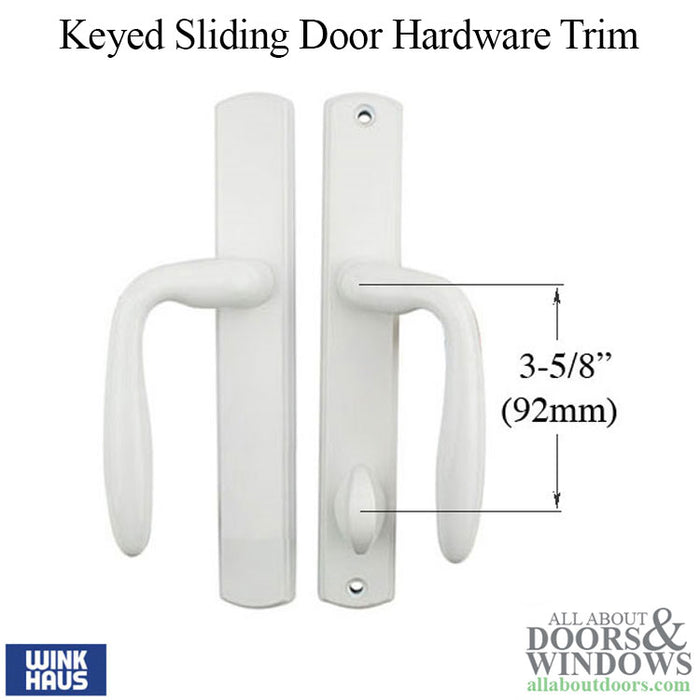

Winkhaus Botticelli Keyed Entry Trim (398105)

This Winkhaus Botticelli sliding patio door handle trim provides keyed entry functionality for enhanced security. The elegant Botticelli style features a thumb turn on the interior side and key access on the exterior, making it ideal for sliding patio doors where security and convenience are priorities.

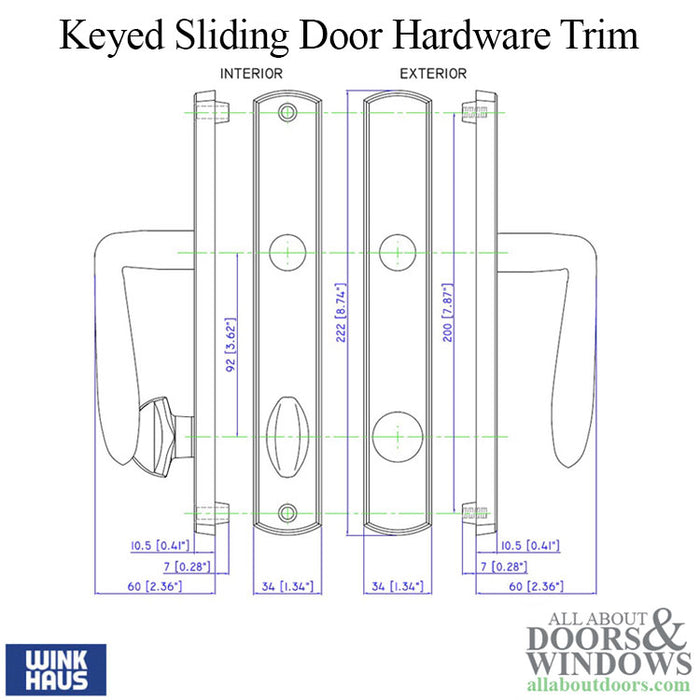

The trim accommodates two door thickness options: 1-3/4 inches (45mm) or 2-1/4 inches (57mm). Mounting screw holes are spaced at 7-7/8 inches (200mm). This is a handed product, with the left hand configuration shown.

Technical Information

Function: Keyed Entry (thumb turn inside, key outside)
Style: Botticelli
Mounting Screw Hole Spacing: 7-7/8 inches (200mm)
Door Thickness: 1-3/4 inches (45mm) or 2-1/4 inches (57mm)
Handing: Required (Left Hand shown)
Cylinder: Full cylinder with 2 keys included

Notes

Available finishes: Oil Rubbed Brass, PVD Bronze, Flat Black, Antique Brass, PVD Bright Brass, PVD Satin Nickel
The Winkhaus Slider Door Lock will only function with the Winkhaus 90° cylinder

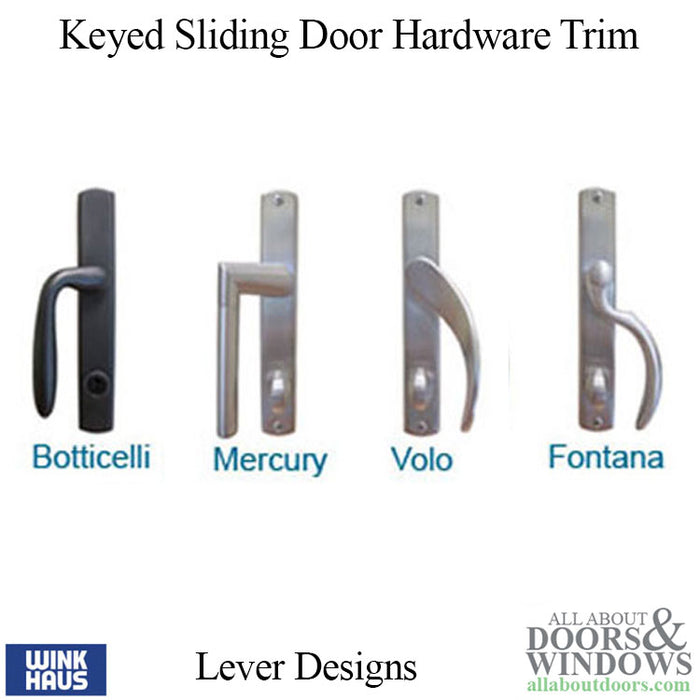

Winkhaus offers 3 function types for this style: Keyed Entry, Non-Keyed Patio (thumb turn inside, no key outside), and Inactive/Dummy Pull

Related Parts

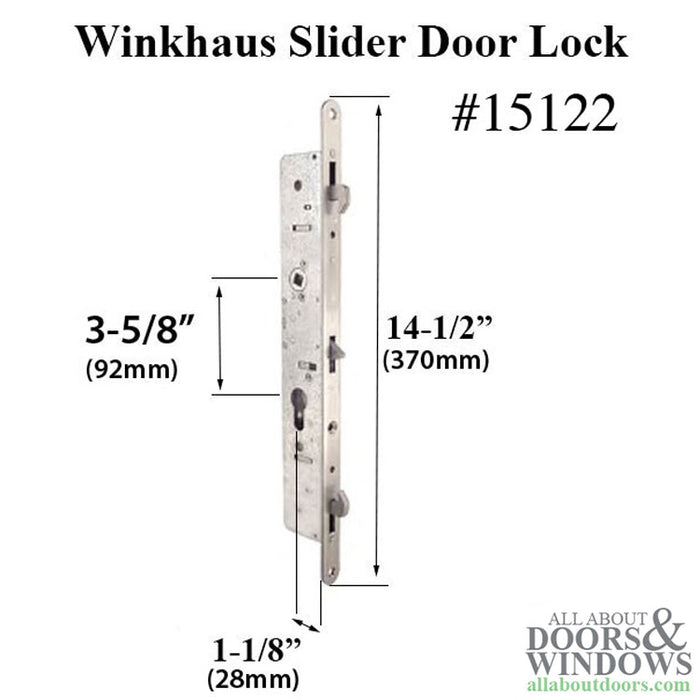

15122 - Winkhaus Mortise Lock, 2 hook, 28mm Backset

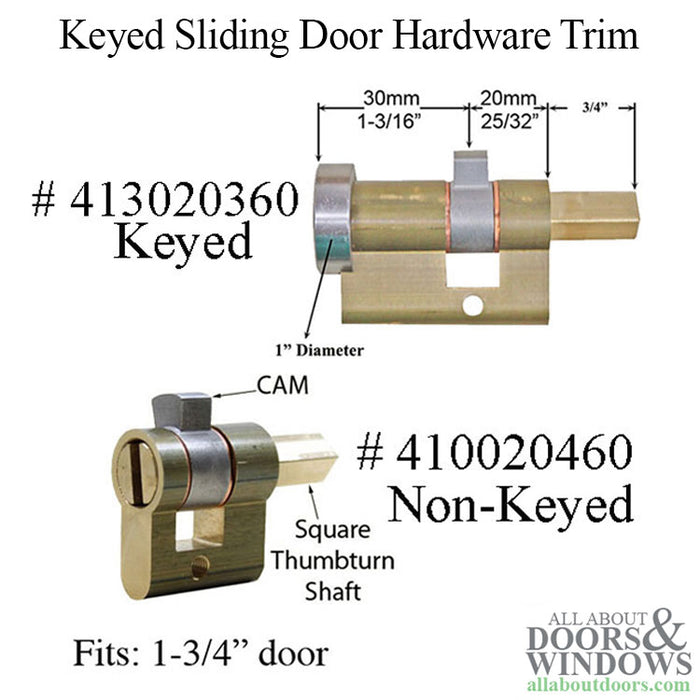

413020360 - Keyed Cylinder for 1-3/4 inch thick door
413530360 - Keyed Cylinder for 2-1/4 inch thick door

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What cylinder does this Winkhaus sliding door trim require?

This trim only functions with the Winkhaus 90° cylinder. Standard cylinders will not work with this hardware.

How do I determine the correct handing for my door?

Stand on the exterior side of your door facing it. If the handle is on the left side, you need left hand. If on the right, you need right hand.

What door thicknesses does this trim fit?

This trim is available for 1-3/4 inch (45mm) or 2-1/4 inch (57mm) thick doors. Select the appropriate cylinder based on your door thickness.
