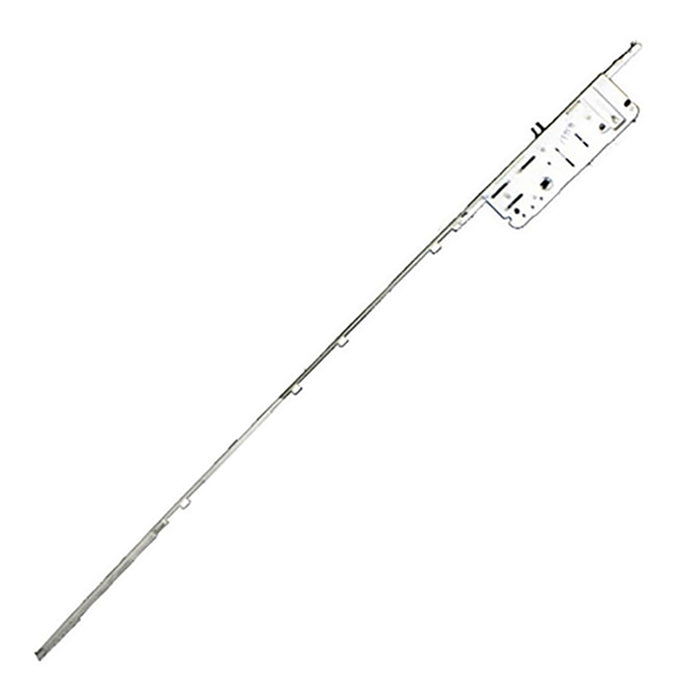

Truth Sentry Active Shootbolt Multipoint Lock Gear – 45mm Backset, 16mm Faceplate

SKU: 13925

$274.43 - $274.43

$274.43

$274.43 - $274.43

$274.43

Backset: 1-3/4" (45mm)
Faceplate Width: 5/8" (16mm)
Handle Height: 36" (914.4mm)
Key Position: Above Lever
Lower Shootbolt Locking Point: Active shootbolt design
Handing: Reversible – pull latch out and rotate to change
Operation: Lift handle to extend hooks, turn thumbturn or key to throw deadbolt
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Truth Sentry Multipoint Lock Gear – 45mm, 16mm FP (13925)

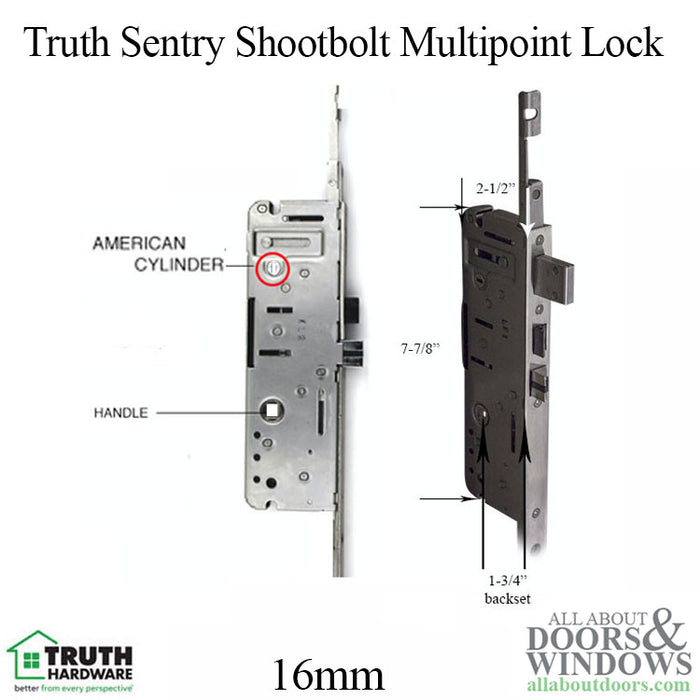

The Truth Sentry 16mm Active Shootbolt Multipoint Lock Gear is designed for multipoint door systems requiring reliable, multi-point locking security. This lock gear features a 1-3/4 inch (45mm) backset and a 5/8 inch (16mm) faceplate width, with a 36 inch (914.4mm) handle height configuration.

The key cylinder is positioned above the lever handle. This unit includes a lower shootbolt locking point for enhanced security at the bottom of the door.

Technical Information

Backset: 1-3/4 inches (45mm)
Faceplate Width: 5/8 inch (16mm)
Handle Height: 36 inches (914.4mm)
Key Position: Above Lever
Locking Points: Lower Shootbolt
Handing: Reversible

Notes

To change handing: Pull the springlatch out and spin it, then push in the mis-handing device to lock. The mis-handing latch flips to the other side when pushed.
Operation: Lift handle to extend hooks, turn thumbturn or key to throw deadbolt. To open, retract deadbolt with key or thumbturn, then push down on lever.

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I change the handing on this lock?

Pull the springlatch out and spin it to reverse the handing. Push in the mis-handing device to lock it in place, and flip the mis-handing latch to the other side.

How does this multipoint lock operate?

Lift the handle to extend the hooks, then turn the thumbturn or key to throw the deadbolt. To open, retract the deadbolt with the key or thumbturn and push down on the lever.

What does 'key position above lever' mean?

This means the key cylinder is located above the lever handle on the door, which is a common configuration for multipoint lock systems.
