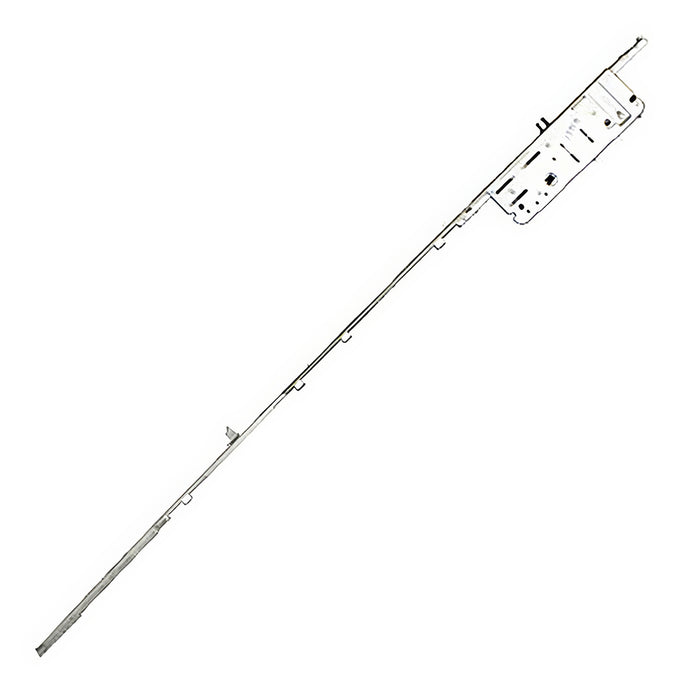

Truth Sentry Active Multipoint Lock – 45mm Backset, 92mm PZ, 36" Handle Height

SKU: 13924

$285.47 - $285.47

$285.47

$285.47 - $285.47

$285.47

PZ: 92mm (3-5/8")
Backset: 45mm (1-3/4")
Faceplate Width: 16mm (5/8")
Handle Height: 36" (914.4mm)
Bottom Tongue Location: 20" (508mm)
Tongue Projection: 20mm (3/4")
Overall Length: 41.3" (1049mm)
Key Position: Above lever
Handing: Reversible – pull latch out and rotate
Features springlatch, shootbolt with tongue, and deadbolt
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Truth Sentry Multipoint Lock – 45/92, 36" Handle (13924)

This Truth Sentry Active Multipoint Lock provides comprehensive security for your entry door with a springlatch, shootbolt with tongue, and deadbolt mechanism. The lock features a 45mm (1-3/4 inch) backset and 92mm PZ spacing, with a 16mm (5/8 inch) faceplate width.

The handle height measures 36 inches from the bottom of the faceplate, with the bottom tongue located at 20 inches. The tongue projection is 20mm (3/4 inch), and the overall faceplate length is 41.3 inches. The key cylinder is positioned above the lever handle.

Technical Information

PZ (Handle to Cylinder Center): 92mm
Backset: 45mm (1-3/4 inches)
Faceplate Width: 16mm (5/8 inch)
Handle Height: 36 inches (914.4mm)
Bottom Tongue Location: 20 inches (508mm)
Tongue Projection: 20mm (3/4 inch)
Overall Length: 41.3 inches (1049mm)
Key Position: Above lever

Notes

Handing is reversible by pulling the latch out and rotating
Mis-handing device can be locked by pushing in
Mis-handing latch flips to other side by pushing

Operation

To Extend Hooks: Lift handle
To Throw Deadbolt: Turn thumbturn or key
To Open: Retract deadbolt with key or thumbturn, then push down on lever

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I change the handing on this Truth Sentry lock?

The lock is reversible. Pull the springlatch out and rotate it to change handing. The mis-handing latch flips to the other side by pushing.

What is the PZ measurement on this lock?

The PZ (distance from handle center to key cylinder center) is 92mm, which is standard for Truth Sentry multipoint locks with a 45mm backset.

How does the multipoint lock operate?

Lift the handle to extend the hooks, turn the thumbturn or key to throw the deadbolt. To open, retract the deadbolt with key or thumbturn, then push down on the lever.
