Trilennium Dummy Handleset Trim with Fixed Levers – 6" Handle to Cylinder Spacing

SKU:

$214.81 - $390.87

$214.81

$214.81 - $390.87

$214.81

Type: Dummy handleset trim with fixed levers and fixed T-turn drive
Compatibility: Works with Trilennium 3000 series inactive panel
Handle to Cylinder Spacing: 6" (152.4mm)
Door Thickness: 1-3/4" (45mm)
Escutcheon Plate Width: 2-7/16" (61.9mm)
Escutcheon Plate Length: 10" (254mm)
Crossbore Options: 1-11/16" or 2-1/8"
Screw Hole Spacing: 5-3/8"
Available in multiple finishes including Satin Nickel with TriLast tarnish-resistant coating

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

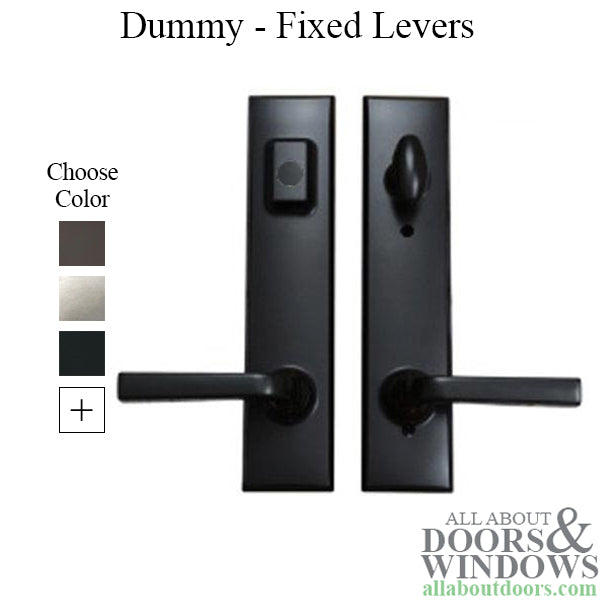

Trilennium Dummy Handleset Trim – Fixed Levers (40075)

This Trilennium dummy handleset trim features fixed levers and a fixed T-turn drive, designed for use with the Trilennium 3000 series inactive panel. It provides a clean, matching appearance on the inactive side of double doors or where a non-functioning handle is needed.

The trim accommodates doors that are 1-3/4 inches (45mm) thick and offers flexibility with crossbore compatibility for both 1-11/16 inch and 2-1/8 inch bore sizes. The escutcheon plate measures 2-7/16 inches (61.9mm) wide by 10 inches (254mm) long, with a handle to cylinder spacing of 6 inches (152.4mm).

Technical Information

Handle to Cylinder Spacing: 6 inches (152.4mm)
Door Thickness: 1-3/4 inches (45mm)
Escutcheon Plate Width: 2-7/16 inches (61.9mm)
Escutcheon Plate Length: 10 inches (254mm)
Crossbore Options: 1-11/16 inches or 2-1/8 inches
Screw Hole Spacing: 5-3/8 inches

Notes

Standard crossbore on most W&F or Endura hardware is 1-11/16 inches. Some doors use a 2-1/8 inch bore.
Most multipoint lock handlesets are only 2 inches wide and will not cover larger 2-1/8 inch holes.
Pella entry doors typically use 2-1/8 inch crossbore.
Standard Peachtree iPD doors use 1-11/16 inch crossbore.
Satin Nickel finish is available in standard plated or TriLast coating, which resists tarnishing and discoloration.
W&F Part Numbers for 1-3/4 inch doors: RECL-DUM-PB-175 (Bright Brass), RECL-DUM-SN-175 (Satin Nickel), RECL-DUM-VB-175 (Victorian Bronze), RECL-DUM-BK-175 (Black Powder Coat), RECL-DUM-SNTL-175 (Satin Nickel TriLast), RECL-DUM-VBTL-175 (Victorian Bronze TriLast)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What crossbore size do I need for this handleset trim?

This trim fits both 1-11/16 inch and 2-1/8 inch crossbores. Standard W&F and Endura hardware uses 1-11/16 inch, while Pella entry doors typically use 2-1/8 inch.

What is the TriLast finish option?

TriLast is a special coating available on Satin Nickel and Victorian Bronze finishes that resists tarnishing and discoloration over time.

Is this a functioning handle or decorative only?

This is a dummy handleset with fixed levers and a fixed T-turn, meaning it does not operate any locking mechanism. It is designed for inactive door panels or decorative applications.
