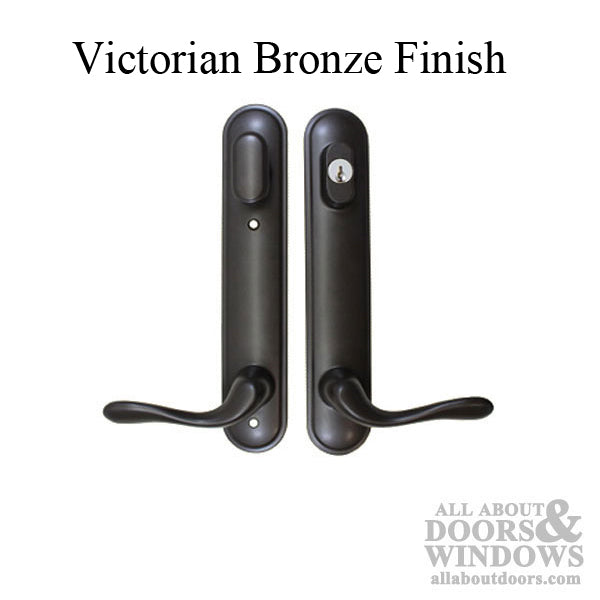

Trilennium Active Keyed Lock Trim – Traditional, Victorian Bronze (Blemished)

SKU: 40064-VBRZ-SC1-BLEM

$158.40 - $158.40

$158.40

$158.40 - $158.40

$158.40

Style: Traditional
PZ Distance: 6" (152.4mm)
Door Thickness: 1-3/4" (45mm)
Escutcheon Plate: 1-29/32" (48.4mm) wide x 10" (254mm) tall
Handle Projection: 2" (50.8mm)
Lock Cross Bore: Fits 1-11/16" (42.9mm) bore
Finish: Victorian Bronze
Keyway: Schlage C (SC1)
Compatibility: Peachtree Citadel IPD doors, Pella Entry doors with Triple Latch Locks, W&F and Trilennium multipoint locks
Condition: Blemished – may include slight scuffs, scratches, or missing screws
Keyed trim only – mortise lock and strike plates not included
Sold as is – no returns, refunds, or exchanges

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Trilennium Active Keyed Lock Trim – Traditional, Victorian Bronze (40064-VBRZ-SC1-BLEM)

This Trilennium Active Keyed Lock handleset trim in Victorian Bronze is designed for use on active doors equipped with IPD multipoint locks. The traditional style escutcheon provides an elegant appearance while offering secure keyed entry with a Schlage C (SC1) keyway.

This handleset is compatible with Peachtree Citadel IPD doors, Pella Entry doors with Triple Latch Locks, and W&F and Trilennium multipoint lock systems. It is specifically designed for doors with multipoint locks that have bolts at the top, bottom, and middle positions – if your door does not have all three bolt locations, this handleset will not work.

Blemished Item Notice

This item is sold as blemished and may include slight scuffs, scratches, and/or missing components such as screws. Blemished items are priced accordingly and sold as is with no returns, refunds, or exchanges.

Technical Information

Style: Traditional
PZ Distance: 6 inches (152.4mm)
Door Thickness: 1-3/4 inches (45mm)
Escutcheon Plate Width: 1-29/32 inches (48.4mm)
Escutcheon Plate Height: 10 inches (254mm)
Handle Projection: 2 inches (50.8mm)
Lock Cross Bore: Fits 1-11/16 inches (42.9mm)
Finish: Victorian Bronze
Keyway: Schlage C (SC1)

Notes

This includes keyed trim only – no mortise lock or strike plates are included.
For 2-1/4 inch (57mm) thick doors, order conversion kit 40039-SC1 for Schlage keyway.
Cross bore size of 2-1/8 inches is not compatible – this trim fits 1-11/16 inch bore only.
These handlesets work best with newer-style multipoint locks. For older IPD multipoint locks manufactured from the 1980s through 2002, this handleset may not work due to bushing design changes. If replacing a handleset on an older IPD lock, consider replacing both the lock and handles.

Related Parts

37400109 - Set of 3 Strike Plates (choose color)
40039-SC1 - Conversion Kit for 2-1/4 inch doors (Schlage keyway)
40039-WR - Conversion Kit for 2-1/4 inch doors (Weiser/Kwikset keyway)

Sold as is. No returns, refunds, or exchanges on blemished items.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will this handleset work with my multipoint lock?

This handleset is designed for doors with multipoint locks that have bolts at the top, bottom, and middle positions. It works with Peachtree Citadel IPD doors, Pella Entry doors with Triple Latch Locks, and W&F and Trilennium multipoint locks.

What does blemished mean for this product?

Blemished items may include slight scuffs, scratches, or missing components such as screws. They are priced accordingly and sold as is with no returns, refunds, or exchanges.

Can I use this on a thicker door?

This trim is designed for 1-3/4 inch thick doors. For 2-1/4 inch thick doors, you will need to order conversion kit 40039-SC1 separately.
