Pella Keyed 5-Pin Cylinder – Schlage SC-1 Keyway

Pella Keyed 5-Pin Cylinder – Schlage SC-1 Keyway

SKU:

$48.72 - $62.58
$48.72
$48.72 - $62.58
$48.72
  • Cylinder Type: American with flat tail piece
  • Keyway: Schlage 5-pin, SC-1
  • Tailpiece Length: 1-1/4" (31.8mm)
  • Cylinder Height: 1" (25.4mm)
  • Cylinder Face Diameter: 0.60" (15.2mm)
  • Faceplate Finishes Available: Brass, Nickel, Antique Brass
  • Compatible with Pella Pro Series, Designer, and Architectural Hardware
  • Fits hinged patio doors and sliding doors
  • Will NOT work on Thermastar Vinyl Patio Doors (see 15031 for replacement)
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Pella Keyed 5-Pin Cylinder – Schlage SC-1 (9060000-SC)

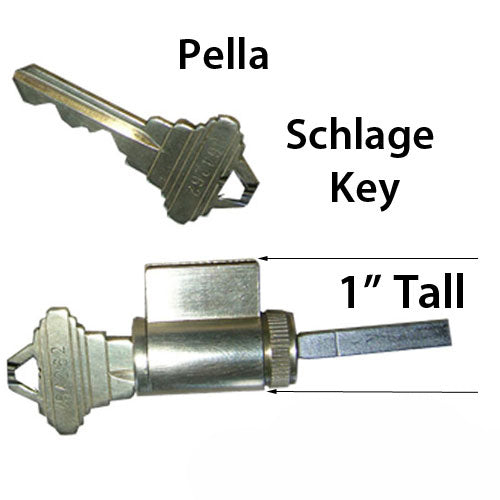

This Pella keyed cylinder is designed for use with Pella sliding patio doors and hinged swinging doors. It features an American-style cylinder with a flat tail piece and uses the Schlage 5-pin SC-1 keyway, making it compatible with standard Schlage key blanks.

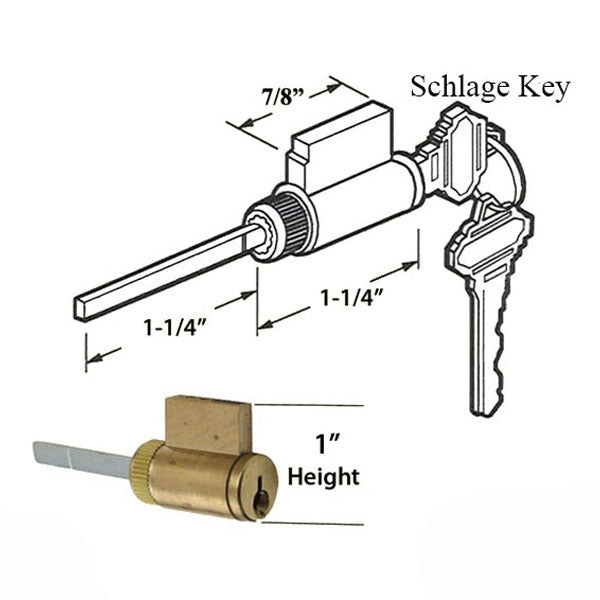

The cylinder measures 1 inch (25.4mm) in height with a 0.60-inch (15.2mm) face diameter and a 1-1/4 inch (31.8mm) tailpiece length. These precise dimensions ensure proper fitment in Pella hardware.

Technical Information

  • Cylinder Type: American with flat tail piece
  • Keyway: Schlage 5-pin, SC-1
  • Tailpiece Length: 1-1/4 inches (31.8mm)
  • Cylinder Height: 1 inch (25.4mm)
  • Cylinder Face Diameter: 0.60 inches (15.2mm)
  • Available Finishes: Brass, Nickel, Antique Brass

Notes

  • Compatible with Pella Pro Series, Designer, and Architectural Hardware
  • Fits both hinged patio doors and sliding doors
  • Will NOT work on Thermastar Vinyl Patio Doors
  • Some aftermarket cylinders have a taller cylinder height (preventing proper fit in some handlesets) and a slightly larger 0.62-inch diameter face versus the Pella 0.60-inch specification

Related Parts

  • 15031 - Replacement cylinder for Thermastar Vinyl Patio Doors

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will this cylinder work on my Thermastar Vinyl Patio Door?

No, this cylinder is not compatible with Thermastar Vinyl Patio Doors. Please see part number 15031 for the correct replacement.

What key blanks work with this cylinder?

This cylinder uses the Schlage 5-pin SC-1 keyway, so standard Schlage SC-1 key blanks will work.

Why might an aftermarket cylinder not fit my Pella handleset?

Some aftermarket cylinders have a taller height and larger face diameter (0.62 inches vs. Pella's 0.60 inches), which can prevent proper fitment in certain handlesets.
