Pella Replacement Mortise Lock – 85mm PZ, 60mm Backset

SKU:

$266.22 - $317.50

$266.22

$266.22 - $317.50

$266.22

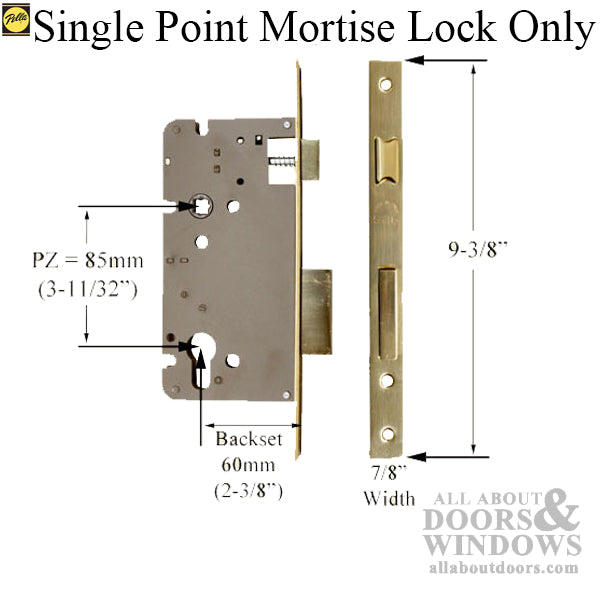

PZ (Handle Spacing): 3-11/32" (85mm) – non-standard, original Pella spec
Backset: 2-3/8" (60mm) – original Pella was 2-3/16" (55mm)
Faceplate: 7/8" x 9-3/8" (22mm x 238mm) with square corners
Compatibility: Replacement for Cifial/Pella mortise locks – NOT an exact fit
Door Modification Required: Square corner faceplate requires chiseling if original had radius corners
Trim Coverage: Pella handleset trim (1-3/4" x 9-7/8") covers most screw holes and marks
Note: May require drilling new screw holes and enlarging existing holes for handle and cylinder
Special Order: Cannot be returned or exchanged

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

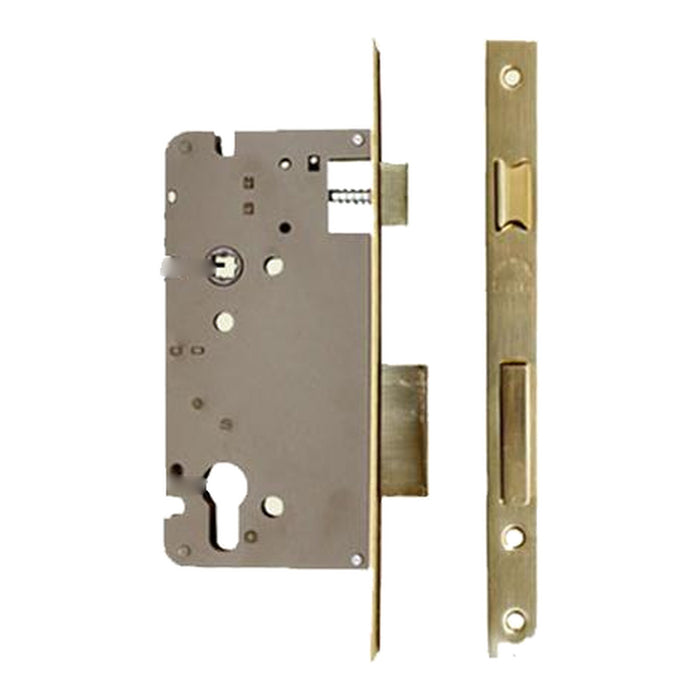

Pella Replacement Mortise Lock – 85mm PZ, 60mm Backset (40176)

This aftermarket mortise lock serves as a replacement option for Cifial and Pella single-point mortise locks. Please note that this is NOT an exact fit replacement and will require some door modification for proper installation.

The lock features a PZ (handle spacing) of 3-11/32 inches (85mm), which matches the original Pella specification rather than the standard 3-5/8 inches (92mm). The backset measures 2-3/8 inches (60mm), slightly larger than the original Pella backset of 2-3/16 inches (55mm).

Technical Information

PZ (Handle Spacing): 3-11/32 inches (85mm)
Backset: 2-3/8 inches (60mm)

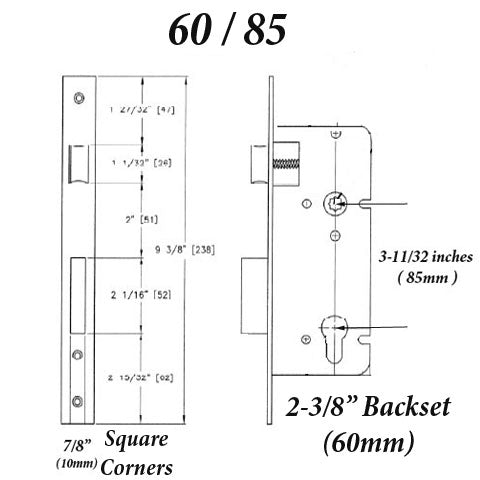

Faceplate Dimensions: 7/8 x 9-3/8 inches with square corners
Original Pella Backset: 2-3/16 inches (55mm)
Pella Trim Plate Size: 1-3/4 x 9-7/8 inches

Notes

The original Pella lock had radius (rounded) corners on the faceplate, while this replacement has square corners. You will need to chisel out small sections of the door mortise to accommodate the square corners.
Use a razor blade to scratch your measurements into the edge of the door, then chisel out those sections until the new lock fits properly.
There will be approximately a 3/16 inch wide mark visible from where the old trim was mounted compared to where the new trim mounts.
The Pella handleset trim plate (1-3/4 x 9-7/8 inches) should cover most screw holes and marks from the previous installation.
You may need to drill new screw holes and/or enlarge existing holes for the handle and cylinder.
See the installation guide for visual assistance.

Related Parts

40177 - Complete kit with handleset, cylinder, and mortise lock

Special order item – cannot be returned or exchanged.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Why does this lock require door modification?

The original Pella mortise lock had rounded (radius) corners on the faceplate, while this replacement has square corners. You will need to chisel out small sections of the door mortise to accommodate the square corner faceplate.

Will the new trim cover the old screw holes?

The Pella handleset trim plate (1-3/4 x 9-7/8 inches) should cover most screw holes and marks from the previous installation, though there may be a small 3/16 inch wide mark visible.

What is the difference between this lock's backset and the original Pella?

This replacement has a 2-3/8 inch (60mm) backset, while the original Pella lock had a 2-3/16 inch (55mm) backset. You may need to enlarge existing holes for proper fit.
