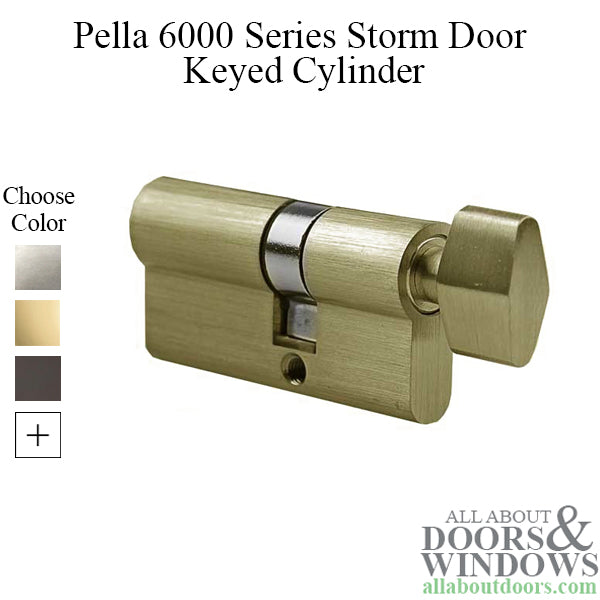

Pella 6000 Series Replacement Key Cylinder – 270° Euro, Schlage Keyway, Polished Brass

SKU:

$49.33 - $75.70

$49.33

$49.33 - $75.70

$49.33

Type: Euro Version, 270° rotation
Keyway: Schlage 5-pin SC-1

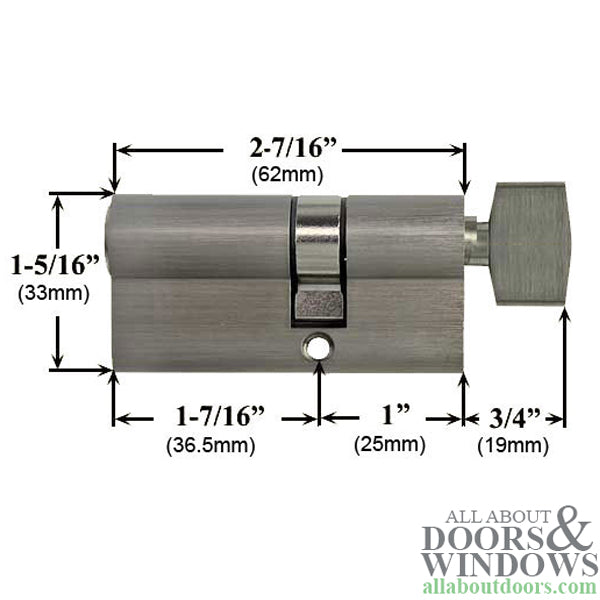

Overall Length: 2-7/16" (61.9mm) with offset cam
Height: 1-5/16" (33.3mm)
Thumbturn Projection: 3/4" (19.1mm)
Finish: Polished Brass
Designed for Pella 2-bolt lock systems
Requires smaller diameter pins – cannot be rekeyed with traditional pins
Cylinder knob/key turns 270° before cam engages

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Pella 6000 Series Key Cylinder – Polished Brass (305015)

This replacement key cylinder is designed specifically for Pella 6000 Series doors equipped with 2-bolt lock systems. The Euro-style cylinder features a 270-degree rotation, meaning the knob or key must turn 270 degrees before the cam begins to engage. This unique operation is specific to Pella's locking mechanism design.

The cylinder uses a Schlage 5-pin SC-1 keyway, providing compatibility with standard Schlage key blanks. However, please note that this cylinder cannot be rekeyed using traditional pins due to its smaller diameter pin requirement.

Technical Information

Overall Length: 2-7/16 inches (61.9mm) with offset cam
Height: 1-5/16 inches (33.3mm)
Thumbturn Projection: 3/4 inch (19.1mm)
Keyway: Schlage 5-pin SC-1
Rotation: 270 degrees
Finish: Polished Brass

Notes

This cylinder is designed specifically for the 2-bolt lock and may not work on other Pella products
Cannot be rekeyed with traditional pins – uses smaller diameter pins
Also available in Satin Nickel, Oil Rubbed Bronze, and Antique Brass finishes

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I rekey this cylinder myself?

No, this cylinder uses smaller diameter pins than standard cylinders and cannot be rekeyed with traditional pins. You would need to contact a locksmith familiar with this specific cylinder type.

What does 270-degree rotation mean?

The key or thumbturn must rotate 270 degrees before the cam begins to turn and engage the lock mechanism. This is specific to Pella's 2-bolt lock design.

Will this cylinder work with my Pella door?

This cylinder is designed specifically for Pella 6000 Series doors with 2-bolt lock systems. It may not be compatible with other Pella products or lock configurations.
