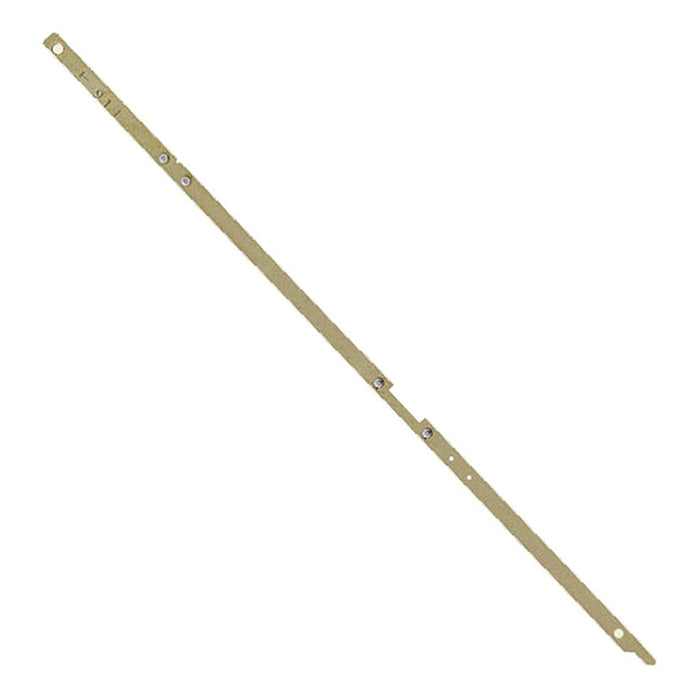

Peachtree Top Auxiliary Locking Drive Bar for 6' 8" IPD Doors – 33-3/16" Length

SKU: 37400062

$109.50 - $109.50

$109.50

$109.50 - $109.50

$109.50

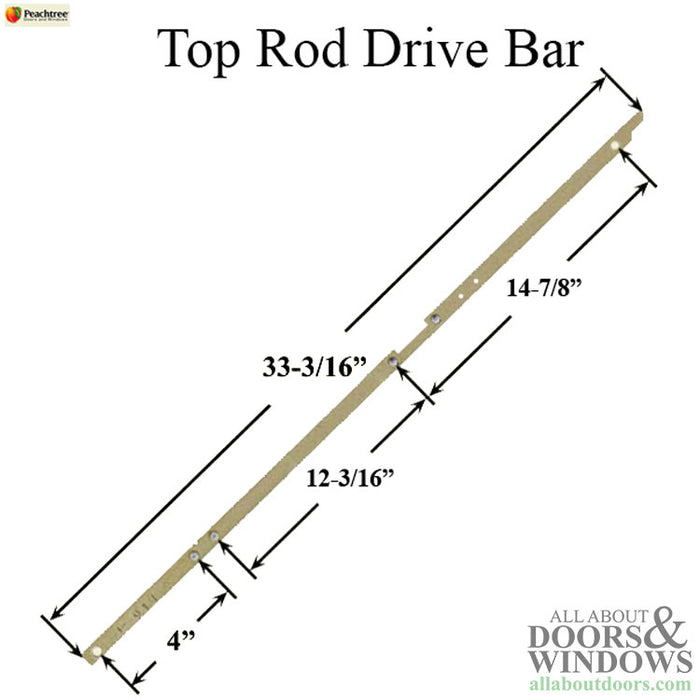

Length: 33-3/16" (843.1mm)
Door Size: Fits 6' 8" doors
Stamped: "T" stamped in metal (indicates Top bar)
Function: Connects center lock with bottom auxiliary lock
Compatibility: Old Citadel IPD French Swinging doors with steel door system
Flat drive bar activates multipoint lock latch/bolts
Same length as bottom bar but pin placement is different
Requires door removal for replacement
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Peachtree Top Auxiliary Drive Bar – 6' 8" IPD (37400062)

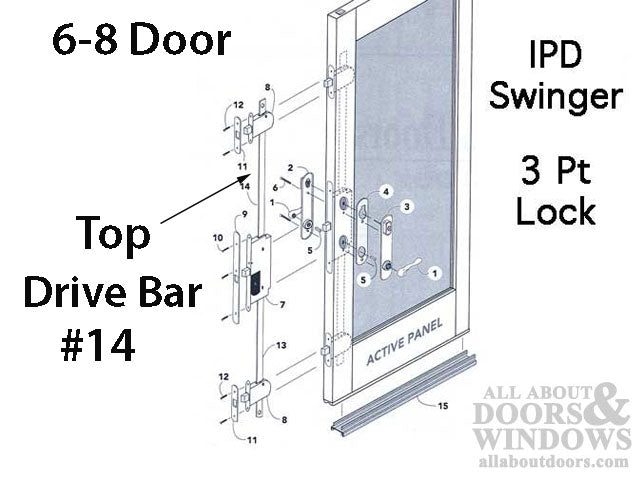

This top auxiliary locking module drive bar is designed for Peachtree's Old Citadel IPD French Swinging doors with steel door systems. The flat drive bar connects the center lock with the bottom auxiliary lock, activating the multipoint lock latch/bolts when extended.

The IPD steel door system features 3 latches that become bolts when extended. This drive bar is essential for proper operation of the top locking mechanism.

Stamped With

"T" stamped in metal (indicates this is the Top bar)

Technical Information

Length: 33-3/16 inches (843.1mm)
Door Size: 6 feet 8 inches
Position: Top auxiliary locking module
Type: Flat drive bar

Notes

Same length as the bottom drive bar, but pin placement is different
Some replacement bars may look different with a notch cut out or extra pins on both sides of the notch
The bars will be the same length and nylon pins for the top latch will be in the same place
Requires removal of door to replace

Related Parts

Bottom Auxiliary Locking Drive Bar (same length, different pin placement)

For photos and more information on installing the IPD, see our IPD Installation Guide. Additional resources include How to Repair an IPD Multi-Point Lock and How to Reverse the Panic-Release Function on a Peachtree IPD Lock.

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between the top and bottom auxiliary drive bars?

Both bars are the same length (33-3/16 inches), but the pin placement is different. The top bar is stamped with a "T" to help identify it.

Why does my replacement bar look different from the original?

Some replacement bars may have a notch cut out or extra pins on both sides of the notch. As long as the length and nylon pin placement for the top latch are the same, the bar will function correctly.

Do I need to remove the door to replace this drive bar?

Yes, door removal is required to replace the auxiliary locking drive bar.
