Peachtree Bottom Auxiliary Drive Bar for IPD French Doors – 33-3/16" Length

SKU: 37400052

$101.12 - $101.12

$101.12

$101.12 - $101.12

$101.12

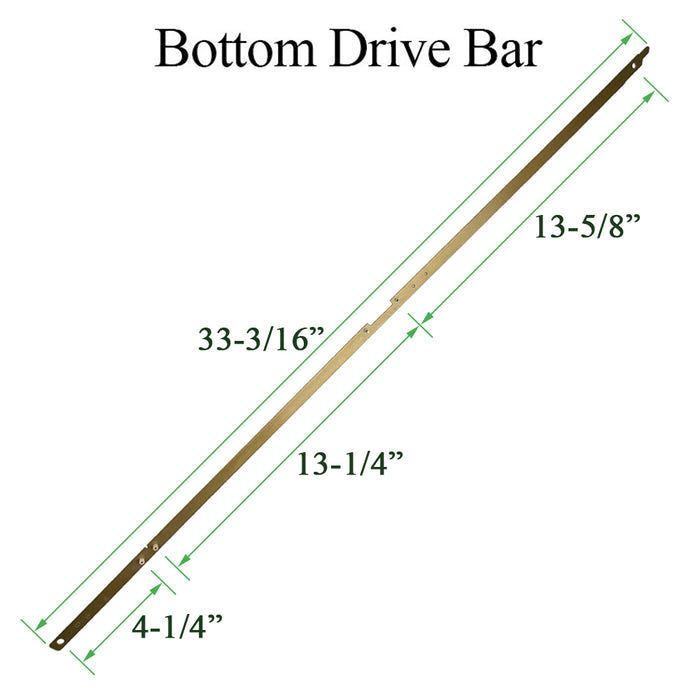

Length: 33-3/16" (843.3mm)
Fits: 6' 8" and 8' 0" tall doors
Stamped: "B" stamped in metal (indicates bottom bar)
Function: Connects center lock with bottom auxiliary lock
Compatibility: Peachtree Old Citadel IPD French Swinging doors
Note: Requires door removal to replace

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Peachtree Bottom Auxiliary Drive Bar – IPD French Door (37400052)

This bottom auxiliary locking module drive bar is designed for Peachtree Old Citadel IPD French Swinging doors. The flat drive bar connects the center lock with the bottom auxiliary lock, activating the multipoint lock latch bolts when extended.

The IPD Steel Door features 3 latches that become bolts when extended. This drive bar measures 33-3/16 inches (843.3mm) in length and fits both 6 feet 8 inches and 8 feet 0 inches tall doors.

Stamped With

"B" stamped in metal to indicate bottom bar

Technical Information

Length: 33-3/16 inches (843.3mm)
Door Heights: 6' 8" and 8' 0"
Type: Flat drive bar
Position: Bottom auxiliary

Notes

The bottom bar is the same length as the top bar, but pin placement is different
Some replacement bars may look different with a notch cut out or extra pins on both sides of the notch
Replacement bars will be the same length with nylon pins for the latch in the same place
Requires removal of door to replace
For photos and installation guidance, see the IPD Installation Guide

Related Parts

Top Auxiliary Locking Drive Bar (same length, different pin placement)
Center Multipoint Lock

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between the top and bottom drive bars?

The top and bottom bars are the same length (33-3/16 inches), but the pin placement is different. The bottom bar is stamped with a "B" in the metal to help identify it.

Why does my replacement bar look different from the original?

Some replacement bars may have a notch cut out or extra pins on both sides of the notch. The bars will be the same length and the nylon pins for the latch will be in the same position, ensuring proper function.

Do I need to remove the door to replace this drive bar?

Yes, door removal is required to replace the auxiliary locking drive bar.
