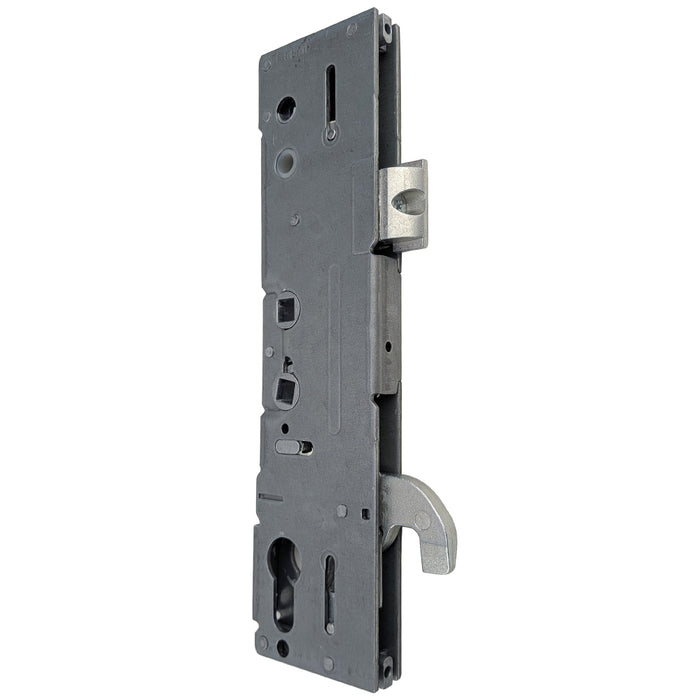

Lockmaster 304 Multipoint Lock – 45mm Backset, 92mm PZ, Stainless Steel

Lockmaster 304 Multipoint Lock – 45mm Backset, 92mm PZ, Stainless Steel

SKU: LM459262H-LC

$79.33 - $79.33
$79.33
$79.33 - $79.33
$79.33
  • PZ: 3-5/8" (92mm) and 2-7/16" (62mm)
  • Backset: 1-3/4" (45mm)
  • Faceplate Width: 5/8" (16mm)
  • Handle Height: 35-1/8" (892mm)
  • Door Panel: 94-3/4" (2406mm)
  • Spindle/Hub Diameter: 5/16" (8mm)
  • Locking Points: Three – 1 hookbolt with upper and lower shootbolts
  • Cylinder Type: Euro
  • Finish: Stainless Steel (304)
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Lockmaster 304 Multipoint Lock – 45/92, SS (LM459262H-LC)

This Lockmaster 304 multipoint lock is designed for doors with shootbolt locking systems. The "304" designation indicates a stainless steel finish, providing excellent corrosion resistance and durability for exterior door applications.

The lock features a 1-3/4 inch (45mm) backset and dual PZ measurements of 3-5/8 inches (92mm) and 2-7/16 inches (62mm), accommodating various handle configurations. With a 5/8 inch (16mm) faceplate width and 35-1/8 inch handle height, this lock is suited for door panels measuring 94-3/4 inches.

This three-point locking system includes one hookbolt along with upper and lower shootbolts for secure multi-point engagement. The lock accepts an Euro cylinder type.

Technical Information

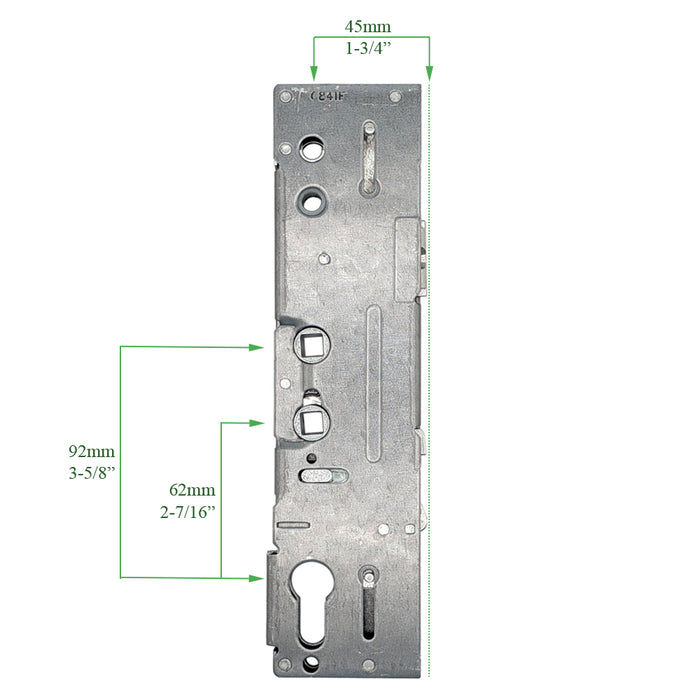

  • Backset: 1-3/4 inches (45mm)
  • PZ (Handle to Cylinder): 3-5/8 inches (92mm) and 2-7/16 inches (62mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Handle Height: 35-1/8 inches (892mm)
  • Door Panel Height: 94-3/4 inches (2406mm)
  • Spindle/Hub Diameter: 5/16 inches (8mm)
  • Locking Points: 3 (1 hookbolt, upper shootbolt, lower shootbolt)
  • Cylinder Type: Euro
  • Material: Stainless Steel (304)

Notes

  • Optional: Can be replaced with a shootbolt version or changed to 35mm backset – contact office for more information

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does the 304 designation mean on this lock?

The 304 is Lockmaster's code for stainless steel finish, indicating this lock is made from corrosion-resistant stainless steel material.

What cylinder type does this multipoint lock use?

This lock uses an euro cylinder type.

Why does this lock have two PZ measurements?

The dual PZ measurements of 92mm and 62mm allow compatibility with different handle and cylinder configurations, giving you flexibility in hardware selection.
