Hoppe HLS-ONE French Door Lock Kit for 6' 8" Doors – 45mm Backset

SKU:

$621.00 - $644.00

$621.00

$621.00 - $644.00

$621.00

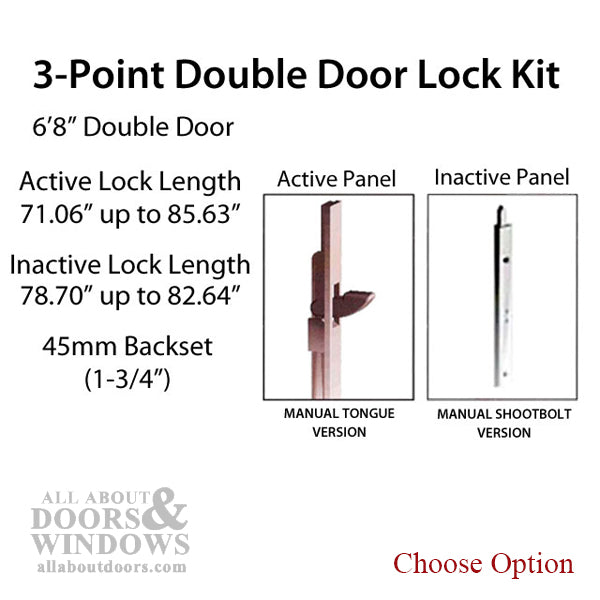

Application: Complete 3-point manual tongue system for 6' 8" (2032mm) French doors
Backset: 1-3/4" (45mm)
Faceplate Width: 5/8" (16mm)
Handle Height: 36" (914mm)
Active Panel Top Tongue Position: 29.25" (743mm)
Active Panel Bottom Tongue Position: 26.42" (671mm)
Shootbolt Throw: 20mm
Active Lock Length Range: 71.06" to 85.63" (1805mm to 2175mm)
Inactive Lock Length Range: 78.70" to 82.64" (1999mm to 2099mm)
Includes stainless steel strikes, screws, dust caps, and instruction booklet
Sold as a complete kit

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS-ONE French Door Lock Kit – 45mm, 6' 8" (3210741-KIT)

This Hoppe HLS-ONE-HLS9000 French door lock kit provides a complete 3-point manual tongue locking system for 6 feet 8 inches (80 inches) high French door pairs. The kit includes everything needed for both the active and inactive panels, making it a comprehensive solution for securing double doors.

The active panel features a 3-point manual tongue system with locking points at the handle height and two additional tongue positions. The inactive panel uses a shootbolt gear system with shootbolts located at the extreme top and bottom of the lock for secure multi-point engagement.

Technical Information

Backset: 1-3/4 inches (45mm)
Faceplate Width: 5/8 inch (16mm)
Handle Height: 36 inches (914mm)
Active Top Tongue Position: 29.25 inches (743mm)
Active Bottom Tongue Position: 26.42 inches (671mm)
Shootbolt Throw: 20mm
Active Lock Length Range: 71.06 inches to 85.63 inches
Inactive Lock Length Range: 78.70 inches to 82.64 inches

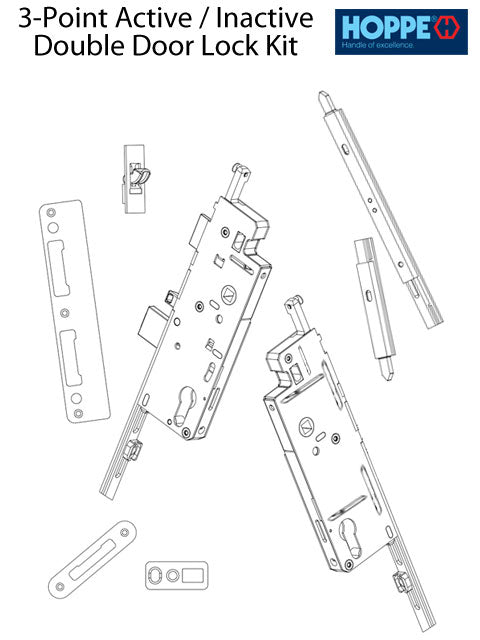

Kit Contents

1 - Top Extension with tongue position at 29.25 inches
1 - Bottom Active Gear with tongue position at 26.42 inches
1 - Latch and Deadbolt Strike Plate (Radius/Curved Lip) - Stainless Steel
2 - Stainless Steel Tongue Strike Plates with radius corners
17 - Stainless Steel Screws 1-3/8 inches
10 - Stainless Steel Screws 3/4 inch
4 - Black Dust Caps for Latch and Deadbolt with Tongue Strikes
1 - Bottom Inactive Gear with bottom shootbolt
1 - Top Shootbolt Extension
2 - Stainless Steel Shootbolt Strikes
1 - Instruction Booklet

Notes

Active and inactive gears can be rehanded - see resources for instructions
Extensions connect to gear boxes to achieve the full lock length range

Sold as a complete kit for both active and inactive panels.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What door height is this kit designed for?

This kit is designed for 6 feet 8 inches (80 inches) high French door pairs, with adjustable lock lengths to accommodate slight variations.

Can I change the handing on this lock?

Yes, Hoppe multipoint locks can be rehanded. Refer to the included instruction booklet or Hoppe's online resources for step-by-step guidance.

What is the difference between the active and inactive panels?

The active panel has the handle and 3-point tongue system for daily operation, while the inactive panel uses top and bottom shootbolts that engage when the active door is locked.
