Hoppe HLS9000 3-Point Lock Kit for 8' Double Doors – 60mm Backset

Hoppe HLS9000 3-Point Lock Kit for 8' Double Doors – 60mm Backset

SKU:

$851.00 - $874.00
$851.00
$851.00 - $874.00
$851.00

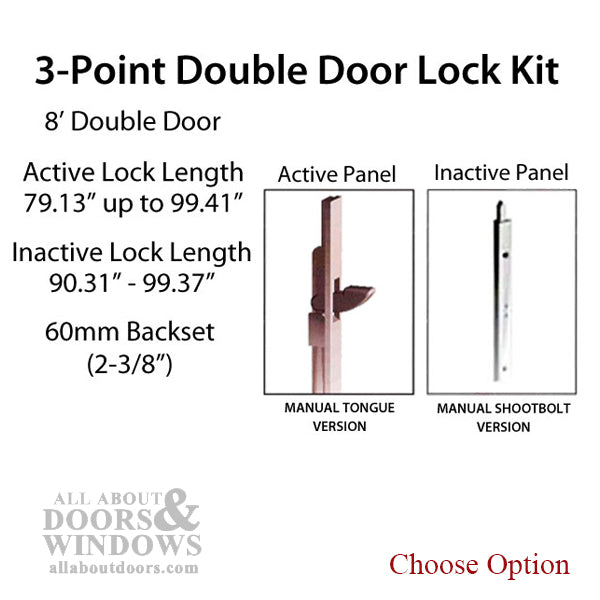

  • Application: Complete 3-point manual tongue system for 8' (2438mm) high double doors
  • Backset: 2-3/8" (60mm) for both active and inactive panels
  • Faceplate Width: 5/8" (16mm)
  • Handle Height: 36" (914mm)
  • Active Lock Range: 79.13" to 99.41" (2010mm to 2525mm) when connected
  • Inactive Lock Range: 90.31" to 99.37" (2294mm to 2524mm) when connected
  • Shootbolt Throw: 20mm
  • Finish: Stainless steel strikes and hardware
  • Includes active gear, inactive gear, top extensions, strikes, screws, dust caps, and instructions
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe HLS9000 3-Point Kit for 8' Doors (3133714-KIT)

This comprehensive Hoppe HLS-ONE-HLS9000 kit provides everything needed to outfit both the active and inactive panels of 8-foot (96 inches) high double doors with a reliable 3-point manual tongue locking system. The kit combines the active panel multipoint gear with tongue strikes and the inactive panel shootbolt gear with top extension for complete door security.

The active panel system features a 3-point lock with tongue positions at 37.20 inches and 26.42 inches from the handle center. When the gear and extensions are connected, the active lock assembly accommodates door heights ranging from 79.13 inches to 99.41 inches. The inactive panel uses a shootbolt system with bolts positioned at the extreme top and bottom of the lock, with a 20mm shootbolt throw for secure engagement.

Technical Information

  • Backset: 2-3/8 inches (60mm) for both panels
  • Faceplate Width: 5/8 inch (16mm)
  • Handle Height: 36 inches (914mm)
  • Active Top Tongue Position: 37.20 inches (943mm)
  • Active Bottom Tongue Position: 26.42 inches (671mm)
  • Active Lock Length Range: 79.13 inches to 99.41 inches (2010mm to 2525mm)
  • Inactive Lock Length Range: 90.31 inches to 99.37 inches (2294mm to 2524mm)
  • Shootbolt Throw: 20mm

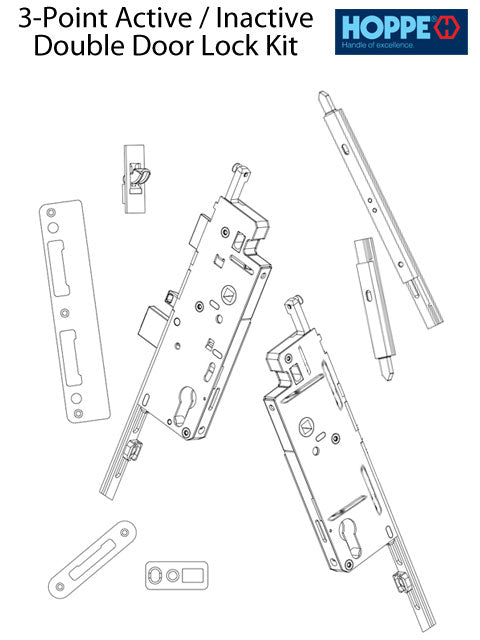

Kit Contents

  • 1 - Top Extension with tongue position at 37.20 inches
  • 1 - Bottom Active Gear with tongue position at 26.42 inches
  • 1 - Latch and Deadbolt Strike Plate (Radius/Curved Lip) - Stainless Steel
  • 17 - Stainless Steel Screws 1-3/8 inches
  • 10 - Stainless Steel Screws 3/4 inch
  • 2 - Stainless Steel Tongue Strike Plates with radius corners
  • 4 - Black Dust Caps for Latch and Deadbolt with Tongue Strikes
  • 1 - Bottom Inactive Gear with bottom shootbolt
  • 1 - Top Shootbolt Extension
  • 2 - Stainless Steel Shootbolt Strikes
  • 1 - Instruction booklet

Notes

  • Lock handing can be changed in the field
  • Mishandling device direction can also be adjusted

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I change the handing on this Hoppe multipoint lock?

Yes, the lock handing can be changed in the field. Hoppe provides instructions for reversing the handing on their multipoint locks.

What door heights does this kit accommodate?

The active lock assembly fits doors from 79.13 inches to 99.41 inches tall, while the inactive lock fits doors from 90.31 inches to 99.37 inches tall when fully assembled.

What is included for the inactive panel?

The kit includes a bottom inactive gear with shootbolt, a top shootbolt extension, and two stainless steel shootbolt strikes for the inactive panel.
