Amesbury P3000 Active 5-Point Multipoint Lock with Rhino Hooks – 60mm Backset, 92mm PZ, 82" to 95-1/2" Doors

SKU: 20-6760-32022

$414.18 - $414.18

$414.18

$414.18 - $414.18

$414.18

PZ: 3-5/8" (92mm)
Backset: 2-3/8" (60mm)
Faceplate Width: 25/32" (20mm)
Deadbolt Throw: 1" (25.4mm)
Handle Height: 36" (914.4mm)
Cylinder Type: American, Key Above Lever
Spindle Hub: 5/16" (8mm)
Lower Hook Position: 24.87" (631.7mm)
Upper Hook Position: 27.47" (697.7mm)
Door Height Range: 82" to 95-1/2"
Stamped: 32022
Top shootbolt tip (20-3467) not included
Priced and sold each

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

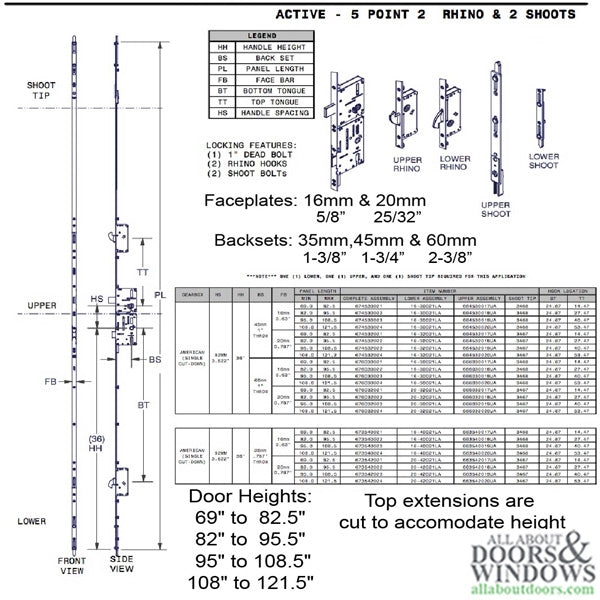

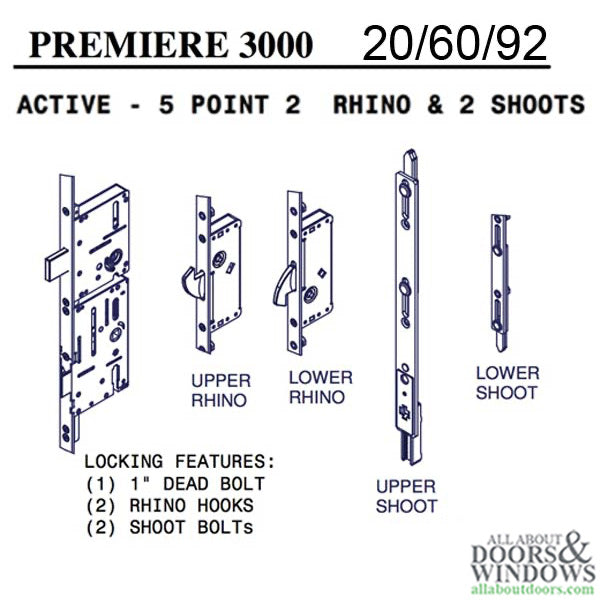

Amesbury P3000 Active 5-Point Rhino Lock – 60/92, 82"-95.5" Doors (20-6760-32022)

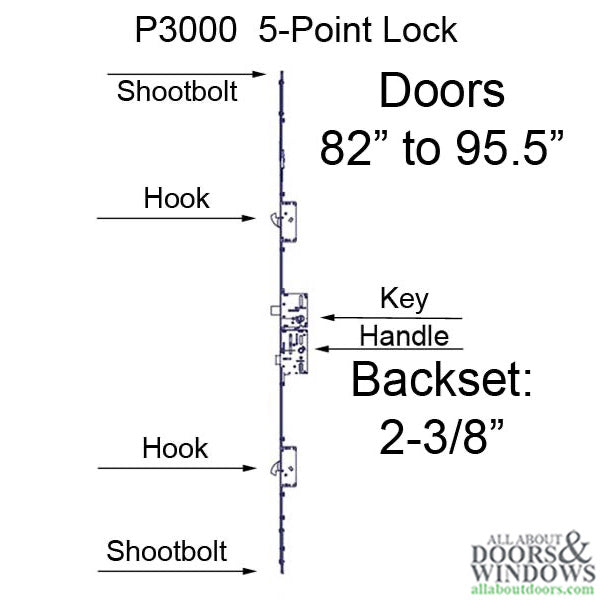

This Amesbury P3000 Active 5-Point Multipoint Lock features Rhino hooks and shootbolts for secure door engagement. Designed for doors ranging from 82 inches to 95-1/2 inches in height, this lock provides robust security with a 60mm backset and 92mm PZ spacing.

The lock uses an American cylinder with the key positioned above the lever. It includes a 1-inch deadbolt throw and a 36-inch handle height. The Rhino hook and shootbolt design can be used with or without an astragal.

How To Operate

This lock operates differently than most multipoint locks. It is deadbolt activated:

To Lock: Throw the deadbolt first, then lift the handle to engage the additional locking points
To Unlock: Retract the deadbolt, then push the lever down to open

Stamped With

32022

Technical Information

PZ (Handle to Cylinder Spacing): 3-5/8 inches (92mm)
Backset: 2-3/8 inches (60mm)
Faceplate Width: 25/32 inches (20mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height: 36 inches (914.4mm)
Spindle Hub: 5/16 inches (8mm)

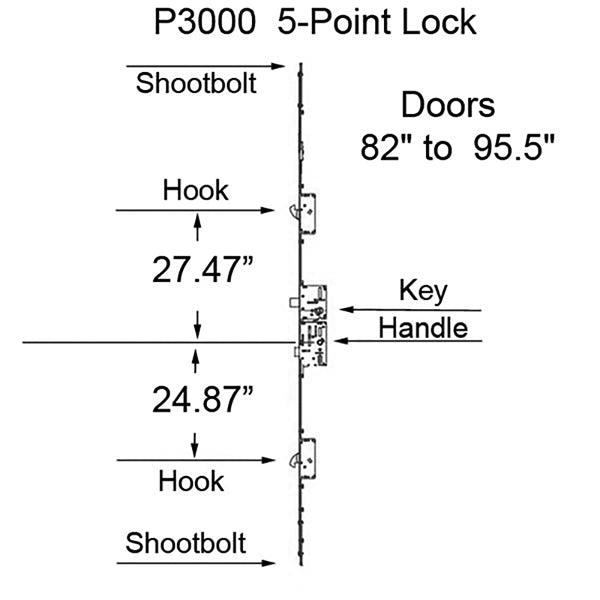

Lower Hook Position: 24.87 inches (631.7mm)
Upper Hook Position: 27.47 inches (697.7mm)
Door Height Range: 82 inches to 95-1/2 inches
Cylinder Type: American, Key Above Lever

Notes

Top shootbolt tip (20-3467) is not included with this lock
Lower Assembly Only: 20-32021LA
Upper Assembly Only: 666032018UA
Tongue versions are used with astragals

Related Parts

20-3467 - Shootbolt Tip
3475-82 - Latch and Deadbolt Strike Plate
676032021 - 20mm Active 5-point hook, 60/92 for 69.0" - 82.5" doors
20-6760-32023 - 20mm Active 5-point hook, 60/92 for 95.0" - 108.5" doors
676032024 - 20mm Active 5-point hook, 60/92 for 108.0" - 121.5" doors
656032013 - 20mm Passive 60/92 for 69.0" - 82.5" doors
20-6560-32014 - 20mm Passive 60/92 for 82.0" - 95.5" doors
20-6560-32015 - 20mm Passive 60/92 for 95.0" - 108.5" doors
656032016 - 20mm Passive 60/92 for 108.0" - 121.5" doors

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I operate this P3000 multipoint lock?

This lock is deadbolt activated. To lock, throw the deadbolt first, then lift the handle to engage the hooks and shootbolts. To unlock, retract the deadbolt, then push the lever down to open.

Is the shootbolt tip included with this lock?

No, the top shootbolt tip (part 20-3467) is sold separately and not included with this lock assembly.

Can this lock be used without an astragal?

Yes, the Rhino hook and shootbolt design can be used with or without an astragal. Tongue versions are specifically designed for use with astragals.
