American Cylinder Flat Tail Piece – 1-1/16" Length

American Cylinder Flat Tail Piece – 1-1/16" Length

SKU: 14280

$1.95 - $1.95
$1.95
$1.95 - $1.95
$1.95
  • Application: American keyed cylinders with flat tail piece
  • Overall Length: 1-1/16" (27mm)
  • Door Thickness: Up to 1-5/8" (41mm)
  • Break Away Score Marks: 5 marks at 1/8" increments for thinner doors
  • Cylinder cap screws off for easy replacement
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

American Cylinder Flat Tail Piece (14280)

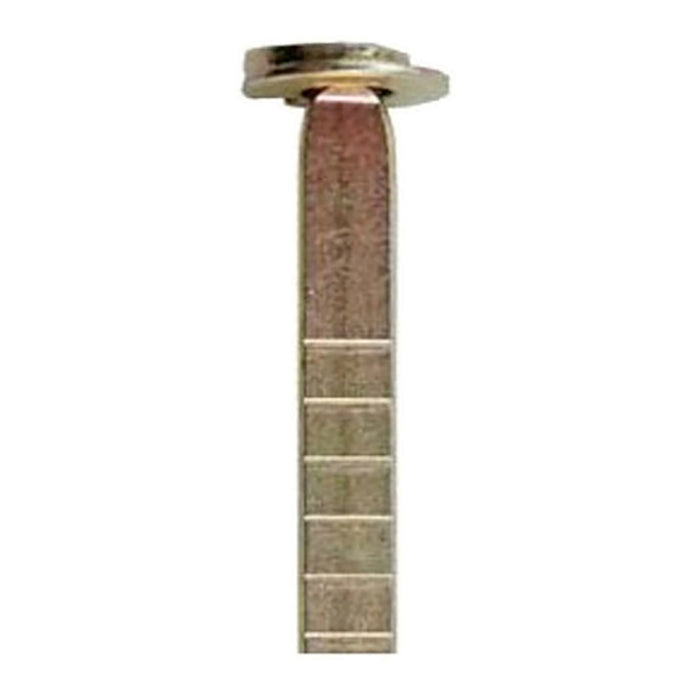

This replacement tail piece is designed for American style keyed cylinders with a flat tail piece configuration. The tail piece connects to the back of the cylinder, extends through the slot in the bolt or mortise case, and engages with the interior thumb turn, creating the mechanical connection between the key and thumb turn.

The tail piece features 5 break away score marks at 1/8 inch increments, allowing you to customize the length for thinner doors up to 1-5/8 inches thick. The overall length measures 1-1/16 inches (27mm).

Technical Information

  • Overall Length: 1-1/16 inches (27mm)
  • Door Thickness Range: Up to 1-5/8 inches (41mm)
  • Break Away Increments: 5 score marks at 1/8 inch spacing
  • Tail Piece Style: Flat

Notes

  • Cylinder cap screws off for easy replacement
  • Cylinder has a spring loaded pin that must be depressed to unscrew cap
  • Be careful not to lose the spring or pin during replacement
  • If key turns hard after installation, the cap is too tight
  • If key will not come out, the cap is too loose
  • After tightening cap fully, back off 2 notches for proper operation

Priced and sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I install this tail piece?

Depress the spring loaded pin on the cylinder and unscrew the cap. Replace the existing tail piece with the new one, then reinstall the cap. After tightening fully, back off 2 notches for proper operation.

How do I adjust the tail piece for thinner doors?

The tail piece has 5 break away score marks at 1/8 inch increments. Simply snap off sections at the score marks to achieve the correct length for your door thickness.

Why is my key hard to turn after installing the tail piece?

If the key turns hard, the cylinder cap is too tight. Loosen it slightly. If the key won't come out, the cap is too loose and needs to be tightened.
