Neuma Active Keyed Handle Set – 133mm PZ

Neuma Active Keyed Handle Set – 133mm PZ

SKU:

$489.50 - $624.00
$489.50
$489.50 - $624.00
$489.50
  • PZ (Handle to Cylinder): 5-1/4" (133mm)
  • Escutcheon Plate Width: 1-7/8" (48mm)
  • Escutcheon Plate Height: 10-1/4" (260mm)
  • Screw Holes: 3 holes at 8-7/8" (225mm) top to bottom, 4-7/16" (113mm) between
  • Cylinder Type: American (Schlage 5-pin SC1 keyway)
  • Cylinder Retainer Pin: Located at 7:00 position
  • Application: Active keyed handle set trim for hinged patio doors
  • Compatible Door Heights: 6' 8", 6' 11", 7' 6", 8' 0" (inswing and outswing)
  • Available Finishes: White, Dark Bronze, Satin Nickel, Lifetime Satin Nickel (PVD), Gold Brass, Lifetime Brass
  • Designed for Taiwanese-made multipoint locks on fiberglass doors
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Neuma Active Keyed Handle Set – 5-1/4" PZ (395091)

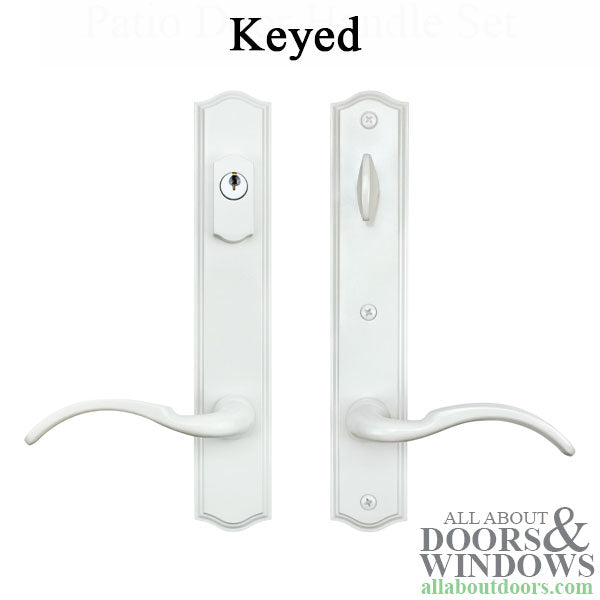

This Neuma active keyed handle set trim features a unique hinged patio door design with a 5-1/4 inch (133mm) handle to thumbturn spacing (PZ measurement). It is specifically designed for use with Taiwanese-made multipoint locks commonly found on fiberglass doors throughout the Southeast United States, from Florida through Texas.

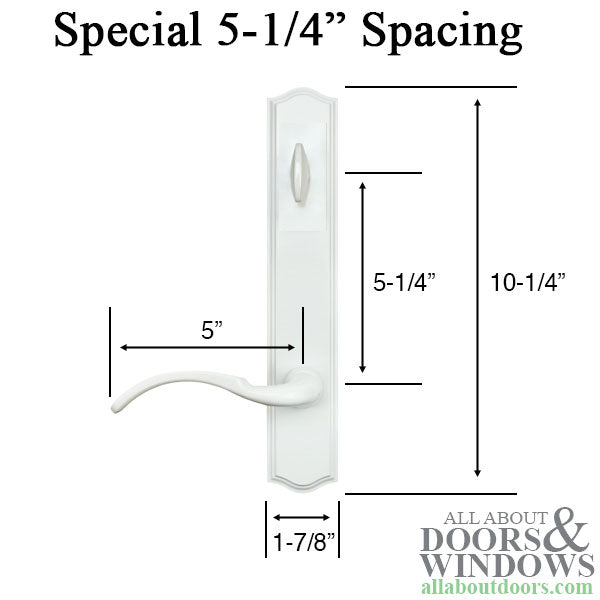

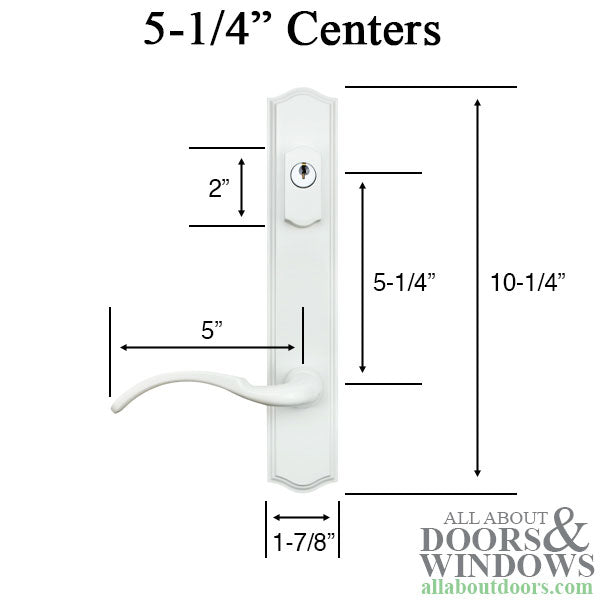

The escutcheon plate measures 1-7/8 inches (48mm) wide by 10-1/4 inches (260mm) tall, providing a substantial and secure mounting surface. The trim includes three screw holes positioned 8-7/8 inches (225mm) from top to bottom, with 4-7/16 inches (113mm) between holes for secure installation.

This handle set uses an American cylinder with a Schlage 5-pin SC1 keyway, making rekeying convenient with widely available key blanks. The cylinder retainer pin is located at the 7:00 position for proper orientation during installation.

Technical Information

  • PZ (Handle to Cylinder): 5-1/4 inches (133mm)
  • Escutcheon Plate Width: 1-7/8 inches (48mm)
  • Escutcheon Plate Height: 10-1/4 inches (260mm)
  • Screw Hole Spacing: 8-7/8 inches (225mm) top to bottom, 4-7/16 inches (113mm) between
  • Cylinder Type: American (Schlage 5-pin SC1)
  • Cylinder Retainer Pin Position: 7:00

Notes

  • Compatible door heights: 6' 8", 6' 11", 7' 6", and 8' 0"
  • Works with both inswing and outswing door configurations
  • Direct Taiwanese import designed for fiberglass doors
  • Available finishes: White, Dark Bronze, Satin Nickel, Lifetime Satin Nickel (PVD), Gold Brass, Lifetime Brass

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ measurement mean?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This handle set has a 5-1/4 inch (133mm) PZ measurement.

What cylinder type does this handle set use?

This handle set uses an American cylinder with a Schlage 5-pin SC1 keyway, which is widely available and easy to rekey.

Will this work with my fiberglass patio door?

This handle set is designed for Taiwanese-made multipoint locks commonly found on fiberglass doors in the Southeast US region. Verify your door's PZ measurement is 5-1/4 inches before ordering.
