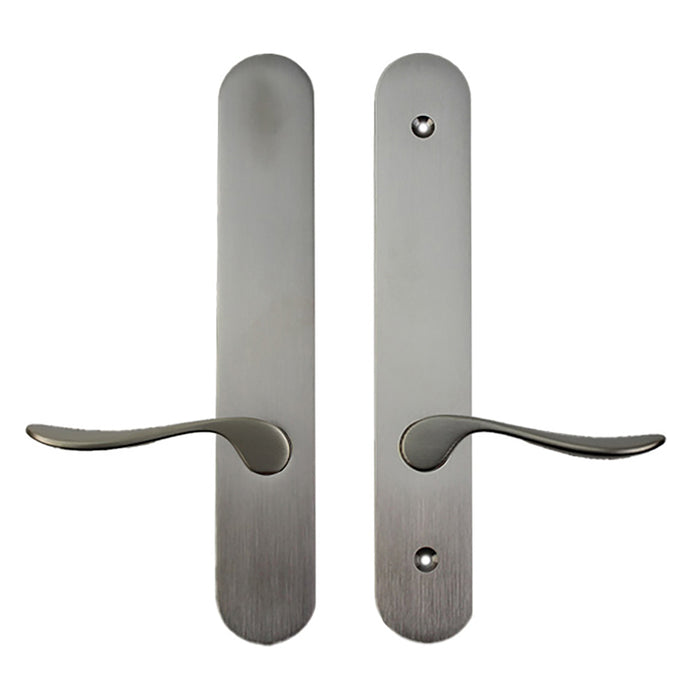

Marvin Inactive/Dummy Trim for Passive Door – PVD Satin Nickel

SKU: 10830422

$536.60 - $536.60

$536.60

$536.60 - $536.60

$536.60

Function: Inactive/Dummy trim for passive doors
Finish: PVD Satin Nickel (high performance, no tarnish)
Back-plate Length: 10-1/8" (257mm)
Back-plate Width: 1-7/8" (47.6mm)

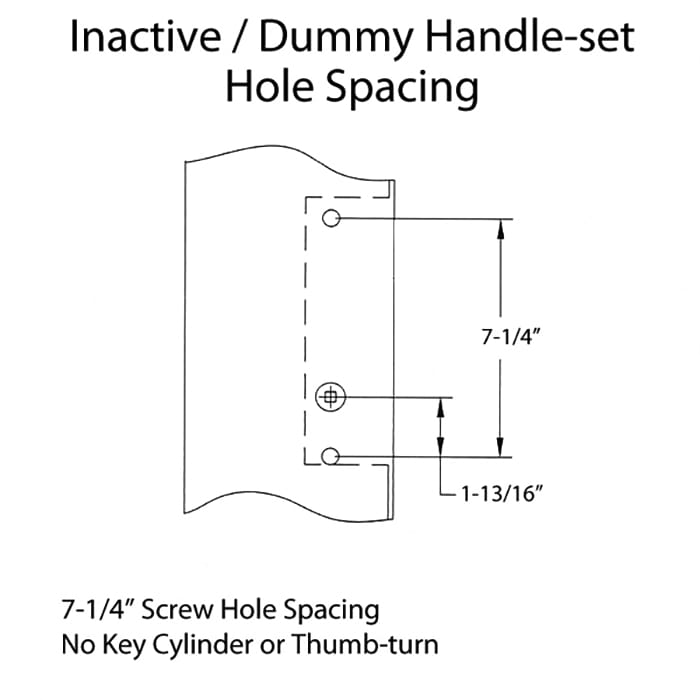

Screw Hole Spacing: 7-1/4" (184.2mm)

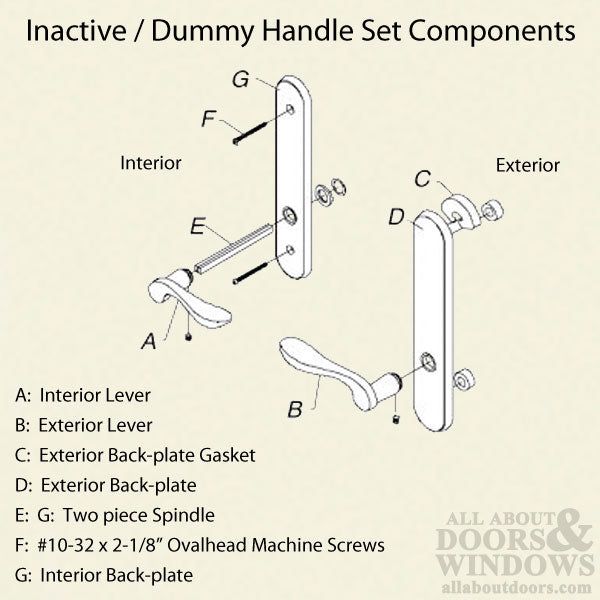

Spindle: 5/16" (7.9mm) square, 4-5/16" (109.5mm) length
Construction Material: Brass
Levers move to operate inactive lock; can be converted to dummy with included fixing plate
Used by Marvin, fits other doors with same configuration
Priced and sold as a package

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Marvin Inactive/Dummy Trim – PVD Satin Nickel (10830422)

This Marvin inactive/dummy trim is designed for passive doors and features a high-performance PVD Satin Nickel finish that resists tarnishing. The solid brass construction ensures durability and long-lasting performance.

In the inactive configuration, the levers move freely to operate an inactive lock without a thumb turn. When a dummy function is needed, the included fixing plate converts the levers to a fixed, non-moving position. This versatility makes it suitable for various passive door applications.

While manufactured for Marvin doors, this trim will fit other doors with the same configuration and mounting specifications.

Technical Information

Back-plate Length: 10-1/8 inches (257mm)
Back-plate Width: 1-7/8 inches (47.6mm)
Screw Hole Spacing: 7-1/4 inches (184.2mm)
Spindle Size: 5/16 inch (7.9mm) square
Spindle Length: 4-5/16 inches (109.5mm)
Construction Material: Brass
Finish: PVD Satin Nickel (high performance, no tarnish)

Notes

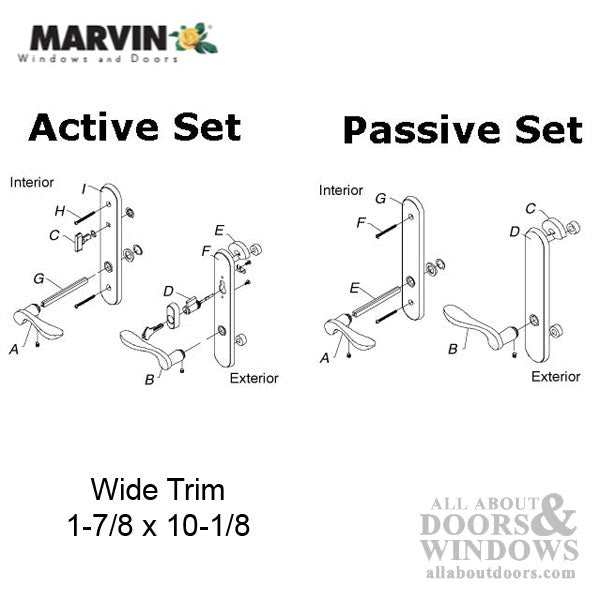

Inactive function: Levers move to operate an inactive lock, no thumb turn
Dummy function: Levers are fixed and cannot operate lock (conversion plate included)

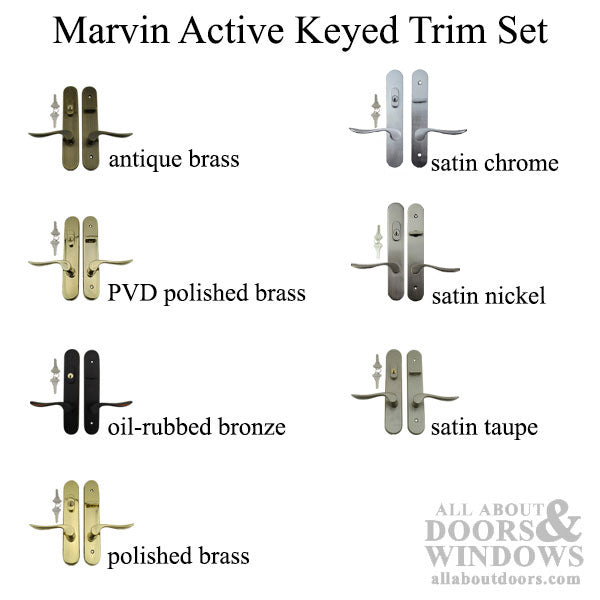

Active function also available separately: Keyed on exterior, thumb turn on interior

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between inactive and dummy function?

In inactive mode, the levers move freely to operate an inactive lock. In dummy mode, the levers are fixed in place and cannot move. This trim includes a fixing plate to convert from inactive to dummy function.

Will this trim fit doors other than Marvin?

Yes, while designed for Marvin doors, this trim will fit other doors with matching screw hole spacing of 7-1/4 inches and compatible spindle requirements.

What does PVD finish mean?

PVD (Physical Vapor Deposition) is a high-performance coating process that creates a durable, tarnish-resistant finish that maintains its appearance over time.
