Marvin Dummy Trim for Hinged Patio Door – Dark Bronze

SKU: 10830328

$235.46 - $235.46

$235.46

$235.46 - $235.46

$235.46

Function: Dummy/Inactive trim for hinged passive patio doors
Back-plate Length: 10-1/8" (257mm)
Back-plate Width: 1-7/8" (47.6mm)

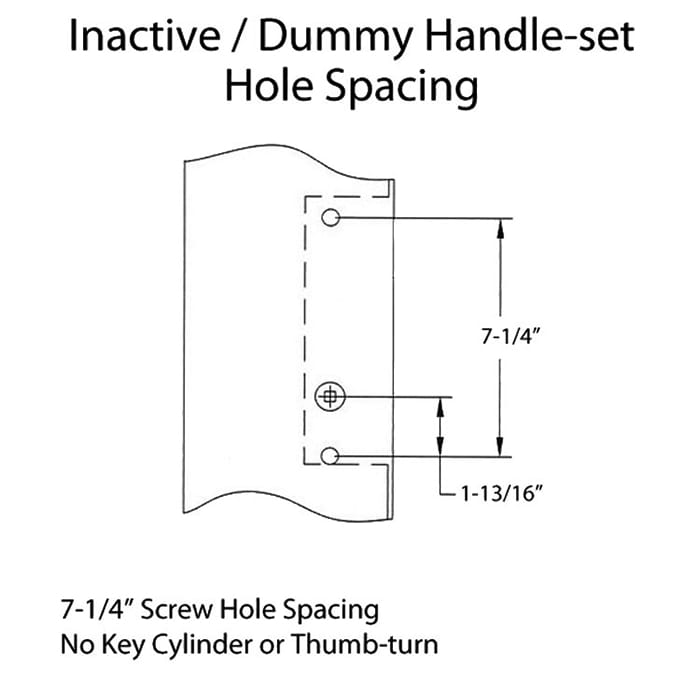

Screw Hole Spacing: 7-1/4" (184mm)
Spindle: 5/16" square, 4-5/16" (109.5mm) length
Color: Dark Bronze
Material: Brass construction
Includes fixing plate to convert inactive to dummy function
Compatible with Marvin and other doors with same configuration
Priced and sold each

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Marvin Dummy Trim – Dark Bronze (10830328)

This Marvin inactive or dummy trim is designed for hinged passive patio doors. Manufactured with solid brass construction and finished in dark bronze, this trim provides a durable and attractive solution for non-operating door panels.

The trim features a back-plate measuring 10-1/8 inches (257mm) in length and 1-7/8 inches (47.6mm) in width, with screw hole spacing of 7-1/4 inches (184mm). The 5/16-inch square spindle extends 4-5/16 inches (109.5mm) in length.

While designed for Marvin doors, this trim will fit other doors with the same configuration. The package includes a fixing plate that allows you to convert the inactive function to dummy function when required. In dummy mode, the levers are fixed and do not move, meaning they cannot operate a lock.

Technical Information

Back-plate Length: 10-1/8 inches (257mm)
Back-plate Width: 1-7/8 inches (47.6mm)
Screw Hole Spacing: 7-1/4 inches (184mm)
Spindle Size: 5/16 inch square
Spindle Length: 4-5/16 inches (109.5mm)
Material: Brass
Finish: Dark Bronze

Notes

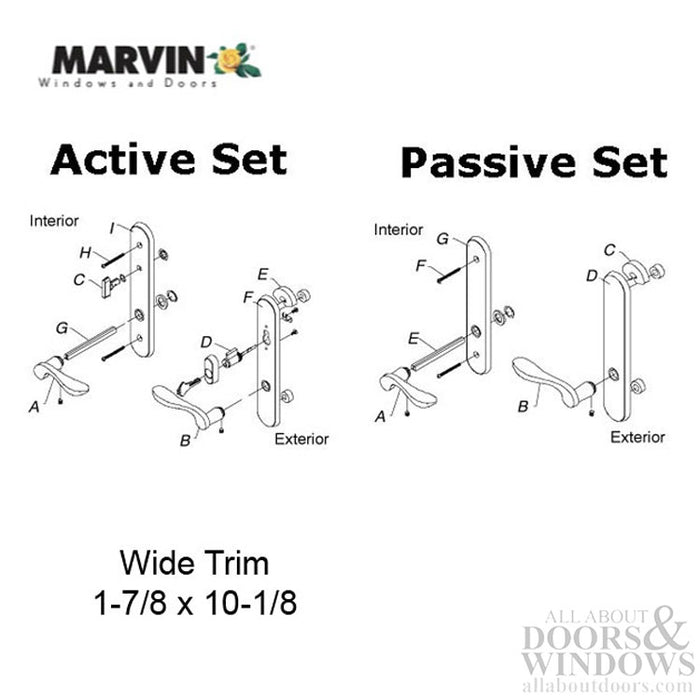

Available functions include Active (keyed exterior, thumb turn interior), Inactive (levers move to operate inactive lock, no thumb turn), and Dummy (fixed levers)
Fixing plate included to convert inactive to dummy function
Compatible with Marvin and other doors with matching configuration

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between inactive and dummy function?

Inactive trim has levers that move and can operate an inactive lock but has no thumb turn. Dummy trim has fixed levers that do not move and cannot operate any lock. This trim includes a fixing plate to convert from inactive to dummy.

Will this trim fit doors other than Marvin?

Yes, this trim will fit other doors that have the same configuration with 7-1/4 inch screw hole spacing and compatible spindle requirements.

What spindle size does this trim use?

This trim uses a 5/16-inch square spindle that is 4-5/16 inches in length.
