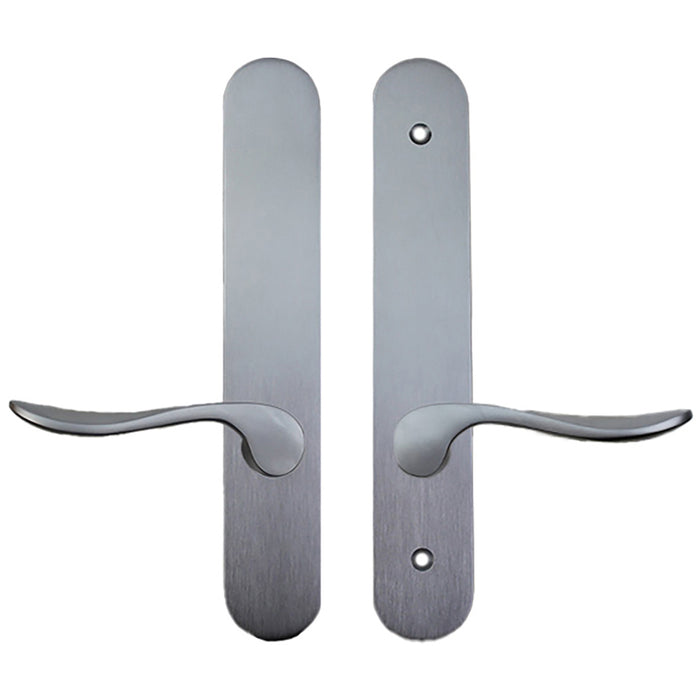

Marvin Dummy Trim for Hinged Passive Patio Door – Satin Chrome

SKU: 10830320

$487.18 - $487.18

$487.18

$487.18 - $487.18

$487.18

Function: Dummy trim (levers are fixed and do not move)
Back-plate Length: 10-1/8" (257mm)
Back-plate Width: 1-7/8" (47.6mm)

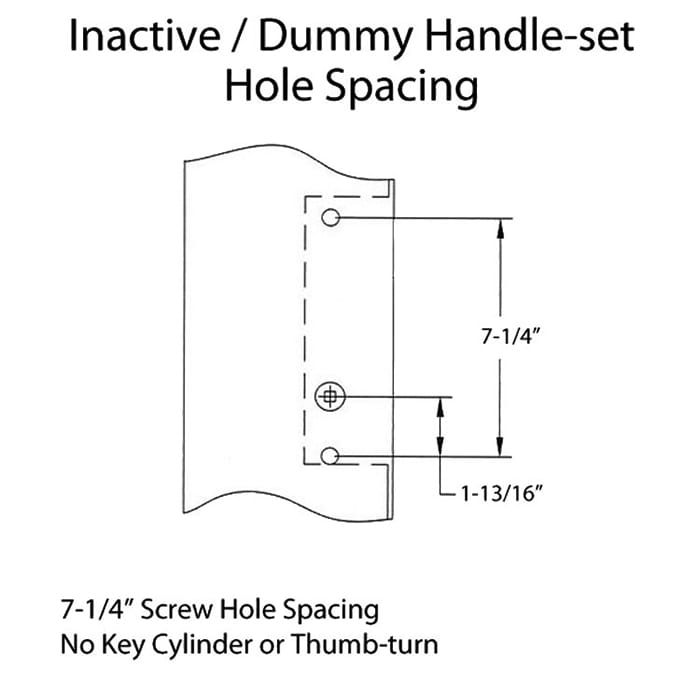

Screw Hole Spacing: 7-1/4" (184.2mm)
Spindle: 5/16" (7.9mm) square, 4-5/16" (109.5mm) length
Finish: Satin Chrome
Material: Zinc
Used by Marvin, fits other doors with same configuration

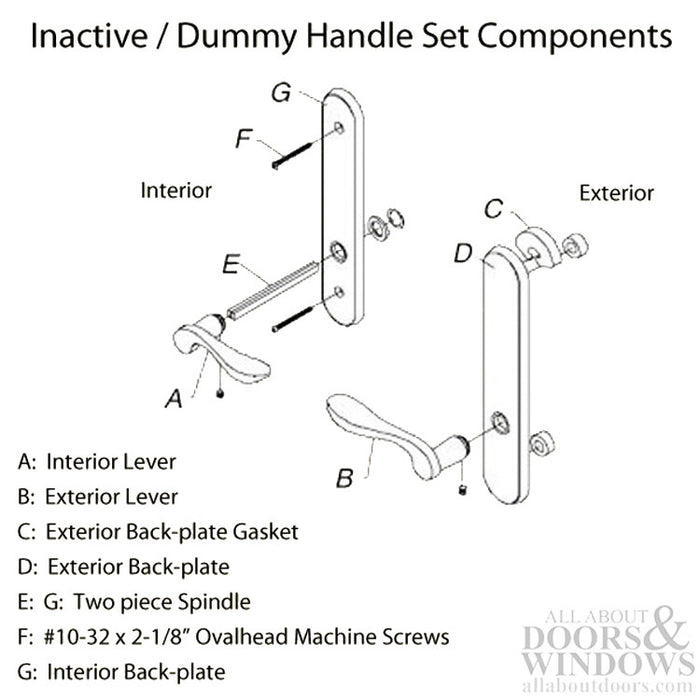

Includes fixing plate to convert inactive to dummy
Priced and sold as a package

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Marvin Dummy Trim – Hinged Passive Patio Door, Satin Chrome (10830320)

This Marvin inactive/dummy trim is designed for hinged passive patio doors. While manufactured for Marvin doors, it will fit other doors with the same configuration and mounting dimensions.

The dummy function means the levers are fixed in place and do not move—they cannot operate a lock mechanism. This is ideal for passive door panels where a matching aesthetic is needed without functional operation. The package includes a fixing plate that converts the inactive trim to dummy configuration.

Technical Information

Back-plate Length: 10-1/8 inches (257mm)
Back-plate Width: 1-7/8 inches (47.6mm)
Screw Hole Spacing: 7-1/4 inches (184.2mm)
Spindle Size: 5/16 inch square
Spindle Length: 4-5/16 inches (109.5mm)
Construction Material: Zinc
Finish: Satin Chrome

Notes

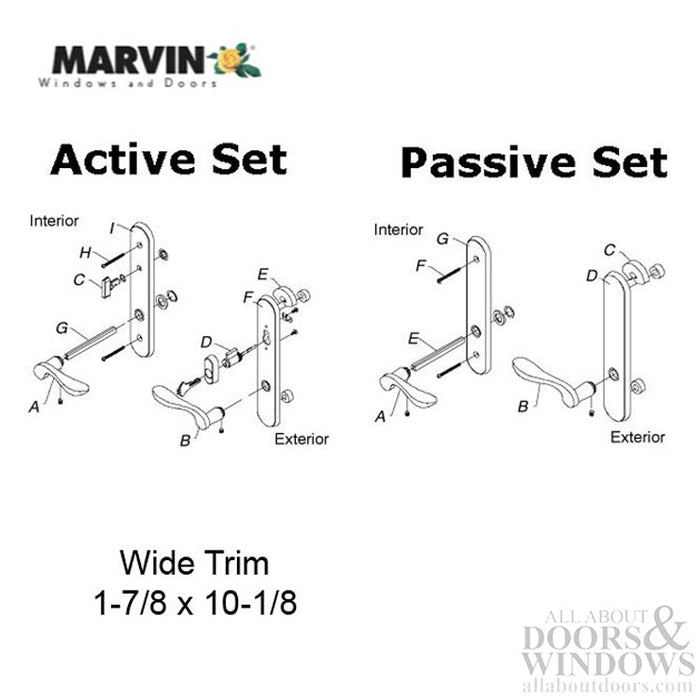

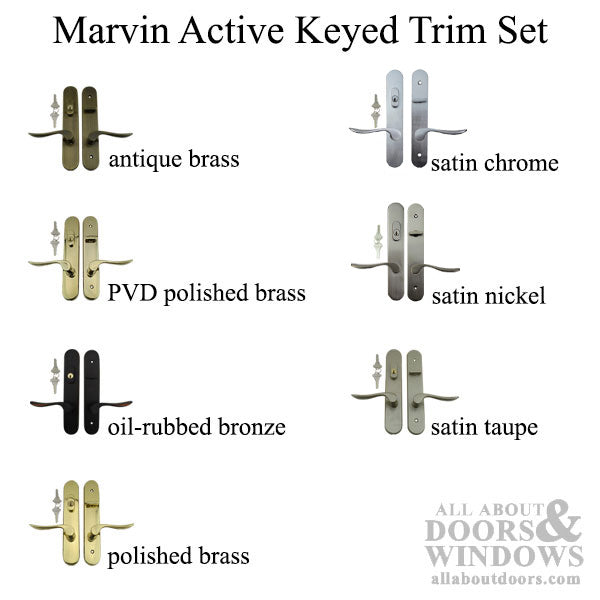

Available functions in this trim series include Active (keyed exterior, thumb turn interior), Inactive (levers move to operate inactive lock, no thumb turn), and Dummy (fixed levers)
Fixing plate included to convert inactive to dummy function
Compatible with doors matching the specified mounting dimensions

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between inactive and dummy trim?

Inactive trim has levers that move and can operate an inactive lock, while dummy trim has fixed levers that do not move and cannot operate any lock mechanism.

Will this trim fit doors other than Marvin?

Yes, this trim will fit other doors that match the same configuration and mounting dimensions, including the 7-1/4 inch screw hole spacing.

What is included in the package?

The package includes the dummy trim assembly and a fixing plate used to convert inactive trim to dummy function.
