Marvin Dummy Trim for Hinged Passive Patio Door – Satin Taupe

SKU: 10830318

$250.64 - $250.64

$250.64

$250.64 - $250.64

$250.64

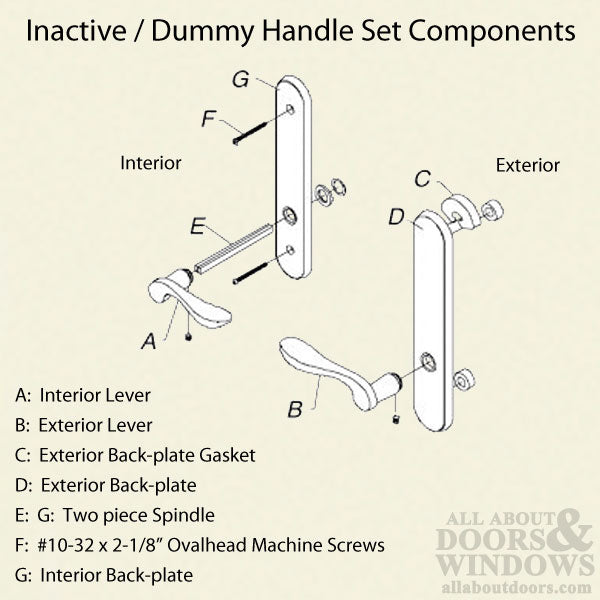

Function: Dummy trim (levers are fixed and do not operate lock)
Back-plate Length: 10-1/8" (257mm)
Back-plate Width: 1-7/8" (47.6mm)

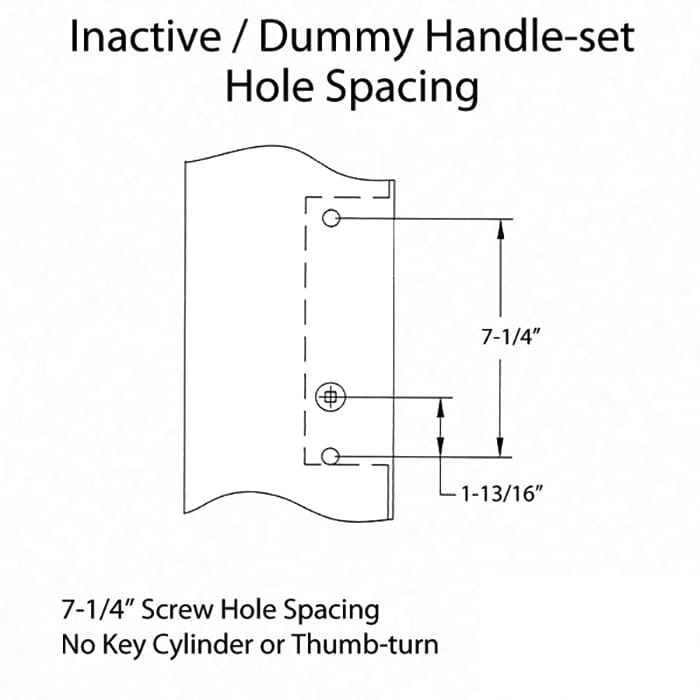

Screw Hole Spacing: 7-1/4" (184mm)
Spindle: 5/16" (8mm) square, 4-5/16" (109.5mm) length
Construction Material: Zinc
Color: Satin Taupe
Includes fixing plate to convert inactive to dummy function
Compatible with Marvin hinged passive patio doors and other doors with matching configuration
Priced and sold as a package

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Marvin Dummy Trim – Satin Taupe (10830318)

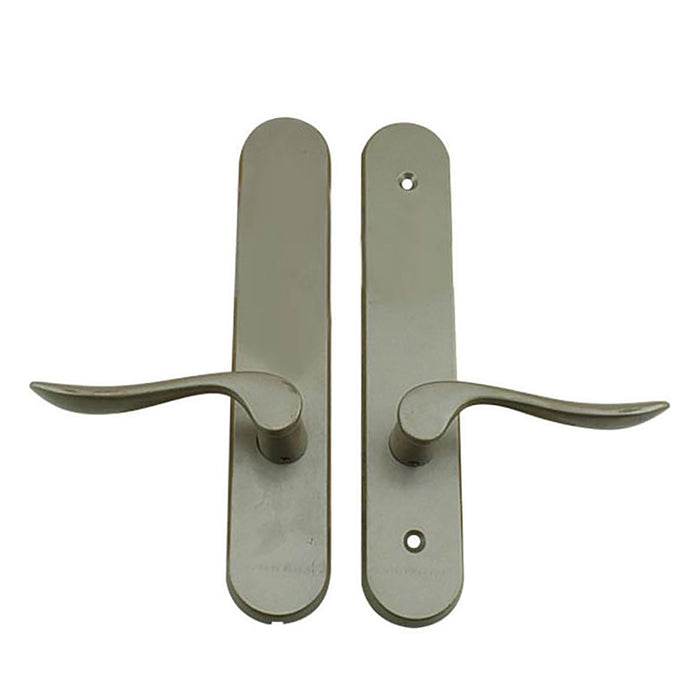

This Marvin inactive or dummy trim is designed for hinged passive patio doors. While manufactured for Marvin doors, it will also fit other doors with the same configuration and measurements.

The dummy function means the levers are fixed in place and do not move or operate a lock mechanism. This makes it ideal for passive door panels where no locking function is needed, but a matching handle appearance is desired.

Technical Information

Back-plate Length: 10-1/8 inches (257mm)
Back-plate Width: 1-7/8 inches (47.6mm)
Screw Hole Spacing: 7-1/4 inches (184mm)
Spindle Size: 5/16 inch (8mm) square
Spindle Length: 4-5/16 inches (109.5mm)
Construction Material: Zinc
Color/Finish: Satin Taupe

Notes

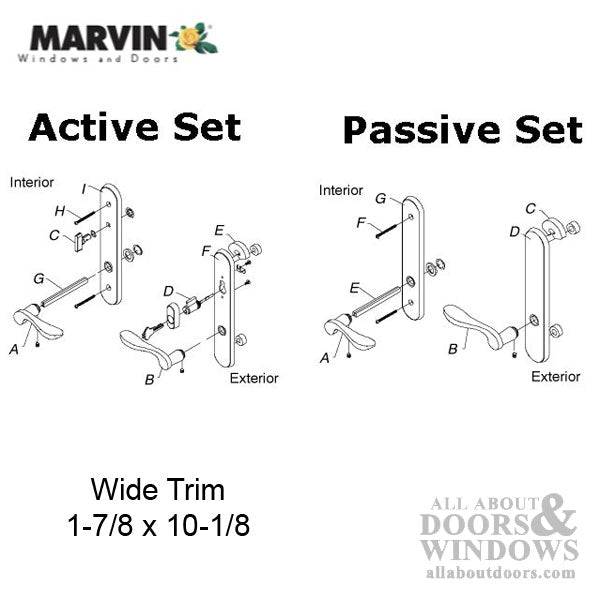

Available functions include Active (keyed exterior, thumb turn interior), Inactive (levers move to operate inactive lock, no thumb turn), and Dummy (fixed levers)
The inactive function can be converted to dummy by adding the included fixing plate to the levers
Fixing plate is included with the package

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between inactive and dummy trim?

Inactive trim has levers that move and can operate an inactive lock, while dummy trim has fixed levers that do not move at all. This package includes a fixing plate to convert inactive to dummy function.

Will this trim fit doors other than Marvin?

Yes, this trim will fit other doors that have the same configuration, including matching back-plate dimensions (10-1/8 inches by 1-7/8 inches) and screw hole spacing (7-1/4 inches).

What spindle size does this trim use?

This trim uses a 5/16 inch square spindle with a length of 4-5/16 inches.
