Marvin Inactive/Dummy Trim for Hinged Passive Patio Door – White

SKU: 10830316

$198.01 - $198.01

$198.01

$198.01 - $198.01

$198.01

Function: Inactive/Dummy trim for hinged passive patio doors
Back-plate Length: 10-1/8" (257mm)
Back-plate Width: 1-7/8" (48mm)

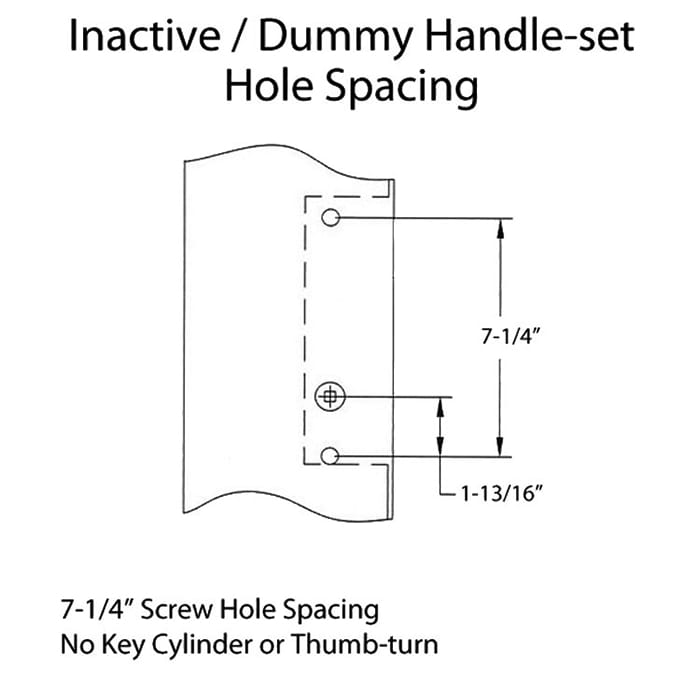

Screw Hole Spacing: 7-1/4" (184mm)
Spindle: 5/16" square, 4-5/16" (110mm) length
Material: Zinc
Color: White
Converts from inactive to dummy with included fixing plate
Priced and sold as a package

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Marvin Inactive/Dummy Patio Door Trim – White (10830316)

This Marvin inactive or dummy trim is designed for hinged passive patio doors. While manufactured for Marvin doors, it will fit other doors with the same configuration and mounting dimensions.

The trim features a zinc construction for durability and comes in a white finish. The back-plate measures 10-1/8 inches (257mm) in length and 1-7/8 inches (48mm) in width, with screw hole spacing of 7-1/4 inches (184mm). The 5/16-inch square spindle has a length of 4-5/16 inches (110mm).

Technical Information

Back-plate Length: 10-1/8 inches (257mm)
Back-plate Width: 1-7/8 inches (48mm)
Screw Hole Spacing: 7-1/4 inches (184mm)
Spindle Size: 5/16 inch square
Spindle Length: 4-5/16 inches (110mm)
Material: Zinc
Color: White

Notes

Used by Marvin but compatible with other doors sharing the same configuration

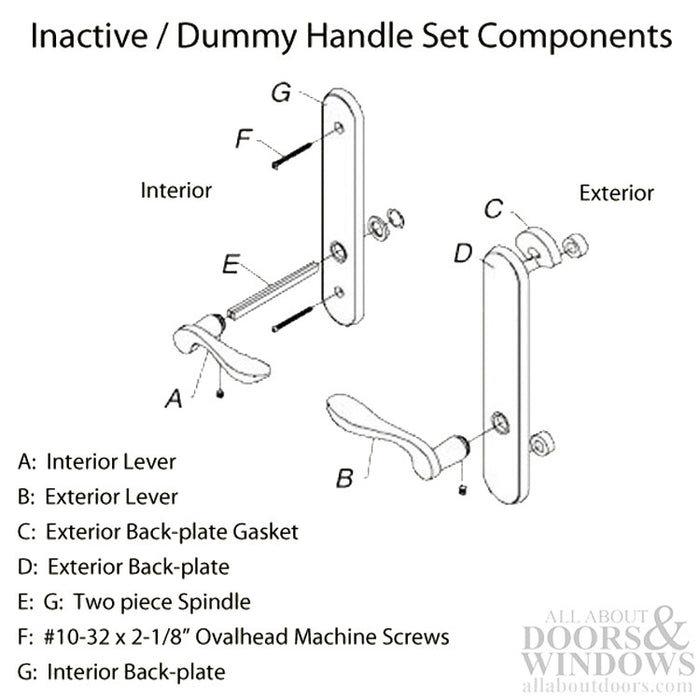

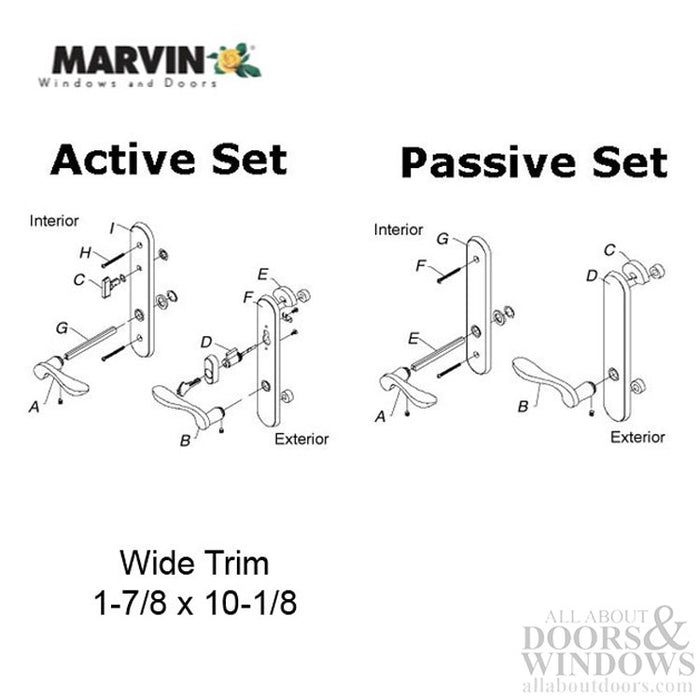

Available in three functions: Active (keyed exterior, thumb turn interior), Inactive (levers operate inactive lock, no thumb turn), and Dummy (fixed levers)
Inactive function converts to dummy by adding the included fixing plate to levers

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between inactive and dummy function?

Inactive trim has levers that move and can operate an inactive lock but has no thumb turn. Dummy trim has fixed levers that do not move and cannot operate a lock. This package includes a fixing plate to convert inactive to dummy when needed.

Will this trim fit doors other than Marvin?

Yes, while designed for Marvin hinged passive patio doors, this trim will fit other doors with the same configuration and mounting dimensions including 7-1/4 inch screw hole spacing.
