Marvin Active Door Trim with Schlage Keyway – Polished Chrome

SKU: 10830308

$457.36 - $457.36

$457.36

$457.36 - $457.36

$457.36

Keyway: Schlage SC-1, 5-pin (Kwikset/Weiser available at additional charge)

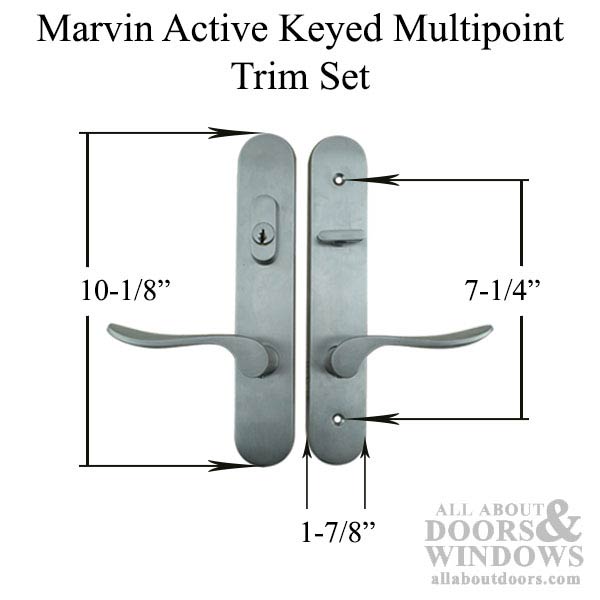

Back-plate Length: 10-1/8" (257mm)
Back-plate Width: 1-7/8" (47.6mm)

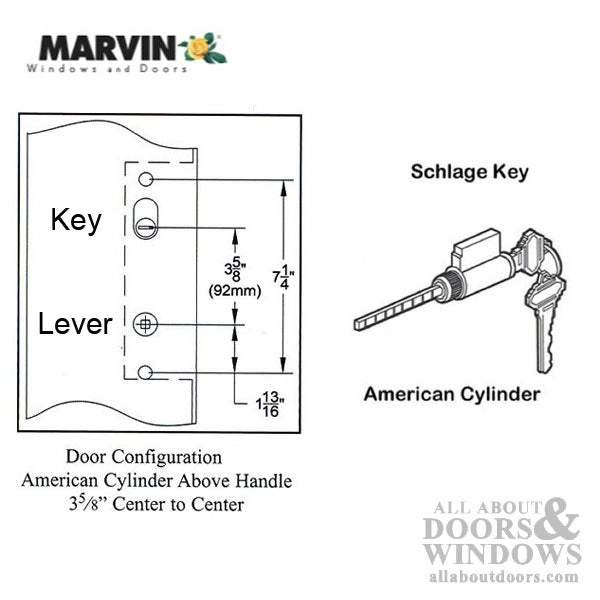

Screw Hole Spacing: 7-1/4" (184mm)
Square Spindle: 5/16" x 4-5/16" (7.9mm x 109.5mm)
Door Thickness: 1-3/4" (44.5mm)
Plate Design: Radius
Construction: Solid Brass
Finish: Polished Chrome
Handing: Non-Handed
Compatible with Marvin UIFD, UOFD, and UAFD doors
Priced and sold as a package

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Marvin Active Door Trim – Schlage Keyed, Polished Chrome (10830308)

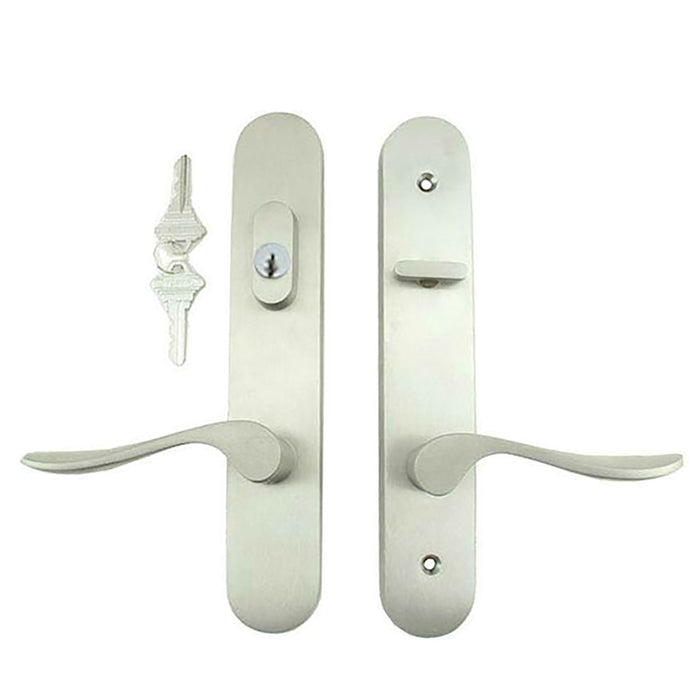

This Marvin active door trim handle assembly features a keyed cylinder with Schlage SC-1, 5-pin keyway. Designed for use with Marvin UIFD, UOFD, and UAFD doors, this trim will also fit other doors with the same configuration and measurements.

The handle assembly is constructed from solid brass with a polished chrome finish, providing both durability and an attractive appearance. The non-handed design allows for installation on either left or right-hand doors without modification.

Technical Information

Back-plate Length: 10-1/8 inches (257mm)
Back-plate Width: 1-7/8 inches (47.6mm)
Screw Hole Spacing: 7-1/4 inches (184mm)
Square Spindle: 5/16 inches x 4-5/16 inches (7.9mm x 109.5mm)
Door Thickness: 1-3/4 inches (44.5mm)
Plate Design: Radius
Construction Material: Solid Brass
Finish: Polished Chrome
Handing: Non-Handed
Keyway: Schlage SC-1, 5-pin

Notes

Optional Kwikset/Weiser keyway available at an additional charge
Compatible with Marvin UIFD, UOFD, and UAFD door models
Will fit other doors with matching configuration

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I get this trim with a different keyway?

Yes, an optional Kwikset/Weiser keyway is available at an additional charge. Contact us for details.

Will this trim work on doors other than Marvin?

Yes, while designed for Marvin UIFD, UOFD, and UAFD doors, this trim will fit other doors with matching screw hole spacing (7-1/4 inches) and door thickness (1-3/4 inches).

Is this trim handed?

No, this is a non-handed design that can be installed on either left or right-hand doors.
