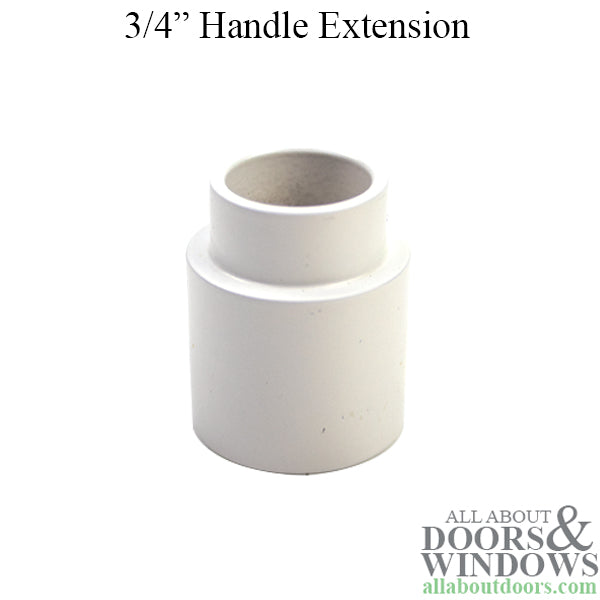

Hoppe Handle Extension – 3/4" Extension, White

SKU: 638185

$47.42 - $47.42

$47.42

$47.42 - $47.42

$47.42

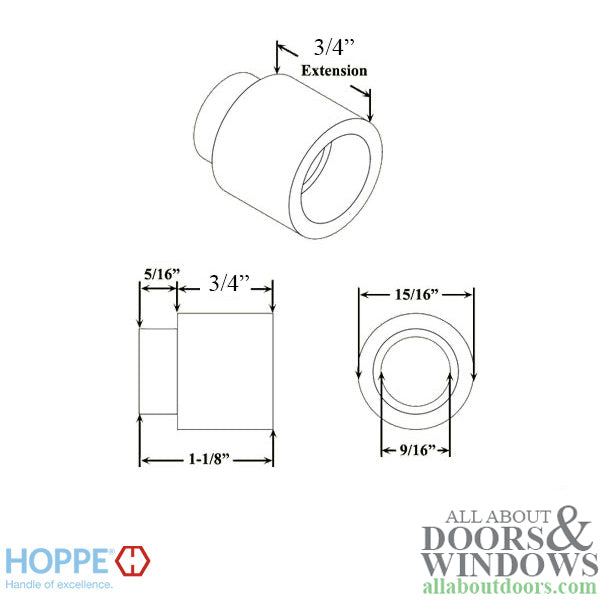

Overall Length: 1-1/16" (27mm)
Extension to Handle Length: 3/4" (20mm)
Outer Diameter: 15/16" (24mm) with 11/16" (17mm) thin and wide section
Inner Diameter: 9/16" (14mm)
Spindle Diameter: 5/16" (8mm)
Color: White
Application: Active handles that move up and down (not for dummy handles)
Note: Adding this extension requires a longer spindle
Priced and sold each

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Handle Extension – White (638185)

This Hoppe handle extension is designed for active or inactive/passive door handles that move up and down. It provides additional reach between the handle and the door mechanism. This extension is not compatible with dummy handles.

The extension measures 1-1/16 inches (27mm) in overall length with a 3/4 inch (20mm) extension length to the handle. The outer diameter is 15/16 inches (24mm) with a thin and wide section measuring 11/16 inches (17mm). The inner diameter is 9/16 inches (14mm) and accepts a 5/16 inch (8mm) spindle.

Technical Information

Overall Length: 1-1/16 inches (27mm)
Extension to Handle Length: 3/4 inches (20mm)
Outer Diameter: 15/16 inches (24mm)
Inner Diameter: 9/16 inches (14mm)
Spindle Diameter: 5/16 inches (8mm)
Color: White

Notes

When adding a 3/4 inch extension, a longer spindle is required to connect the levers
Standard spindle for a 1-3/4 inch door is 4-7/16 inches (120mm)
If adding 1 extension, a 5-1/2 inch (140mm) spindle is needed (517589)
If adding 2 extensions, a 6-1/4 inch (160mm) spindle is needed (519200)
Longer custom extensions and spindles are available as special order

Related Parts

517589 - 5-1/2 inch (140mm) spindle for use with 1 extension
519200 - 6-1/4 inch (160mm) spindle for use with 2 extensions

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will this extension work with dummy handles?

No, this extension is designed only for active or inactive/passive handles that move up and down. It will not work with dummy handles.

Do I need additional parts when installing this extension?

Yes, adding this extension requires a longer spindle. For one extension, use a 5-1/2 inch (140mm) spindle (517589). For two extensions, use a 6-1/4 inch (160mm) spindle (519200).

What spindle diameter does this extension accept?

This extension accepts a standard 5/16 inch (8mm) spindle diameter.
