Hoppe 5-Point Multipoint Lock Kit with Rollers and Shootbolts – 45mm Backset, 92mm PZ

SKU: 4991175-KIT

$295.00 - $295.00

$295.00

$295.00 - $295.00

$295.00

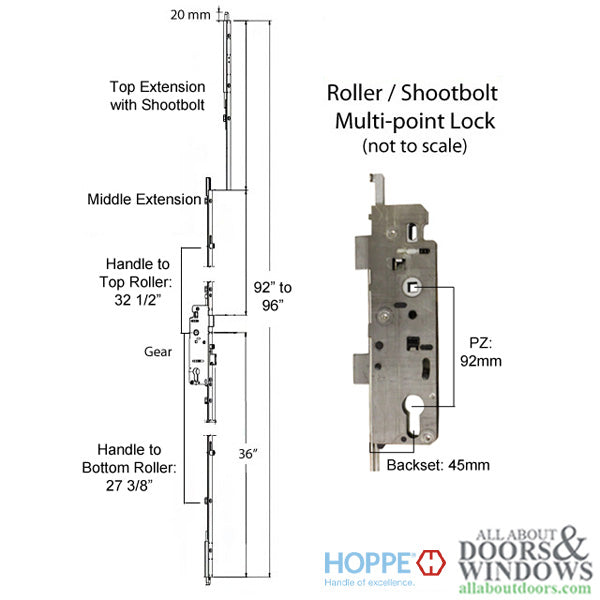

PZ: 92mm
Backset: 45mm (1-3/4")
Faceplate Width: 16mm (5/8")
Handle Height: 36" (914.4mm)
Bottom Roller Location: 27-3/8" (695.3mm) from handle
Top Roller Location: 32-1/2" (825.5mm) from handle
Fits Door Panels: 92" to 96" (2336.8mm to 2438.4mm) tall
5-point multipoint lock with rollers and shootbolts
4-part kit includes bottom gear/lockbox, middle extension, top shootbolt extension, and screws
Top shootbolt extension can be trimmed to minimum door panel height
Existing stock is limited; special order items may take longer to ship

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe 5-Point Multipoint Lock Kit – 45/92 (4991175-KIT)

This Hoppe 5-point multipoint lock kit is designed as a direct replacement for the Winkhaus 5-point lock (part 499117599). It features both rollers and shootbolts for secure multi-point locking on hinged patio doors.

This complete 4-part kit includes the bottom gear and lockbox, middle extension, top shootbolt extension, and all necessary screws. The top shootbolt extension can be trimmed to accommodate your minimum door panel height, providing flexibility during installation.

Technical Information

PZ (Cylinder to Handle Center): 92mm
Backset: 45mm (1-3/4 inches)
Faceplate Width: 16mm (5/8 inches)
Handle Height: 36 inches (914.4mm)
Bottom Roller Location: 27-3/8 inches (695.3mm) from handle
Top Roller Location: 32-1/2 inches (825.5mm) from handle
Fits Door Panel Heights: 92 to 96 inches (2336.8mm to 2438.4mm)
Locking Points: 5-point (rollers and shootbolts)

Notes

If you are replacing a Winkhaus 5-point lock in a Weathershield door and the PZ, backset, handle height, or faceplate width do not match this replacement, please contact us
The bottom and top roller locations will most likely differ from your current lock measurements, and that is okay
Existing stock is limited; these are special order and may take longer to ship

Replaces / Replaced by

Winkhaus 5-point lock (part 499117599)

Compatibility

Weathershield hinged patio doors made prior to March 2002
ProShield hinged patio doors made prior to August 2004
Visions hinged patio doors made prior to February 2004

Additional Resources

Priced and sold as a complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What doors is this multipoint lock compatible with?

This lock is designed for Weathershield hinged patio doors made prior to March 2002, ProShield hinged patio doors made prior to August 2004, and Visions hinged patio doors made prior to February 2004.

Can the top extension be trimmed to fit my door?

Yes, the top shootbolt extension can be trimmed to accommodate your minimum door panel height. This kit fits door panels between 92 and 96 inches tall.

What if my current lock measurements don't match exactly?

The bottom and top roller locations will most likely differ from your current lock, and that is okay. However, if the PZ, backset, handle height, or faceplate width don't match, please contact us before ordering.
