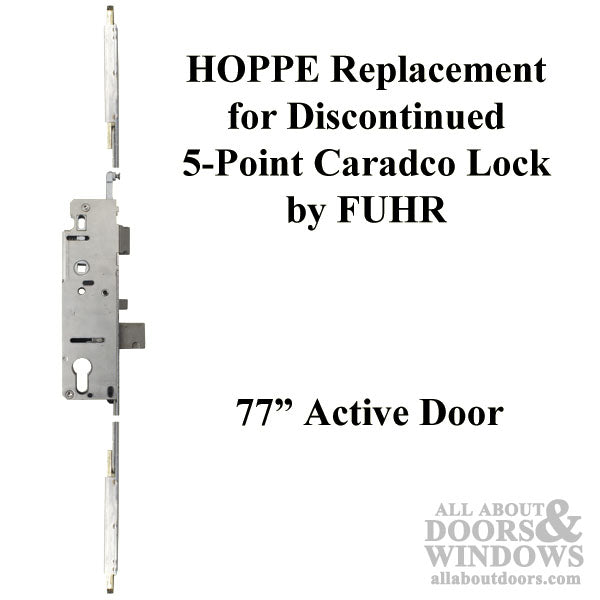

Hoppe Caradco Multipoint Lock Replacement Kit for 77" Active Doors – 35mm Backset, 92mm PZ

SKU: 4990236-KIT

$314.42 - $314.42

$314.42

$314.42 - $314.42

$314.42

Backset: 35mm (1-3/8")
PZ: 92mm (3-5/8")
Handle Height: Adjustable 33-37" (838-940mm), trim to 35-1/2" (902mm) for Caradco
Full Lock Length: Adjustable, trim to fit 77" door
Kit Includes: Gear box, top shootbolt tip (shorter), bottom shootbolt tip (longer), middle extension
Replaces 5-point FUHR lock in Caradco doors with rollers and shootbolts
Replacement lock has shootbolts but no rollers
For 77" active Caradco doors only

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Caradco 77" Replacement Lock Kit (4990236-KIT)

This Hoppe multipoint lock kit is designed to replace the 5-point FUHR lock found in 77-inch active Caradco doors. The original FUHR lock features both rollers and shootbolts, while this replacement lock includes shootbolts only without rollers.

The kit provides all the components needed for a complete lock replacement, including the gear box, top shootbolt tip (shorter), bottom shootbolt tip (longer), and middle extension. The handle height is adjustable from 33 to 37 inches, though for proper Caradco replacement, the lock must be trimmed so the handle sits at 35-1/2 inches from the bottom of the door.

Technical Information

Backset: 35mm (1-3/8 inches)
PZ: 92mm (3-5/8 inches)
Handle Height: Adjustable 33-37 inches, trim to 35-1/2 inches for Caradco
Full Lock Length: Adjustable, requires trimming for 77-inch door
Door Application: 77-inch active Caradco doors

Notes

Trim approximately 2-1/4 inches off the bottom shootbolt so the handle sits at 35-1/2 inches when connected to the gear box
Trim approximately 3 inches off the top shootbolt so the full lock fits in a 77-inch door
CAUTION: Lock will be hot after trimming. Do not use an electric saw as the lock will discolor and can warp
Make sure to install the correct shootbolt tip on the correct end (shorter tip on top, longer tip on bottom)
A full installation guide is available

Replaces / Replaced by

Replaces 5-point FUHR lock in Caradco 77-inch active doors

Related Parts

4990237 - Active 93" Caradco Replacement Lock
4990238 - Inactive 77" Caradco Replacement Lock

Priced and sold as a complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between this replacement lock and the original FUHR lock?

The original FUHR lock has both rollers and shootbolts, while this Hoppe replacement lock includes shootbolts only without rollers.

How much do I need to trim the shootbolts for a 77-inch Caradco door?

Trim approximately 2-1/4 inches off the bottom shootbolt and approximately 3 inches off the top shootbolt. This positions the handle at 35-1/2 inches and allows the lock to fit the 77-inch door.

Can I use an electric saw to trim the lock components?

No, do not use an electric saw. The lock will become hot during cutting, which can cause discoloration and warping. Use a hand saw or other non-powered cutting tool.
