Shootbolt Multipoint Lock Replacement Kit for Active Doors – 45mm Backset, 92mm PZ, Stainless Steel

Shootbolt Multipoint Lock Replacement Kit for Active Doors – 45mm Backset, 92mm PZ, Stainless Steel

SKU: 4990232-KIT

$265.00 - $265.00
$265.00
$265.00 - $265.00
$265.00
  • PZ (Handle Spacing): 92mm (3-5/8")
  • Backset: 45mm (1-3/4")
  • Handle Height: 35" (889mm)
  • Faceplate Width: 16mm (5/8")
  • Overall Length: 78-1/2" to 82-1/2" (1994mm to 2096mm)
  • Finish: Stainless Steel
  • 3-point shootbolt multipoint lock with 2 shootbolts and 1 deadbolt
  • Replaces discontinued old style Hoppe shootbolt multipoint locks for active doors
  • Kit Includes: Gear/lock-body, middle extension, top shootbolt extension, cover plate, stainless steel screws
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Shootbolt Multipoint Lock Replacement Kit – 45/92, SS (4990232-KIT)

This 3-point shootbolt multipoint lock replacement kit is designed to replace discontinued old style Hoppe shootbolt multipoint locks on active doors. The lock features two shootbolts positioned at the extreme ends and a deadbolt in the center, providing secure three-point locking for your entry door.

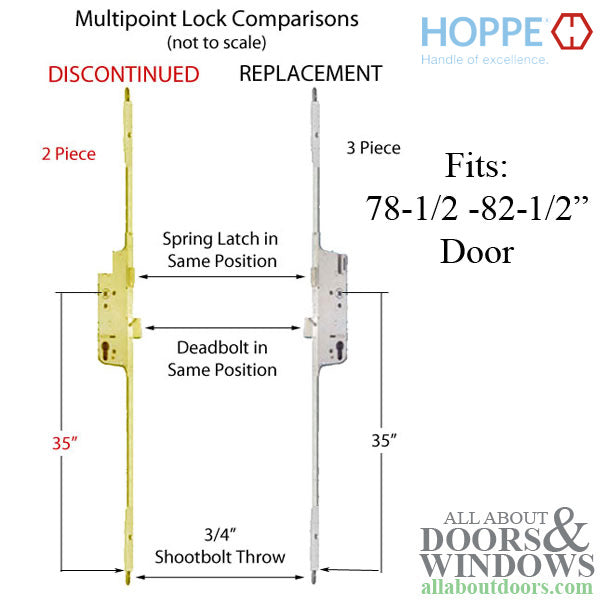

The kit is a nearly identical replacement for the original discontinued lock, making installation straightforward for those familiar with the old style system.

Technical Information

  • Overall Length: 78-1/2 to 82-1/2 inches (1994mm to 2096mm)
  • Backset: 45mm (1-3/4 inches)
  • Handle Height: 35 inches (889mm)
  • Handle Spacing (PZ): 92mm (3-5/8 inches)
  • Faceplate Width: 16mm (5/8 inch)
  • Finish: Stainless Steel
  • Lock Type: 3-point shootbolt multipoint

Kit Includes

  • Gear / Lock-body
  • Middle Extension
  • Top Shootbolt Extension
  • Cover Plate
  • Stainless Steel Screws

Notes

  • Most commonly used to replace old style Hoppe shootbolt multipoint locks for active doors
  • Nearly identical to the discontinued old style for easy installation

Replaces / Replaced by

  • Discontinued old style Hoppe shootbolt multipoint lock

Additional Resources

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does this replacement kit include?

The kit includes the gear/lock-body, middle extension, top shootbolt extension, cover plate, and stainless steel screws needed for installation.

Can I change the handing on this multipoint lock?

Yes, the handing can be changed. Refer to the included resources for detailed instructions on how to change the handing on the lock.

What type of lock does this kit replace?

This kit replaces the discontinued old style Hoppe shootbolt multipoint lock commonly found on active entry doors.
