Hoppe HLS9000 Weathershield Replacement Multipoint Lock Kit – 16mm Faceplate, 36" Handle Height

SKU: 49902002-KIT

$310.44 - $310.44

$310.44

$310.44 - $310.44

$310.44

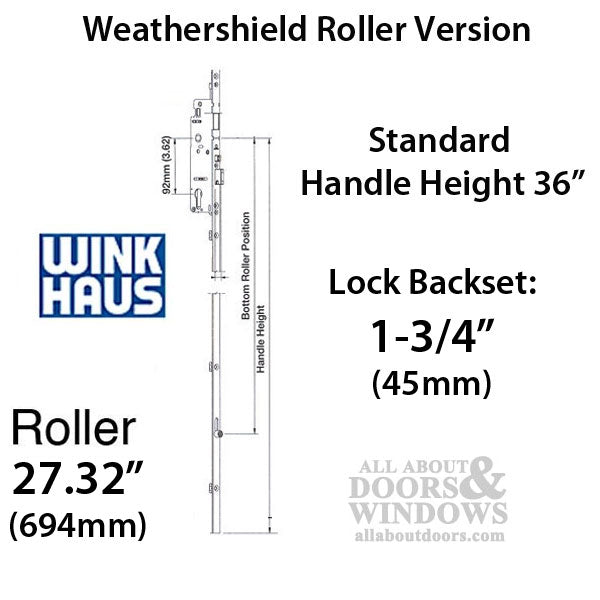

Replaces: Old style Winkhaus multipoint lock with rollers (manual and automatic versions)
Faceplate Width: 5/8" (16mm)
Handle Height: 36" (914mm)
Bottom Roller Position: 27.32" (694mm)
Top Roller Position: 32.6" (828mm)
Fits Door Heights: Up to 92-7/8" (2359mm) – must be cut to length
Original Door Height: 77-1/2" (1969mm)
Top Extension Length: 55.31" (1405mm)
Maximum Cut Off Top: 19" (483mm)
Maximum Cut Off Bottom: 2.38" (60mm)
Locking Type: Manual (lift handle to engage rollers)
Installation Screws: 13 stainless steel screws included
Kit Includes: Top extension with roller, stainless steel screws

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS9000 Weathershield Replacement Lock Kit (49902002-KIT)

This Hoppe HLS9000 replacement kit is designed to replace the old style Winkhaus multipoint locks with rollers used on Weathershield doors. It works as a direct replacement for both manual and automatic versions of the original Winkhaus lock system.

The original Winkhaus/Weathershield door lock height was 77-1/2 inches. This replacement kit accommodates doors up to 92-7/8 inches in overall length and must be cut to fit your specific door height. The lock features a manual locking operation where you lift the handle to engage the rollers.

Technical Information

Manufacturer: Hoppe HLS9000 Roller Version
Faceplate Width: 5/8 inch (16mm)
Handle Height: 36 inches (914mm)
Bottom Roller Position: 27.32 inches (694mm)
Top Roller Position: 32.6 inches (829mm)
Maximum Overall Length: 92-7/8 inches (2359mm)
Top Extension Length: 55.31 inches (1405mm)
Maximum Cut Off Top: 19 inches (483mm)
Maximum Cut Off Bottom: 2.38 inches (60mm)
Installation Screws: 13 stainless steel screws (1-3/8 inches)

Kit Components

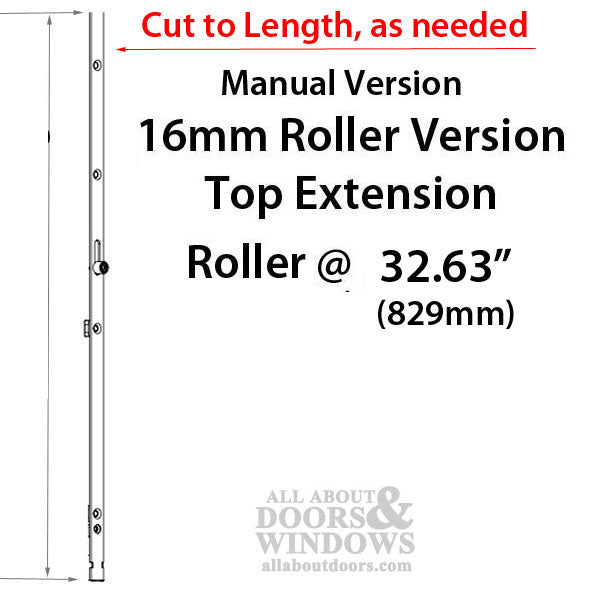

2002894 - 16mm Top Extension with Roller at 32.63 inches (829mm), 55.31 inches (1405mm) length
8785695 - Stainless Steel Screws, 1-3/8 inches (13 count)

Replaces / Replaced by

Old style Winkhaus multipoint lock with rollers (manual and automatic versions) used on Weathershield doors

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will this lock fit my Weathershield door?

This kit replaces old style Winkhaus multipoint locks (both manual and automatic versions) on Weathershield doors. The original door height was 77-1/2 inches, but this replacement fits doors up to 92-7/8 inches when cut to length.

Do I need to cut this lock to fit my door?

Yes, this lock must be cut to length for your specific door. You can cut up to 19 inches from the top and 2.38 inches from the bottom to achieve the correct fit.

How does the locking mechanism work?

This is a manual locking system. You lift the handle to engage the rollers and secure the door.
