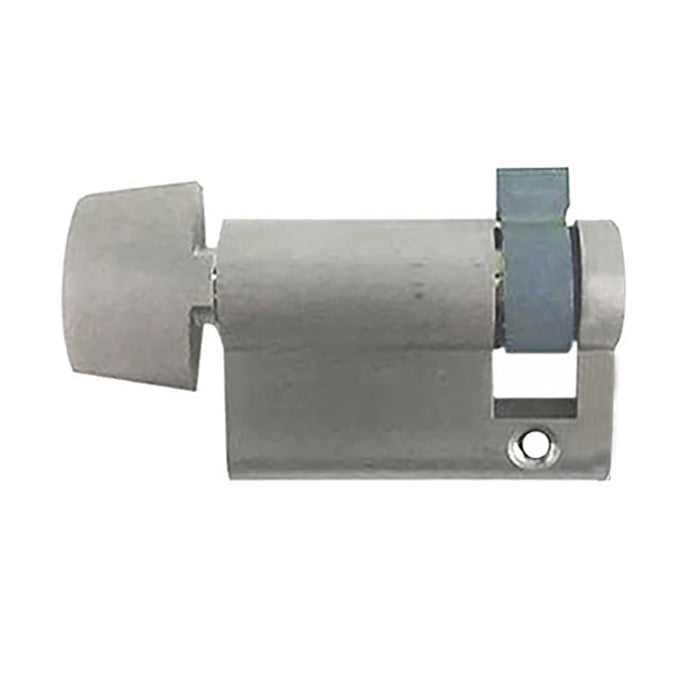

Hoppe Euro Profile Half Cylinder with D-Knob – 45.5/10mm, 90° Turn

SKU:

$139.27 - $213.23

$139.27

$139.27 - $213.23

$139.27

Type: Euro Profile Half Cylinder with D-Knob

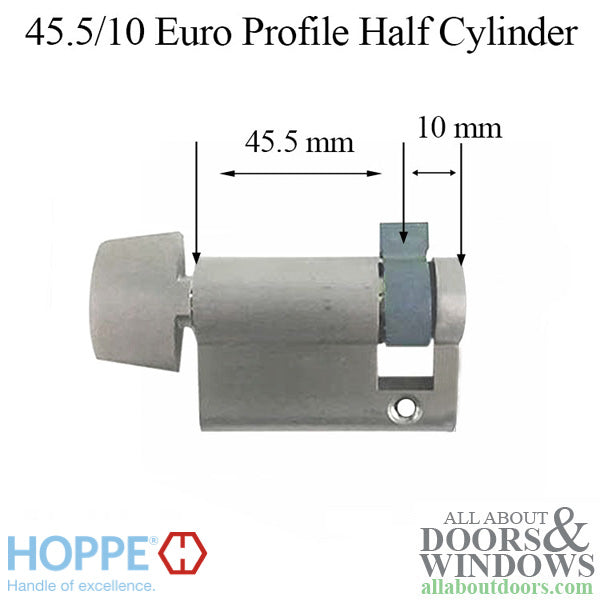

Cylinder Size: 45.5mm/10mm (55mm overall)
Inside Distance: 1-3/4" (45.5mm)
Outside Distance: 3/8" (10mm)
Overall Length: 2-1/8" (55.5mm)
Turn Style: 90° turn (shows locked/unlocked position)
Door Thickness: 2-3/8" to 2-1/2" (60mm to 63.5mm)
Finish: Polished Brass, Satin Nickel, Rustic Umber, or Black
Non-keyed cylinder for inactive/passive doors
Matches Dallas handle sets
Can be converted to 360° cylinder
Priced and sold each

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Euro Half Cylinder – 45.5/10mm, D-Knob (414510810)

This Hoppe 55mm Euro profile half cylinder features a D-knob thumb turn and is designed for inactive or passive doors. The 90-degree turn mechanism provides a clear visual indicator of the lock status, allowing homeowners to easily see whether the door is locked or unlocked at a glance.

The cylinder measures 45.5mm (1-3/4 inches) on the inside and 10mm (3/8 inch) on the outside, for an overall length of 55.5mm (2-1/8 inches). It is compatible with doors that are 2-3/8 to 2-1/2 inches thick and pairs well with Hoppe Dallas handle sets.

This non-keyed cylinder is ideal for doors that do not require exterior key access. If needed, it can be converted to a 360-degree cylinder for different applications.

Technical Information

Cylinder Type: Euro Profile Half Cylinder
Inside Distance: 45.5mm (1-3/4 inches)
Outside Distance: 10mm (3/8 inch)
Overall Length: 55mm (2-1/8 inches)
Turn Rotation: 90 degrees
Door Thickness: 2-3/8 to 2-1/2 inches (60mm to 63.5mm)
Knob Style: D-Knob

Notes

Available finishes: Polished Brass, Satin Nickel, Rustic Umber, Black
Matches Hoppe Dallas handle sets
Can be converted to 360-degree cylinder

Installation Instructions

Remove thumb turn
Insert auxiliary tool and pull down on release tab
Turn cam and insert into lock
Replace thumb turn

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between a 90-degree and 360-degree cylinder?

A 90-degree cylinder only turns a quarter turn and provides a visual indicator of locked/unlocked status. A 360-degree cylinder can rotate continuously like a standard key cylinder.

What door thickness does this cylinder fit?

This cylinder is designed for doors that are 2-3/8 to 2-1/2 inches thick.

Can I use this cylinder on a door that requires a key from outside?

No, this is a non-keyed half cylinder intended for inactive or passive doors. For keyed entry, you would need a full Euro profile cylinder.
