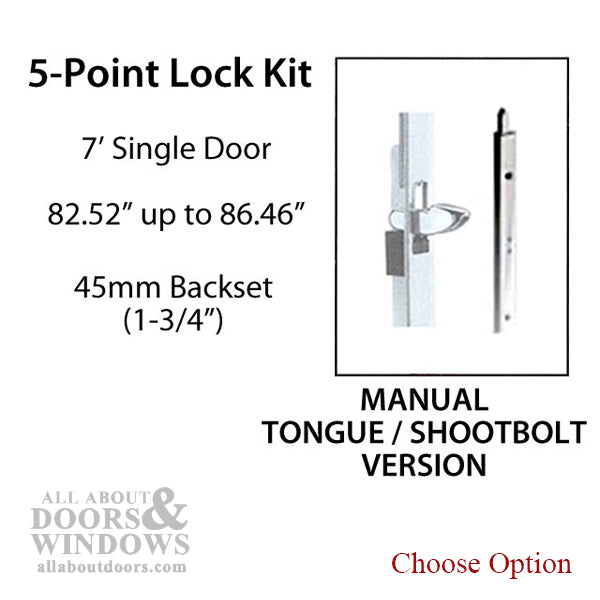

Hoppe HLS-ONE 5-Point Manual Tongue System for 7' Doors – 45mm Backset

Hoppe HLS-ONE 5-Point Manual Tongue System for 7' Doors – 45mm Backset

SKU:

$425.50 - $448.50
$425.50
$425.50 - $448.50
$425.50
  • System: HLS-ONE-HLS9000 5-point manual tongue system
  • Door Height: For 7' (2134mm) high active panels
  • Fits Doors: 82.52" to 86.46" (2096mm to 2196mm) tall when connected
  • Backset: 1-3/4" (45mm)
  • Faceplate Width: 5/8" (16mm)
  • Handle Height: 36" (914mm)
  • Top Tongue Position: 23.62" (600mm)
  • Bottom Tongue Position: 24.41" (620mm)
  • Shootbolts: Located at extreme top and bottom
  • Finish: Stainless steel strikes and hardware
  • Kit Includes: Top shootbolt extension, middle extension, bottom gear, strike plates, screws, dust caps, and instruction booklet
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe HLS-ONE 5-Point Lock Kit – 7' Door (3210695-KIT)

This Hoppe HLS-ONE-HLS9000 5-point manual tongue system is designed for 7-foot (84 inches) high active door panels. The complete kit provides everything needed for a secure multipoint locking solution with tongues and shootbolts at multiple positions along the door edge.

When the top, middle, and bottom components are connected, this system accommodates doors ranging from 82.52 inches to 86.46 inches in height. The shootbolts are positioned at the extreme top and bottom of the door for maximum security.

Technical Information

  • Backset: 1-3/4 inches (45mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Handle Height: 36 inches (914mm)
  • Top Tongue Position: 23.62 inches (600mm)
  • Bottom Tongue Position: 24.41 inches (620mm)
  • Door Height Range: 82.52 to 86.46 inches when assembled

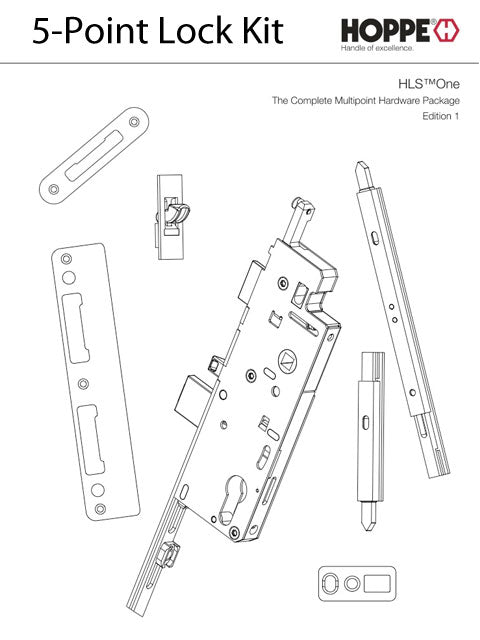

Kit Contents

  • 1 - Top Shootbolt Extension
  • 1 - Middle Extension (Tongue Position at 23.62 inches)
  • 1 - Bottom Gear (Tongue Position at 24.41 inches)
  • 1 - Latch & Deadbolt Strike Plate (Radius/Curved Lip) - Stainless Steel
  • 17 - Stainless Steel Screws 1-3/8 inches
  • 10 - Stainless Steel Screws 3/4 inch
  • 2 - Stainless Steel Tongue Strike Plates with Radius Corners
  • 2 - Stainless Steel Shootbolt Strikes
  • 4 - Dust Caps for Latch & Deadbolt with Tongue Strikes - Black
  • 1 - Instruction Booklet

Notes

  • Lock handing can be changed - see Hoppe resources for instructions
  • Mishandling device direction can also be adjusted

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I change the handing on this Hoppe multipoint lock?

Yes, the lock handing can be reversed. Hoppe provides written instructions and video guides for changing the handing on their multipoint locks.

What door heights does this 5-point lock system fit?

When the top, middle, and bottom components are connected, this system fits doors ranging from 82.52 inches to 86.46 inches tall, designed for standard 7-foot (84 inch) door panels.

What is included in this lock kit?

The kit includes a top shootbolt extension, middle extension, bottom gear, stainless steel strike plates, mounting screws, dust caps, and an instruction booklet for complete installation.
