G-U Ferco Berlin Handleset Trim – Minimum 2" Backset, American Cylinder

SKU:

$474.69 - $548.26

$474.69

$474.69 - $548.26

$474.69

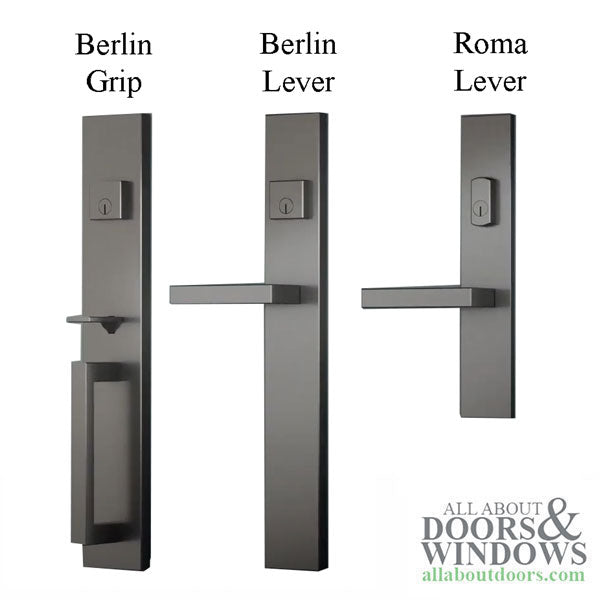

Style: Berlin Lever
Backset: Minimum 2" (51mm) required
Plate Width: 2-9/16" (65mm)
Plate Height: 18-45/64" (475mm)
Door Thickness: 1-3/4" (44mm) or 2-1/4" (57mm)
Cylinder: American cylinder above handle, Schlage "C" keyway
Handing: Non-handed, fits left or right hand doors
Compatible with G-U Ferco automatic latchbolt series locks
Includes cylinder plug and dummy brackets for conversion to semi-active or dummy function
Special order item, 2-4 weeks delivery. No returns, refunds, or exchanges.

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

G-U Ferco Berlin Handleset Trim (K-U8592-Z1-0)

This G-U Ferco handleset trim in the Berlin lever style is designed for use with the G-U Ferco automatic latchbolt series locks. The trim features a long plate design measuring 2-9/16 inches (65mm) wide by 18-45/64 inches (475mm) tall, providing a sleek, modern appearance for your entry door.

The trim kit requires a minimum 2-inch backset lock and accommodates door thicknesses of 1-3/4 inches or 2-1/4 inches. It is non-handed, meaning it will fit both left and right hand doors without modification.

Technical Information

Style: Berlin Lever
Plate Width: 2-9/16 inches (65mm)
Plate Height: 18-45/64 inches (475mm)
Minimum Backset: 2 inches (51mm)
Door Thickness: 1-3/4 inches (44mm) or 2-1/4 inches (57mm)
Cylinder Type: American cylinder with standard 5 pins, Schlage "C" keyway
Cylinder Position: Above handle
Spindle: Self-centering 8mm diameter
Material: Unassembled Zamac trim kit

Notes

Features new snapping mechanism for 90-degree locking with thumb-turn
Stainless steel set screw on levers to secure spindle
Active trim kits can be converted to semi-active or dummy function using included pre-assembled cylinder plug and screw-in dummy brackets
Available colors: Dark Bronze, Black, Satin Nickel
Available functions: Active (Keyed), Semi-Active (Non-keyed), Dummy (Fixed levers)

Related Parts

K-U8592-Z1-0-* - Handle sets for active doors with American cylinder
K-U8546-Z0-0-* - Handle sets for semi-active doors
K-U8510-Z0-0-* - Handle sets for fixed doors
K-U8592-D0-0-* - Handle sets for smart lock

This is a special order item and may take 2 to 4 weeks for delivery. No returns, refunds, or exchanges.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the minimum backset required for this handleset trim?

This G-U Ferco Berlin handleset trim requires a minimum 2-inch (51mm) backset lock from the G-U Ferco automatic latchbolt series.

Can I use this trim on both left and right hand doors?

Yes, this trim is non-handed and will fit both left and right hand doors without any modification.

What cylinder keyway does this handleset use?

This handleset uses an American cylinder with standard 5 pins and a Schlage "C" keyway, positioned above the handle.
