GU/Ferco Extended Tail Piece – 3-3/8" Length

SKU: 9-C0975-90-0-6

$1.97 - $1.97

$1.97

$1.97 - $1.97

$1.97

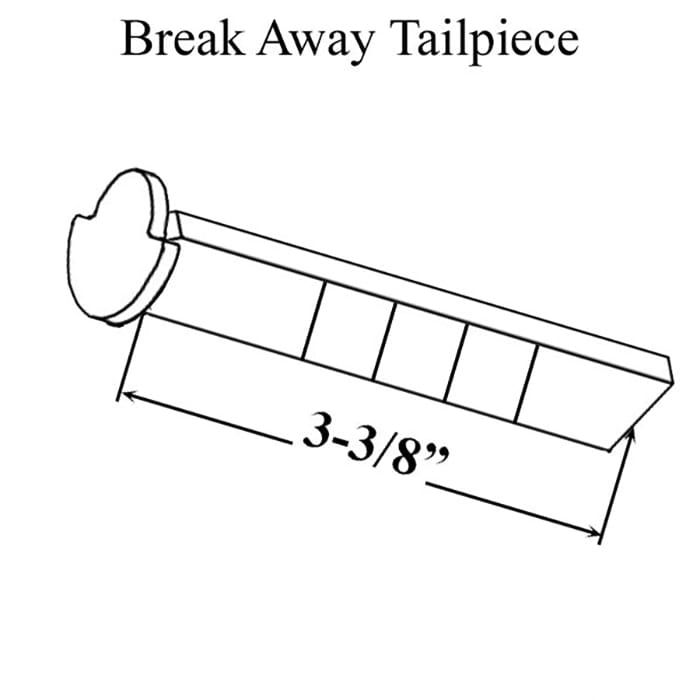

Tail Piece Length: 3-3/8" (85.7mm) with 1/2" (12.7mm) breakaway sections
Door Thickness: Up to 3-1/2" (88.9mm) depending on escutcheon plate thickness
Compatibility: Replaces all shorter GU/Ferco tail pieces
Extended length designed for doors greater than 2-1/4" (57.2mm) thick
Can be shortened by breaking off tabs for thinner doors
Connects locking cylinder to mortise case and interior thumb turn
Priced and sold each

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

GU/Ferco Extended Tail Piece – 3-3/8" (9-C0975-90-0-6)

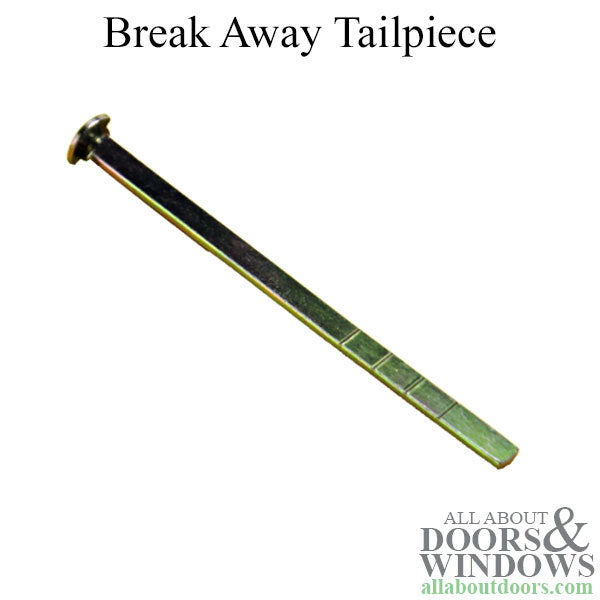

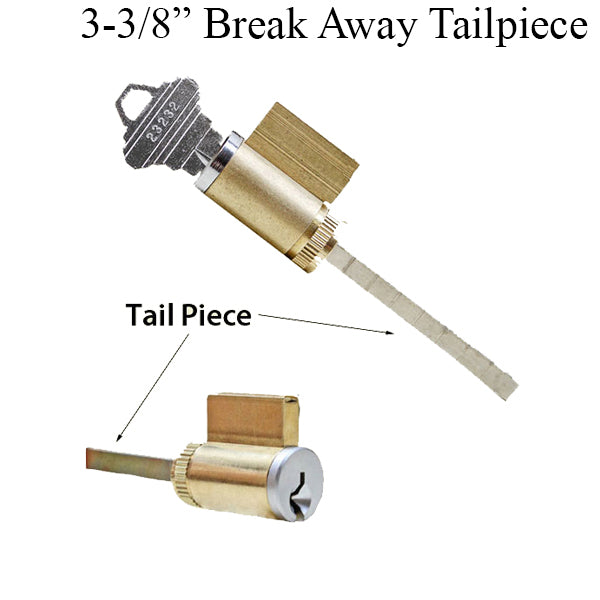

This extended length tail piece is designed for GU and Ferco multipoint lock systems. It connects the locking cylinder to the mortise case and to the interior thumb turn, allowing the locking feature of the mortise case to operate properly.

With a total length of 3-3/8 inches (85.7mm) and 1/2 inch (12.7mm) breakaway sections, this tail piece accommodates doors greater than 2-1/4 inches (57.2mm) thick. It can handle door thicknesses up to 3-1/2 inches (88.9mm) depending on your escutcheon plate thickness.

The breakaway design allows you to customize the length for thinner doors by simply breaking off tabs to achieve the appropriate size. This versatile tail piece replaces all other shorter GU/Ferco tail pieces, making it a practical solution for various door configurations.

Technical Information

Tail Piece Length: 3-3/8 inches (85.7mm)
Breakaway Sections: 1/2 inch (12.7mm) each
Maximum Door Thickness: Up to 3-1/2 inches (88.9mm)
Minimum Door Thickness: Greater than 2-1/4 inches (57.2mm) at full length
Cylinder Type: American cylinder

Notes

Replaces all shorter GU/Ferco tail pieces
Final door thickness capacity depends on escutcheon plate thickness

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I know what length tail piece I need?

Measure your door thickness and escutcheon plate thickness. This extended tail piece works for doors greater than 2-1/4 inches thick, up to 3-1/2 inches depending on your escutcheon.

Can I use this tail piece on a thinner door?

Yes, the tail piece has 1/2 inch breakaway sections that allow you to shorten it for thinner doors by simply breaking off tabs to the appropriate length.

What does the tail piece connect to?

The tail piece connects the exterior locking cylinder to the mortise case and to the interior thumb turn, enabling the lock's operation.
