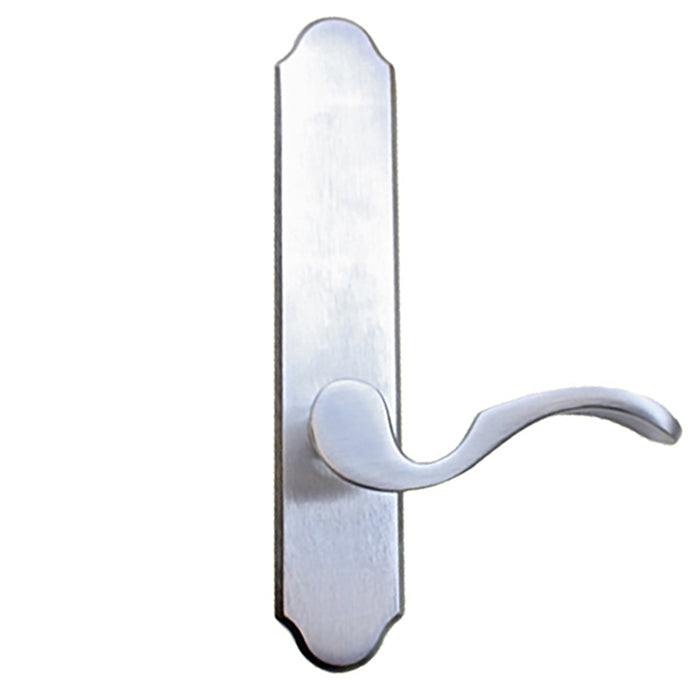

GU Belissimo Traditional Handleset Trim – 92mm PZ, Satin Chrome

SKU: 6-U5146-00-0-SC

$227.92 - $227.92

$227.92

$227.92 - $227.92

$227.92

PZ (Handle to Cylinder): 3-5/8" (92mm)
Escutcheon Plate Width: 1-3/4" (44.6mm)
Escutcheon Plate Length: 8-15/16" (227mm)
Screw Hole Spacing: 7-3/4" (196mm)
Spindle: 5/16" (8mm) square x 3-15/16" (100mm) length
Door Thickness: Fits standard 1-3/4" doors
Cylinder: American cylinder with Schlage SC1 keyway, rekeyable, includes 2 keys
Plate Style: Traditional with arched/bell shape
Finish: Satin Chrome
Compatible with New Breed (key above) and Europa (key below) multipoint locks
Complete trim set includes interior and exterior handles, wide trim plates, spindle, screws, and keyed cylinder

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

GU Belissimo Traditional Handleset Trim – 92mm PZ, SC (6-U5146-00-0-SC)

Note: Ferco Architectural Hardware warranty does not cover corrosion. This information is especially useful if you live in a coastal area where exterior corrosion is accelerated.

This GU Belissimo Collection handleset trim provides a complete hardware solution for multipoint lock doors. The traditional plate style features an elegant arched bell shape, crafted from high-quality forged escutcheon plates rather than cast materials for superior durability and appearance.

The trim is designed to work with both New Breed (key above handle) and Europa (key below handle) multipoint lock configurations, offering versatility for various door setups. The 92mm PZ spacing (handle center to cylinder center) ensures proper alignment with compatible multipoint lock bodies.

This complete trim set includes both interior and exterior handles, wide escutcheon plates, a 5/16-inch square spindle measuring 3-15/16 inches in length, mounting screws, and a keyed American cylinder. The Schlage SC1 keyway cylinder is rekeyable and comes with 2 keys.

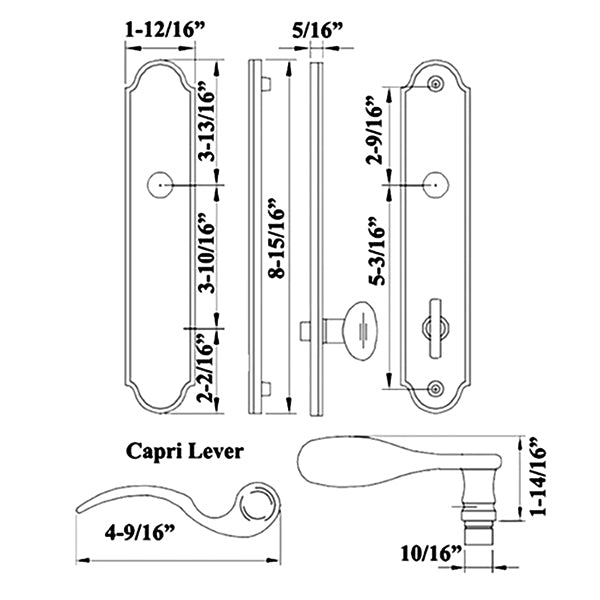

Technical Information

PZ (Handle to Cylinder): 3-5/8 inches (92mm)
Escutcheon Plate Width: 1-3/4 inches (44.6mm)
Escutcheon Plate Length: 8-15/16 inches (227mm)
Screw Hole Spacing: 7-3/4 inches (196mm)
Spindle Size: 5/16 inches (8mm) square x 3-15/16 inches (100mm) length
Door Thickness: Standard 1-3/4 inch doors (includes 2 inch/50mm screws)
Cylinder Type: American cylinder with Schlage 5-pin SC1 keyway
Thumbturn: 90-degree rotation for visual lock confirmation
Finish: Satin Chrome
Plate Style: Traditional with arched/bell shape

Notes

Compatible with wood, vinyl, and metal doors
Works with both New Breed (key above) and Europa (key below) multipoint locks
Part of the 5100 series wide plate collection
Some styles and finishes are special order and may require 2-4 week delivery
Finishes are not PVD coated; manufacturer does not warranty the finish
Additional keys available separately
Available handle designs in this collection: Capri, Florence, Milan, Venice, Roma

Priced and sold as a complete trim set.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is PZ and how do I measure it?

PZ is the distance from the center of the handle to the center of the key cylinder. Measure this distance on your existing hardware to ensure compatibility. This trim has a 92mm (3-5/8 inch) PZ.

Will this work with my multipoint lock?

This trim is compatible with both GU New Breed (key above handle) and Europa (key below handle) multipoint locks with 92mm PZ spacing.

Can I rekey the cylinder to match my existing keys?

Yes, the included Schlage SC1 cylinder is rekeyable. A locksmith can rekey it to match your existing Schlage keys.
