GU Secury Raised Strike Plate – 18mm Wide, 232mm Length

GU Secury Raised Strike Plate – 18mm Wide, 232mm Length

SKU: 6-38733-01-0-FG

$8.26 - $8.26
$8.26
$8.26 - $8.26
$8.26

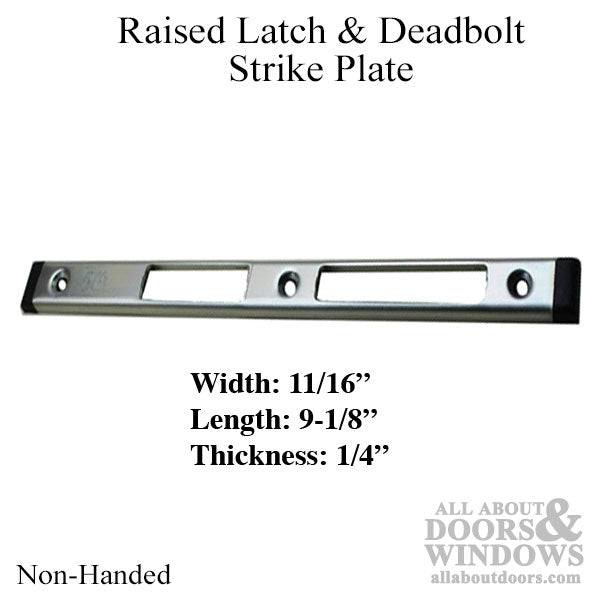

  • Width: 11/16" (18mm)
  • Length: 9-1/8" (232mm) with ends or 8-1/2" (216.5mm) metal only
  • Thickness: 1/4" (6mm)
  • Screw Hole Spacing: 7-9/16" top to bottom
  • Deadbolt Cutout: 12.25mm x 62mm (W x H)
  • Stamped: 949836 on metal
  • New style raised strike plate with black plastic ends and middle support
  • Shorter than previous model 6-28959-00-0-1
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

GU Secury Raised Strike Plate (6-38733-01-0-FG)

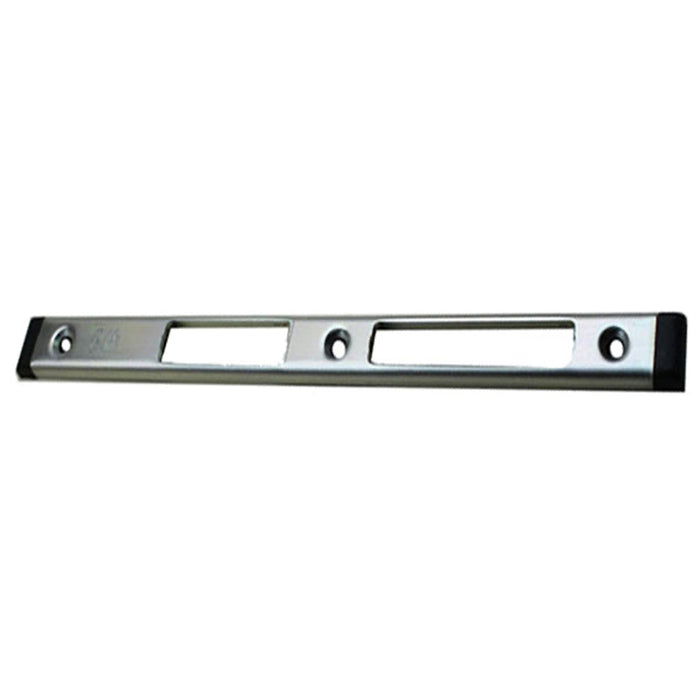

This GU Secury Raised Strike Plate is designed for multipoint lock systems and features a new, shorter design compared to the previous model. The strike plate accommodates both latch and deadbolt functions with an updated deadbolt cutout measuring 12.25mm x 62mm (width x height).

The strike plate measures 11/16 inches (18mm) wide and 9-1/8 inches (232mm) long with the plastic ends attached, or 8-1/2 inches (216.5mm) for the metal portion only. The thickness is 1/4 inch (6mm) with screw holes spaced 7-9/16 inches from top to bottom.

Stamped With

  • 949836 stamped in metal
  • 9 7735 01 0 on black plastic ends
  • 9-37827-01 on black middle support

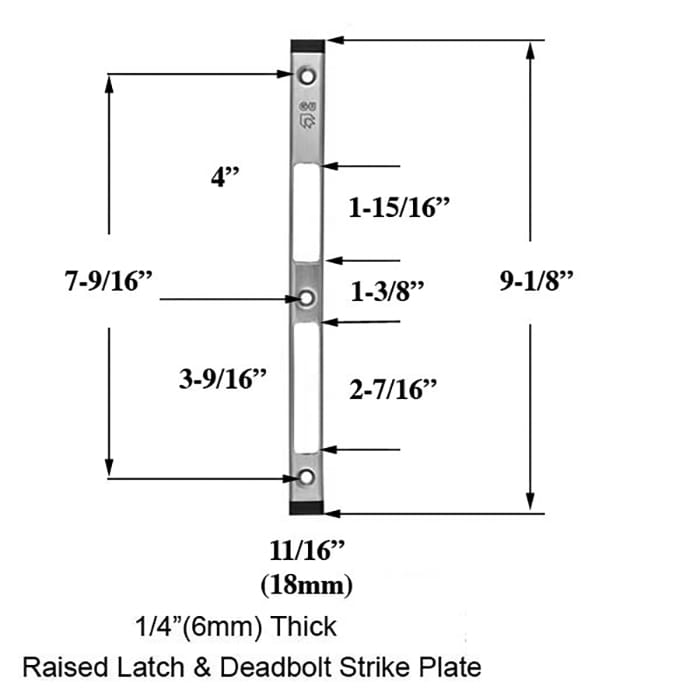

Technical Information

  • Width: 11/16 inch (18mm)
  • Length with Ends: 9-1/8 inches (232mm)
  • Metal Length Only: 8-1/2 inches (216.5mm)
  • Thickness: 1/4 inch (6mm)
  • Screw Hole Spacing: 7-9/16 inches top to bottom
  • Deadbolt Cutout: 12.25mm x 62mm (W x H)

Notes

  • This is the new style strike plate with a shorter length than the previous version
  • The new length of 216.5mm (compared to previous 227mm) is achieved by shortening the upper area of the strike plate
  • The upper fixing hole has been shifted downwards by 10.5mm from the previous position
  • The deadbolt cutout has been enlarged from the previous 12mm x 43mm to the new 12.25mm x 62mm
  • Includes black plastic ends and black middle support

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How is this strike plate different from the previous model 6-28959-00-0-1?

This new style strike plate is shorter (216.5mm vs 227mm metal length), has the upper fixing hole shifted down by 10.5mm, and features a larger deadbolt cutout of 12.25mm x 62mm compared to the previous 12mm x 43mm.

What markings should I look for to identify this strike plate?

Look for 949836 stamped in the metal, 9 7735 01 0 on the black plastic ends, and 9-37827-01 on the black middle support.
