G-U Multipoint Handleset – Inactive with Thumbturn, 92mm PZ

SKU:

$49.95 - $79.95

$49.95

$49.95 - $79.95

$49.95

PZ: 92mm (3-5/8") – center of handle to center of thumbturn
Door Thickness: 1-3/4" (45mm)
Function: Inactive, non-keyed with thumbturn
Escutcheon Plate Size: 1-1/16" x 8-11/16" (27mm x 221mm)
Screw Hole Spacing: 7-3/4" (197mm) center to center
Thumbturn Rotation: 90 degrees
Material: Solid brass
Non-handed – fits left or right hand doors
Compatible with G-U, Ferco, Marvin, KML, BiltBest, Hurd, and others
No lock or cylinder included
Priced and sold as a package

Limited Inventory

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

G-U Inactive Handleset with Thumbturn – 92mm PZ (404102)

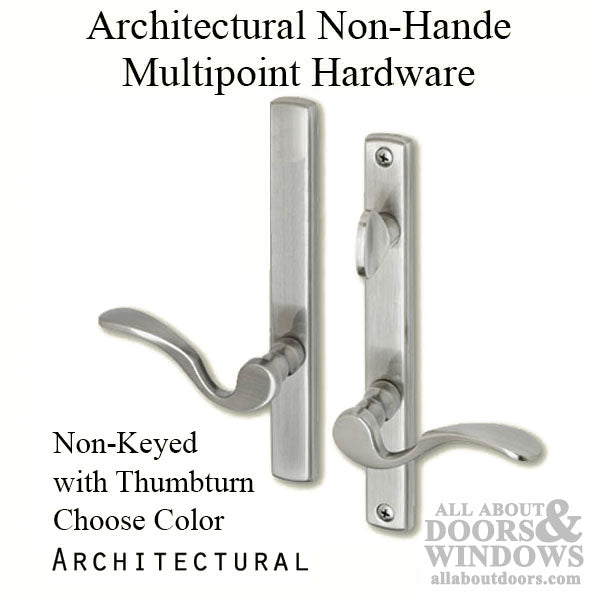

This G-U multipoint door handle set is designed for hinged swing doors where keyed access is not required. The inactive, non-keyed configuration features a thumbturn that provides semi-restricted access by locking the handle levers in place when engaged. When unlocked, the handle levers operate the multipoint lock mechanism.

This handle set is non-handed, meaning it will fit on either left or right hand doors without modification. It is primarily intended for interior doors but can also be used on exterior applications where key-restricted access is not needed.

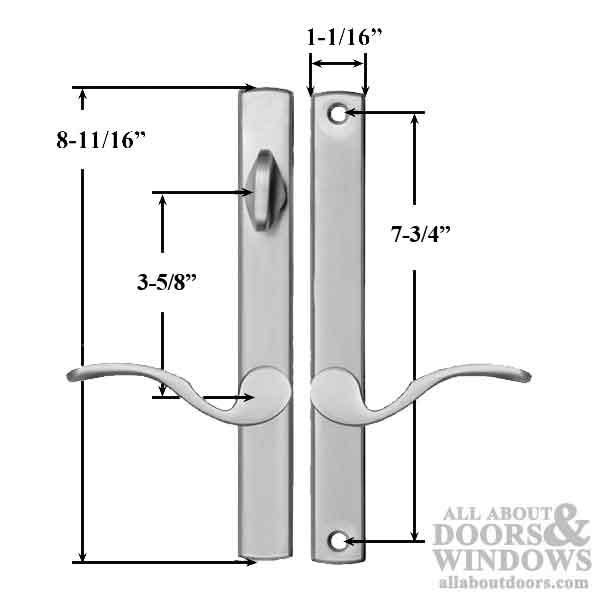

The handle PZ measures 92mm (3-5/8 inches) from the center of the handle to the center of the thumbturn. The thumbturn rotates 90 degrees to engage or disengage the locking function. No lock or cylinder is included with this handle set.

Constructed from solid brass for durability, this handle set fits doors that are 1-3/4 inches (45mm) thick. The escutcheon plates measure 1-1/16 x 8-11/16 inches with screw holes spaced 7-3/4 inches center to center.

Technical Information

PZ (Handle to Thumbturn Center): 92mm (3-5/8 inches)
Door Thickness: 1-3/4 inches (45mm)
Escutcheon Plate Dimensions: 1-1/16 x 8-11/16 inches
Screw Hole Spacing: 7-3/4 inches center to center
Thumbturn Rotation: 90 degrees
Material: Solid brass

Notes

Compatible with G-U, Ferco, Marvin, KML, BiltBest, Hurd, and other multipoint lock systems
These escutcheon plates may be smaller than original hardware and may not cover impressions or lines on door panels made by old hardware
Best suited for new construction or when doors have been refinished
Available in other functions: Active keyed with thumbturn (404101), Dummy with rigid levers (404103)

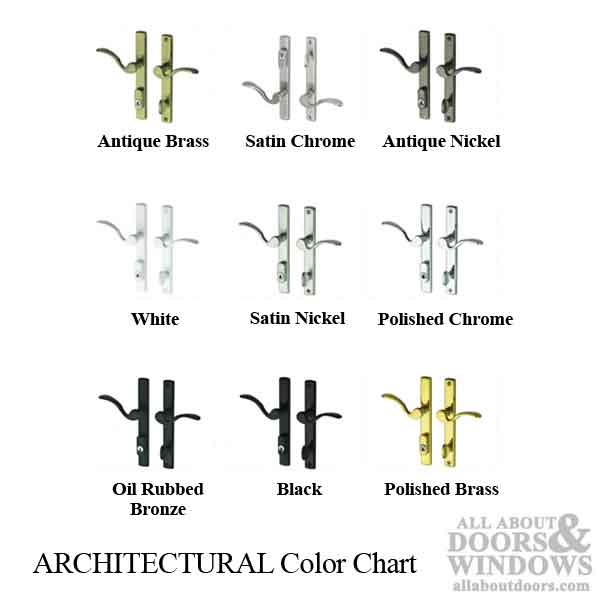

Available finishes: Antique Brass, Antique Nickel, Black, Brushed/Satin Chrome, Polished Brass, Polished Chrome, Brushed/Satin Nickel, Oil Rubbed Bronze, White

Related Parts

404101 – G-U Active Handleset, Keyed with Thumbturn
404103 – G-U Dummy Handleset, Rigid Levers

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean on a multipoint handle?

PZ refers to the distance from the center of the handle to the center of the thumbturn or cylinder, measured in millimeters. This handle set has a 92mm PZ.

Can this handle set be used on exterior doors?

Yes, it can be used on exterior doors, but since it has no keyed cylinder, it only provides semi-restricted access via the thumbturn rather than full key-locked security.

Will this cover my old hardware marks on the door?

The escutcheon plates may be smaller than original hardware and might not cover impressions or lines left by old hardware. This handle set is best suited for new construction or refinished doors.
