Multipoint Handleset – 92mm PZ, Antique Brass

SKU:

$0.00 - $79.95

$0.00

$0.00 - $79.95

$0.00

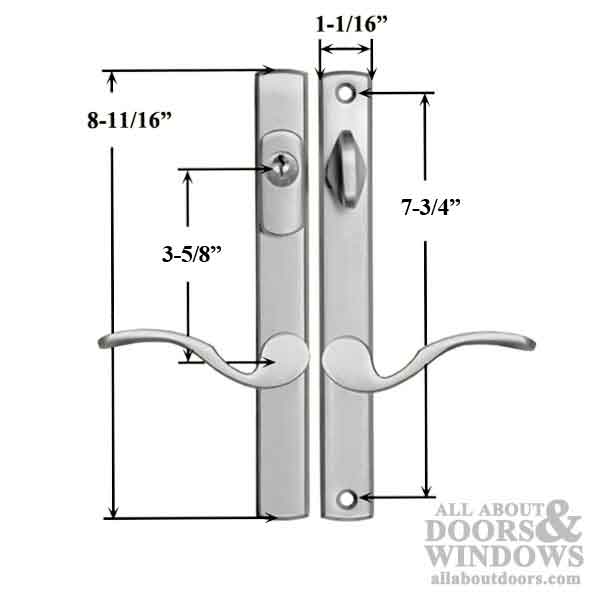

PZ: 3-5/8" (92mm) – center of handle to center of thumbturn
Door Thickness: 1-3/4" (45mm)
Escutcheon Plate Size: 1-1/16" x 8-11/16" (27mm x 220mm)
Screw Hole Spacing: 7-3/4" (197mm) center to center
Cylinder Type: American cylinder with flat tailpiece, 5-pin SC1 keyway
Function: Active keyed handleset with thumbturn
Material: Solid brass construction
Handing: Non-handed – fits left or right hand doors

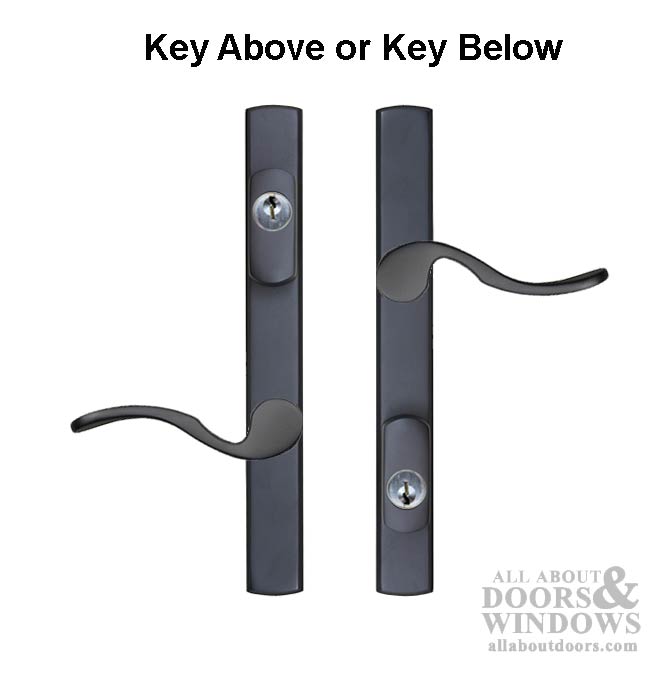

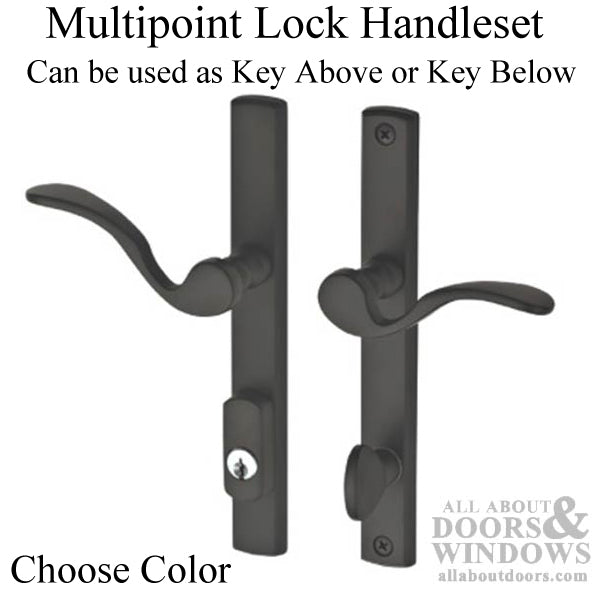

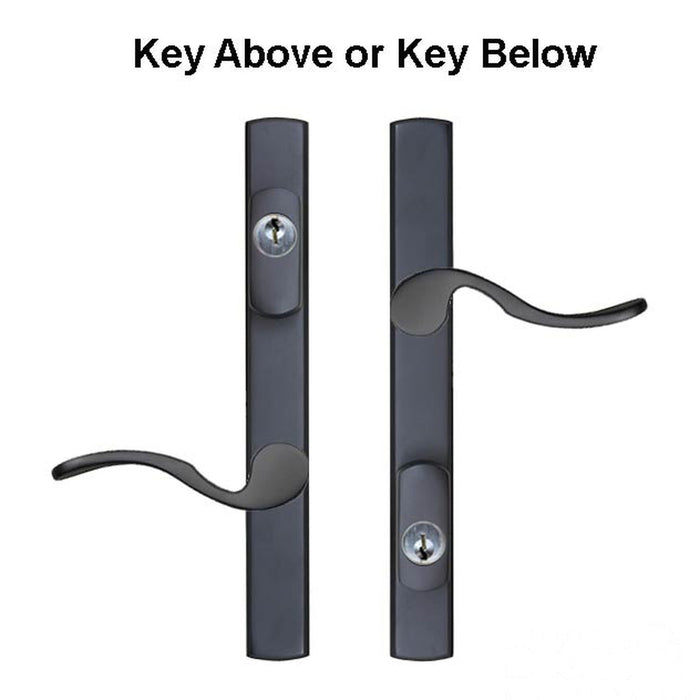

Key Position: Works with key above or key below multipoint locks
Compatibility: G-U, Ferco, Marvin, KML, BiltBest, Hurd, and others

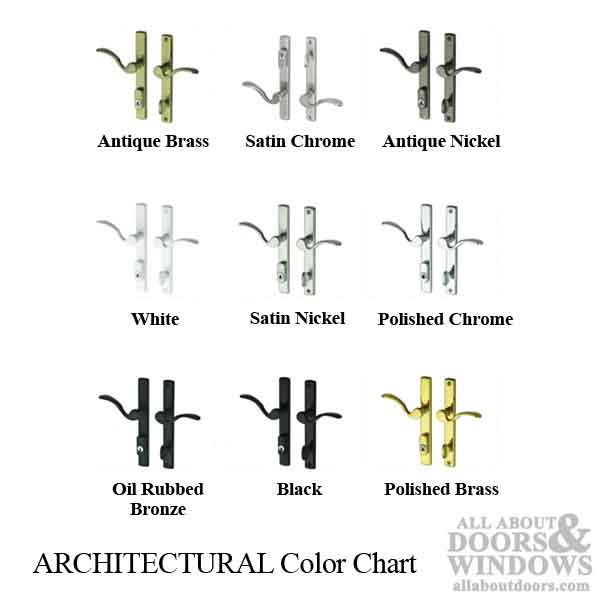

Finish: Antique Brass
Special Order: 4-6 weeks lead time
Priced and sold as a package

Discontinued and no longer available

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Multipoint Handleset – 92mm PZ, Antique Brass (404101)

This multipoint lock door handleset is designed for hinged swing doors and offers versatile compatibility with a wide range of multipoint lock systems including G-U, Ferco, Marvin, KML, BiltBest, Hurd, and others. The non-handed design allows installation on both left and right hand doors, and it works with both key above and key below lock configurations.

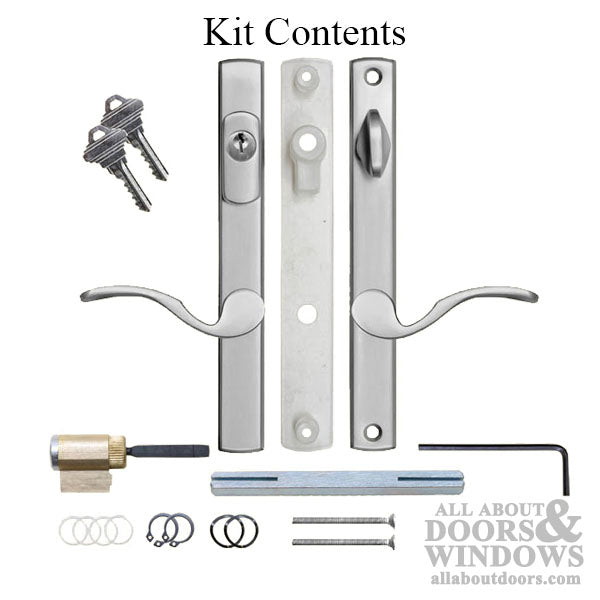

The handleset features a 92mm PZ measurement (3-5/8 inches from center of handle to center of thumbturn) and is designed for doors that are 1-3/4 inches (45mm) thick. It uses an American cylinder with a flat tailpiece and 5-pin SC1 keyway, and comes with 2 keys included.

Constructed from solid brass for durability and quality, this active keyed handleset includes a thumbturn on the interior side. The escutcheon plates measure 1-1/16 x 8-11/16 inches (27mm x 220mm) with screw holes spaced 7-3/4 inches (197mm) center to center.

Technical Information

PZ (Handle to Thumbturn): 92mm (3-5/8 inches)
Door Thickness: 45mm (1-3/4 inches)
Escutcheon Plate Dimensions: 27mm x 220mm (1-1/16 x 8-11/16 inches)
Screw Hole Spacing: 197mm (7-3/4 inches) center to center
Cylinder Type: American cylinder, flat tailpiece
Keyway: 5-pin SC1
Keys Included: 2
Material: Solid brass
Finish: Antique Brass

Notes

This is a special order item with a 4-6 week lead time once ordered
These escutcheon plates may be smaller than original hardware and may not cover impressions or marks left by previous hardware
Best suited for new construction, same-size plate replacement, or refinished doors

Related Parts

404102 – Inactive handleset (non-keyed with thumbturn)
404103 – Dummy handleset (no key, no thumbturn, rigid levers)

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is PZ and how do I measure it?

PZ is the distance from the center of the handle to the center of the thumbturn or cylinder. For this handleset, the PZ is 92mm (3-5/8 inches).

Will this handleset cover my existing hardware marks?

These escutcheon plates measure 1-1/16 x 8-11/16 inches and may be smaller than original hardware. They may not cover impressions or marks left by previous hardware, so this set is best for new construction or refinished doors.

Can I use this on a left-hand or right-hand door?

Yes, this handleset is non-handed and will work on both left and right hand doors without modification.
