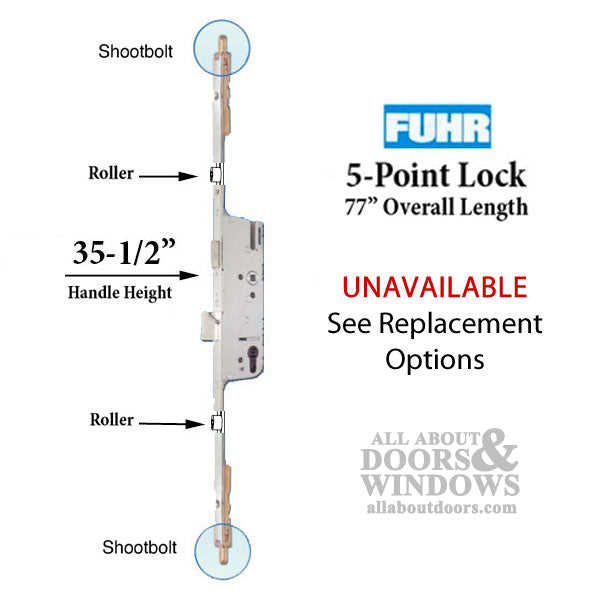

Fuhr 5-Point Multipoint Lock for Caradco Doors – 35mm Backset, 92mm PZ

SKU: 499017699

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

PZ: 3-5/8" (92mm)
Backset: 1-3/8" (35mm)
Faceplate Width: 5/8" (16mm)
Faceplate Thickness: 7/64" (2.7mm)
Handle Height: 35-7/16" (900mm)
Overall Length: 77" (1956mm)
Spindle Diameter: 5/16" (8mm)
Faceplate Finish: Yellow Zinc Plated
Locking Points: 5-point (2 rollers, 2 shootbolts, 1 deadbolt)
Shootbolt Throw: 23/32" (18mm)
Rollers: Adjustable with 4mm allen wrench
Stamped: U2/KOP or 10W/KOPB on some locks
Status: Discontinued – replace with 4990236-KIT

Replace with 4990236-KIT

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Fuhr 5-Point Lock for Caradco Doors (499017699)

This is the original Fuhr 5-point multipoint lock used in Caradco doors. Please note that this lock is discontinued and has been replaced by the 4990236-KIT, which is a 3-point lock system with shootbolts only at the top and bottom of the door.

Before ordering a replacement, compare your existing lock to the specifications below to confirm compatibility.

Stamped With

U2/KOP or 10W/KOPB (on some locks)

Technical Information

Lock Type: 5-point (2 rollers, 2 shootbolts, 1 deadbolt)
Overall Length: 77 inches (1956mm)
Faceplate Width: 5/8 inch (16mm)
Faceplate Thickness: 7/64 inch (2.7mm)
Faceplate Finish: Yellow Zinc Plated
PZ (Handle to Keyhole Center): 3-5/8 inches (92mm)
Backset: 1-3/8 inches (35mm)
Handle Height: 35-7/16 inches (900mm)
Spindle Diameter: 5/16 inch (8mm)
Shootbolt Throw: 23/32 inch (18mm)
Roller Positions: 13-3/8 inches above and 13-15/16 inches below center of handle (in locked/down position)
Roller Adjustment: 4mm allen wrench

Notes

This is the OLD Fuhr lock used by Caradco
Rollers are adjustable using a 4mm allen wrench

Replaces / Replaced by

Replaced by 4990236-KIT – 3-point lock system with shootbolts only at top and bottom (includes gear box, middle extension arm, and top and bottom shootbolts)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Why is this lock discontinued?

This original Fuhr 5-point lock has been replaced by the 4990236-KIT, which is a 3-point lock system that includes a gear box, middle extension arm, and top and bottom shootbolts.

How do I know if I have this lock?

Check for a sticker on the lock that reads U2/KOP or 10W/KOPB. Also verify the measurements: 77 inches overall length, 5/8 inch faceplate width, 35mm backset, and 92mm PZ.

How do I adjust the rollers on this lock?

The rollers are adjustable using a 4mm allen wrench. The rollers are located 13-3/8 inches above and 13-15/16 inches below the center of the handle.
