Fuhr 4-Point Multipoint Lock – 35mm Backset, 70mm PZ

SKU: 499011999

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

PZ: 2-3/4" (70mm)
Backset: 1-3/8" (35mm)
Handle Height: 34-1/2" (876.3mm)
Overall Length: 92-1/8" (2339.9mm)
Configuration: 3 tongues + deadbolt/spring latch
Bottom Tongue Position: 29-1/2" (749.3mm) below handle
Middle Tongue Position: 26-1/2" (673.1mm) above handle
Top Tongue Position: 49-1/2" (1257.3mm) above handle
Compatibility: Used by MW Door Company
Note: This lock is discontinued; replacement kit 4990226 available

This product has been discontinued and is no longer available

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Fuhr 4-Point Multipoint Lock (499011999)

This Fuhr 4-point multipoint lock was originally manufactured for MW Door Company applications. The lock features a tongue version design with three tongues plus a deadbolt and spring latch combination, providing comprehensive security for your entry door.

This lock is no longer being manufactured by Fuhr, but an almost direct replacement is available with kit 4990226.

Technical Information

Overall Length: 92-1/8 inches (2339.9mm)
Backset: 1-3/8 inches (35mm)
PZ: 2-3/4 inches (70mm)
Handle Height: 34-1/2 inches (876.3mm)
Bottom Tongue Position: 29-1/2 inches below handle (749.3mm)
Middle Tongue Position: 26-1/2 inches above handle (673.1mm)
Top Tongue Position: 49-1/2 inches above handle (1257.3mm)
Locking Points: 4 (3 tongues + deadbolt/spring latch)

Notes

Used by MW Door Company

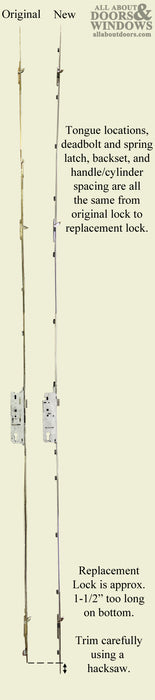

When replacing with kit 4990226, you will need to carefully use a hacksaw to trim approximately 1-1/2 inches off the bottom of the new lock to ensure the handle reaches the correct height
Handle height must match the current Fuhr lock
There is a reference line on the face of both Fuhr and Hoppe locks just below the spring latch. Mark this line placement on the door edge with a pencil before installation

Replaces / Replaced by

Replaced by 4990226 (replacement kit)

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the replacement for this discontinued Fuhr lock?

The replacement kit 4990226 is an almost direct replacement. You will need to trim approximately 1-1/2 inches off the bottom of the new lock to match the handle height.

How do I ensure the correct handle height when installing the replacement?

Mark the reference line on the face of the lock just below the spring latch onto your door edge with a pencil. The handle height on the replacement must match your current Fuhr lock at 34-1/2 inches.

What does PZ mean on a multipoint lock?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This lock has a 70mm PZ measurement.
