Fuhr 3-Point Automatic Multipoint Lock – 35mm Backset, 92mm PZ, 36" Handle Height

Fuhr 3-Point Automatic Multipoint Lock – 35mm Backset, 92mm PZ, 36" Handle Height

SKU: 499011699

Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
  • Backset: 1-3/8" (35mm)
  • PZ (Handle to Cylinder): 3-5/8" (92mm)
  • Handle Height: 36" (914mm)
  • Deadbolt Throw: 1/2" (14mm)
  • Bottom Tongue Position: 29.65" (753mm)
  • Top Tongue Position: 29.25" (743mm)
  • Door Height Range: 71.06" to 78.74" (can be trimmed)
  • Locking Type: Automatic (tongue version) – tongues engage when door closes
  • 3-point multipoint lock system
  • Used by Semco and other door manufacturers
  • Reuse your existing trim, handles, and keyed cylinder
This product has been discontinued and is no longer available
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Fuhr 3-Point Automatic Multipoint Lock – 35/92 (499011699)

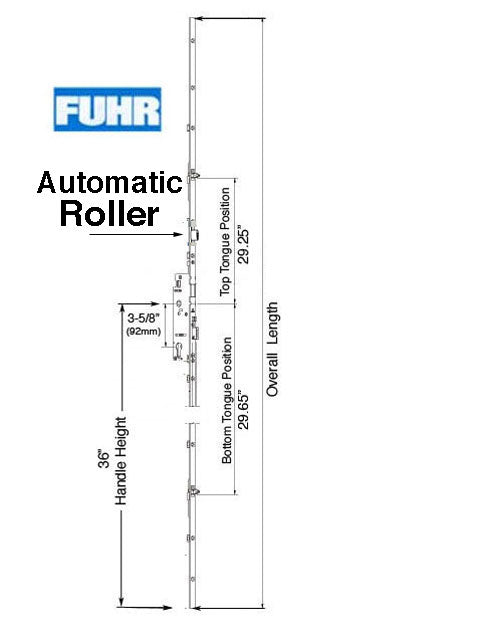

This Fuhr 3-point automatic multipoint lock features a tongue version design where the tongues automatically engage when the door closes. With a 1-3/8 inch (35mm) backset and 3-5/8 inch (92mm) PZ spacing, this lock is designed for secure residential and commercial door applications.

The lock accommodates doors ranging from 71.06 inches to 78.74 inches tall and can be trimmed to fit different door heights. The handle height measures 36 inches (914mm), with the bottom tongue positioned at 29.65 inches (753mm) and the top tongue at 29.25 inches (743mm). The deadbolt throw is 1/2 inch (14mm).

This multipoint lock has been used by Semco and other door manufacturers. When replacing, you can reuse your existing trim, handles, and keyed cylinder.

Technical Information

  • Backset: 1-3/8 inches (35mm)
  • PZ (Handle to Cylinder Spacing): 3-5/8 inches (92mm)
  • Handle Height: 36 inches (914mm)
  • Deadbolt Throw: 1/2 inch (14mm)
  • Bottom Tongue Position: 29.65 inches (753mm)
  • Top Tongue Position: 29.25 inches (743mm)
  • Door Height Range: 71.06 to 78.74 inches
  • Locking Type: Automatic (tongue version)
  • Lock Points: 3-point

Notes

  • The automatic version has the roller located in a different position than on the replacement
  • Manual version is suggested as an alternative – contact office if automatic is required
  • Lock can be trimmed to accommodate different door heights

Replaces / Replaced by

  • 49902-1635T-03-Kit – Hoppe replacement kit including gearbox, upper and lower tongue locks, and screws

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between automatic and manual multipoint locks?

Automatic multipoint locks have tongues that engage automatically when the door closes, while manual versions require you to lift the handle to engage the locking points.

Can this lock be trimmed to fit my door?

Yes, this multipoint lock can be trimmed to fit doors ranging from 71.06 inches to 78.74 inches tall.

What parts can I reuse when replacing this lock?

You can reuse your existing trim, handles, and keyed cylinder when installing the replacement lock.
