Fuhr Automatic 3 Roller Multipoint Lock – 45mm Backset, 36" Handle Height

SKU: 499010499

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Backset: 1-3/4" (45mm)
Handle Height: 36" (914mm)
Faceplate Width: 5/8" (16mm)
Faceplate Color: Yellow dichromate (gold)
Overall Faceplate Length: Approximately 77" (1956mm)

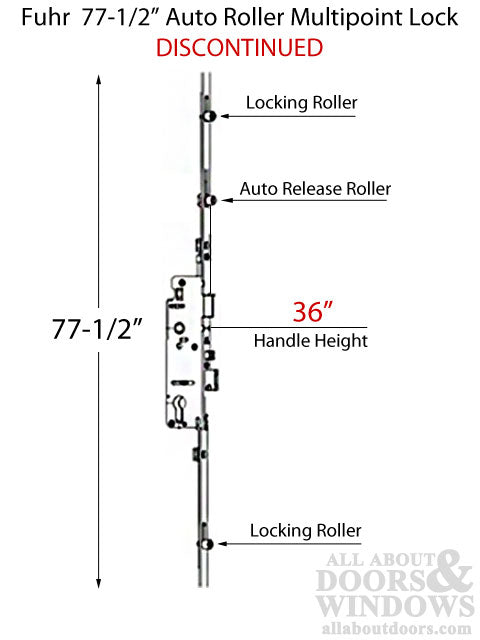

Configuration: 3 rollers – 1 auto release, 2 locking
Auto Release Roller Position: 7-1/4" (184mm)
Bottom Roller Locked Position: 29-1/2" (750mm)
Top Roller Locked Position: 36" (914mm)
Status: Discontinued – replacement options available

This product has been discontinued and is no longer available

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Fuhr Automatic 3 Roller Multipoint Lock (499010499)

This Fuhr Automatic 3 Roller Multipoint Lock features three rollers on the lock body: one auto-release roller and two locking rollers. The lock has a 1-3/4 inch (45mm) backset and a 36 inch (914mm) handle height. The faceplate is 5/8 inch (16mm) wide with a yellow dichromate (gold) finish and measures approximately 77 inches in overall length.

The auto-release roller is positioned at 7-1/4 inches (184mm), the bottom locking roller at 29-1/2 inches (750mm), and the top locking roller at 36 inches (914mm) from the bottom of the faceplate.

Technical Information

Backset: 1-3/4 inches (45mm)
Handle Height: 36 inches (914mm)
Faceplate Width: 5/8 inch (16mm)
Faceplate Color: Yellow dichromate (gold)
Overall Faceplate Length: Approximately 77 inches (1956mm)
Auto Release Roller Position: 7-1/4 inches (184mm)
Bottom Roller Locked Position: 29-1/2 inches (750mm)
Top Roller Locked Position: 36 inches (914mm)

Notes

This item is discontinued. Two replacement options are available.
For instructions on changing the handing (direction of latch slope), refer to the article: How to Change the Handing on a Fuhr Lock.

Replaces / Replaced by

Option 1 – 4990285: Hoppe system with roller on bottom and shootbolt on top. This is the easiest replacement. Fits doors from 76.61 to 80.55 inches tall (requires cutting to length). Kit includes bottom gear, middle extension, top shootbolt, socket strike, and stainless steel installation screws. See article: Replacing FUHR with HOPPE Roller/Shootbolt.
Option 2 – 4990203: Hoppe system with 2 rollers. This replacement is more complex and requires moving strikes on the door jamb. Fits doors from 75.79 to 85.63 inches tall (requires cutting to length). Kit includes bottom gear, top extension, and stainless steel installation screws. See article: Replacing FUHR with HOPPE Roller.

This item is discontinued and sold while supplies last.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What are my replacement options for this discontinued Fuhr lock?

Two Hoppe replacement options are available: 4990285 (roller on bottom, shootbolt on top – easiest replacement) or 4990203 (2 rollers – requires moving strikes on door jamb).

Can I change the handing on a Fuhr multipoint lock?

Yes, the latch direction can be reversed. Refer to the article 'How to Change the Handing on a Fuhr Lock' for step-by-step instructions.

What door heights do the replacement locks fit?

Option 1 (4990285) fits doors 76.61 to 80.55 inches tall, and Option 2 (4990203) fits doors 75.79 to 85.63 inches tall. Both require cutting to length.
