Fuhr Multipoint Lock Case – 35mm Backset, 92mm PZ, New Style

SKU: 499010035

$146.25 - $146.25

$146.25

$146.25 - $146.25

$146.25

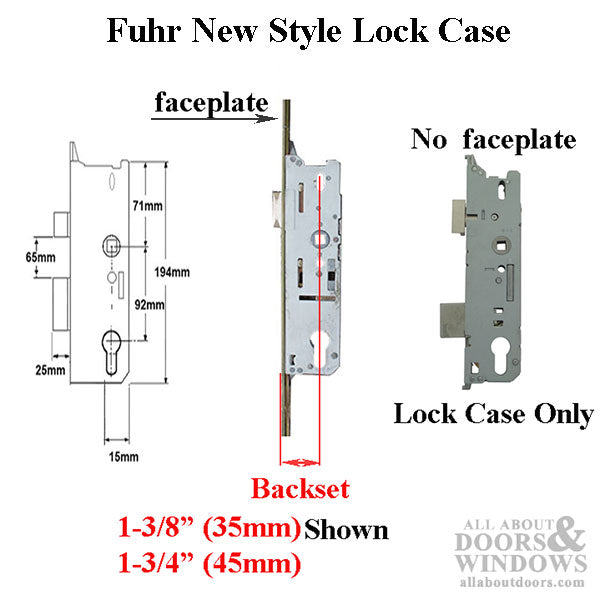

PZ: 3-5/8" (92mm) – center of handle hole to center of cylinder hole
Backset: 1-3/8" (35mm)
Spindle Hub: 5/16" (8mm)
Faceplate: None included – attaches to existing faceplate with 3 screws
Screw Thread: M4
Top to Bottom Connection Screw: 7-13/16" (198.4mm)
Bottom Screw to Center Screw: 4-1/4" (107.9mm)
Top Screw to Center Screw: 3-9/16" (90.5mm)
Important: Only fits NEW style Fuhr locks with 3 screws connecting gearbox to faceplate
Latch handing can be reversed – see product details
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

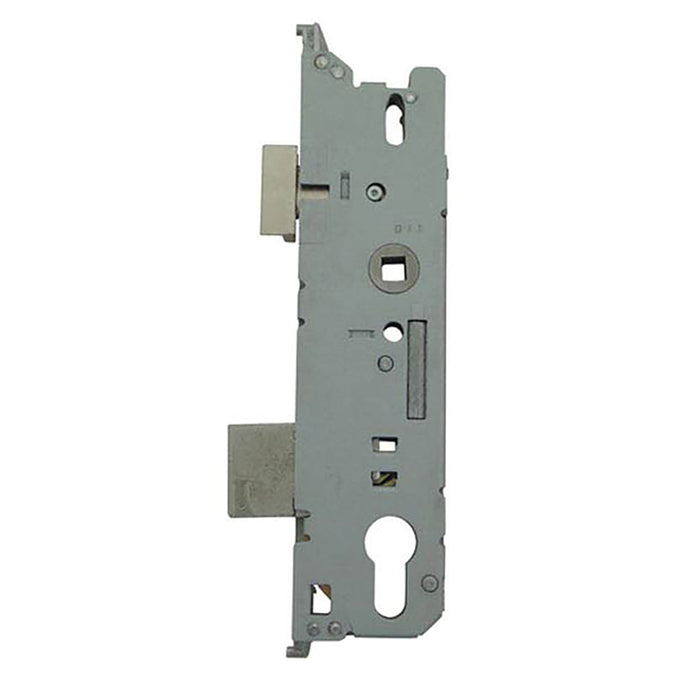

Fuhr Lock Case – 35/92, New Style (499010035)

This Fuhr replacement lock case is designed for newer style multipoint and single point locks that use a lift lever mechanism. It features a 35mm (1-3/8 inches) backset and 92mm (3-5/8 inches) PZ measurement, which is the distance from the center of the handle hole to the center of the cylinder hole.

This lock case is compatible only with the newer Fuhr lock design that connects to the faceplate using three screws. If your existing lock case does not have three screws attaching the gearbox to the faceplate, this replacement will not work. Please verify your lock style by comparing it to the product images before ordering.

Technical Information

Backset: 1-3/8 inches (35mm)
PZ (Handle to Cylinder Center): 3-5/8 inches (92mm)
Spindle Hub: 5/16 inches (8mm)
Screw Thread: M4
Top to Bottom Connection Screw Distance: 7-13/16 inches (198.4mm)
Bottom Screw to Center Screw Distance: 4-1/4 inches (107.9mm)
Top Screw to Center Screw Distance: 3-9/16 inches (90.5mm)
Faceplate: None included
Connection Method: 3 screws to faceplate

Notes

This lock case does NOT include a faceplate – it attaches to your existing faceplate
Only compatible with NEW style Fuhr locks (3-screw connection to faceplate)
Will NOT fit older style Fuhr locks that do not use screws to connect the gearbox
Latch handing can be changed: remove the hex head screw holding the spring latch, reverse the latch, and reinstall the screw

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

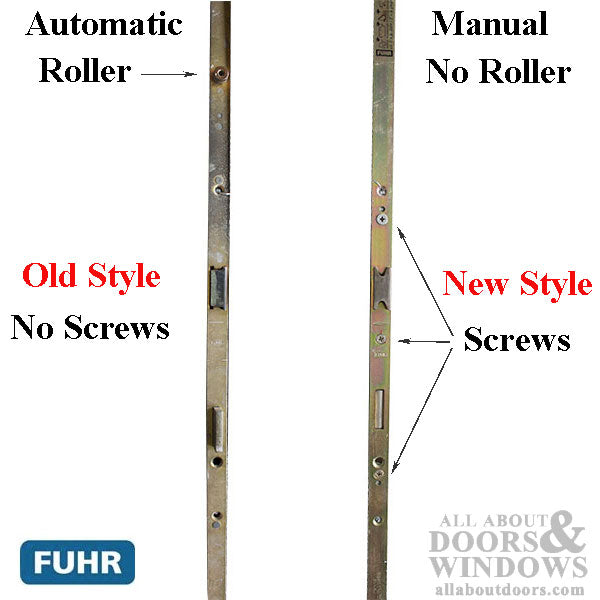

How do I know if I have the new style or old style Fuhr lock?

The new style Fuhr lock has three screws connecting the gearbox to the faceplate. If your lock case does not have these three screws, you have the older style and this replacement will not work.

Can I change the handing on this lock case?

Yes, remove the hex head screw holding the spring latch, reverse the latch direction, and reinstall the screw.

Does this lock case include a faceplate?

No, this is a lock case only. It attaches to your existing faceplate using three screws.
