Fuhr Single Point Mortise Lock – 45mm Backset

SKU: 49901002

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

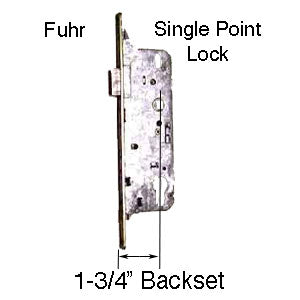

Backset: 1-3/4" (45mm)
Faceplate: 5/8" x 10-7/8" (16mm x 276mm)
Faceplate Screw Holes: 10-1/8" (257mm) center to center
Compatible with Norco, Kolbe, Weather Shield doors from mid-1990s
Fuhr and Hoppe locks are very similar in size
Sold individually

This product has been discontinued and is no longer available

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Fuhr Single Point Mortise Lock – 45mm Backset (49901002)

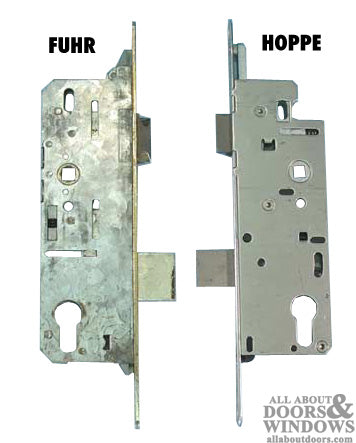

This Fuhr single point mortise lock was commonly used by Norco, Kolbe, Weather Shield, and other door manufacturers in the mid-1990s. The Fuhr and Hoppe single point locks are very similar in size, making Hoppe replacements a suitable option.

Technical Information

Backset: 1-3/4 inches (45mm)
Faceplate Dimensions: 5/8 inches x 10-7/8 inches (16mm x 276mm)
Faceplate Screw Hole Spacing: 10-1/8 inches (257mm)

Replaces / Replaced by

Replace with 11517499 or 11517487 (Hoppe replacements with stainless faceplate)

Notes

Fuhr and Hoppe single point mortise locks are very similar in size
Replacement options feature a stainless steel faceplate

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I use a Hoppe lock to replace this Fuhr lock?

Yes, Fuhr and Hoppe single point mortise locks are very similar in size. The recommended replacements are Hoppe part numbers 11517499 or 11517487, which feature a stainless steel faceplate.

How do I measure my backset to confirm this is the right lock?

Measure from the edge of the door to the center of the handle bore hole. This lock has a 1-3/4 inch (45mm) backset.
