Fuhr Multisafe Manual Multipoint Lock – 45mm Backset, 92mm PZ, 2 Hooks, 91-1/16" Length

Fuhr Multisafe Manual Multipoint Lock – 45mm Backset, 92mm PZ, 2 Hooks, 91-1/16" Length

SKU: 49901-1645H-03

$285.90 - $285.90
$285.90
$285.90 - $285.90
$285.90

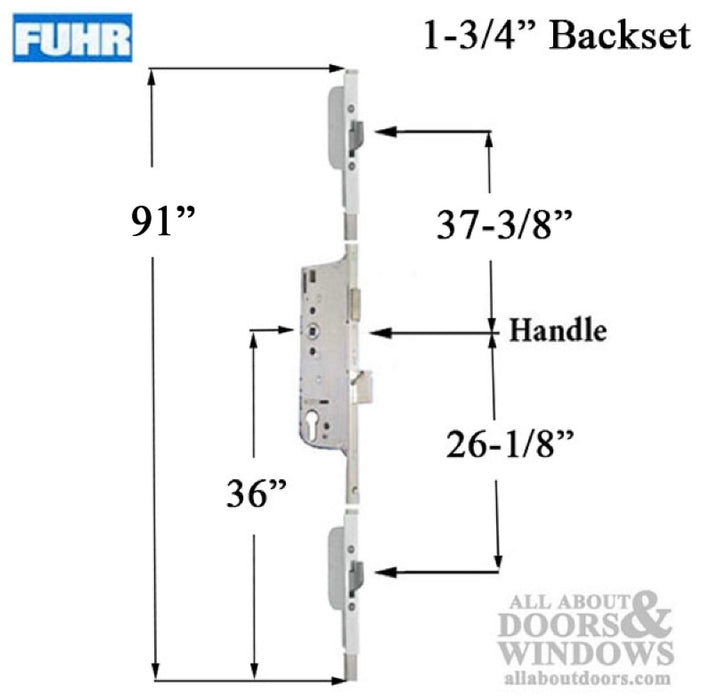

  • PZ: 3-5/8" (92mm)
  • Backset: 1-3/4" (45mm)
  • Faceplate Width: 5/8" (16mm)
  • Deadbolt Throw: 3/4" (20mm)
  • Handle Height: 36" (914mm)
  • Finish: Stainless Steel
  • Configuration: Manual gear with deadbolt and 2 hooks
  • Bottom Hook Position: 26-1/8" (664mm) from handle
  • Top Hook Position: 37-3/8" (950mm) from handle
  • Hook Spacing: 63-1/2" (1613mm) apart
  • Overall Length: 91-1/16" (2313mm)
  • One-piece system with gear and top extension attached
  • Designed for specific door height application
  • Latch handing can be reversed
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Fuhr Multisafe Manual Gear – 45/92, 2 Hooks (49901-1645H-03)

This Fuhr Multisafe manual multipoint lock system is a complete one-piece unit featuring a gear mechanism with an attached top extension. The lock includes a deadbolt and two hooks for secure multi-point engagement, all with a durable stainless steel faceplate.

This lock is designed for doors approximately 91 inches in height. The one-piece construction simplifies installation by eliminating the need to align separate components. The manual gear operation provides reliable, mechanical locking without the need for automatic engagement.

Technical Information

  • PZ (Handle to Cylinder): 3-5/8 inches (92mm)
  • Backset: 1-3/4 inches (45mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Deadbolt Projection: 3/4 inch (20mm)
  • Handle Height: 36 inches (914mm)
  • Bottom Hook Position: 26-1/8 inches (664mm) from handle center
  • Top Hook Position: 37-3/8 inches (950mm) from handle center
  • Hook Spacing: 63-1/2 inches (1613mm) between hooks
  • Overall Length: 91-1/16 inches (2313mm)
  • Locking Points: Deadbolt + 2 Hooks
  • Faceplate Finish: Stainless Steel
  • Article Number: 49901-1645H-03

Notes

  • This one-piece Fuhr multipoint lock is made for a specific door height
  • Latch handing can be changed by following the rehanding procedure

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I change the handing on this Fuhr lock?

The latch direction can be reversed by following the rehanding procedure. Insert a small tool to release the latch mechanism, rotate it to the opposite direction, and secure it in place.

What door height is this lock designed for?

This one-piece Fuhr multipoint lock has an overall length of 91-1/16 inches and is made for a specific door height around 7 feet 6 inches to 7 feet 8 inches.

What is the difference between manual and automatic multipoint locks?

Manual multipoint locks require you to lift the handle to engage all locking points, while automatic locks engage when the door closes. This Fuhr lock uses manual gear operation.
