Fuhr Multisafe Manual Gear with 2 Hooks for 82-9/16" Doors – 45mm Backset, 92mm PZ

SKU: 49901-1645H-02

$278.04 - $278.04

$278.04

$278.04 - $278.04

$278.04

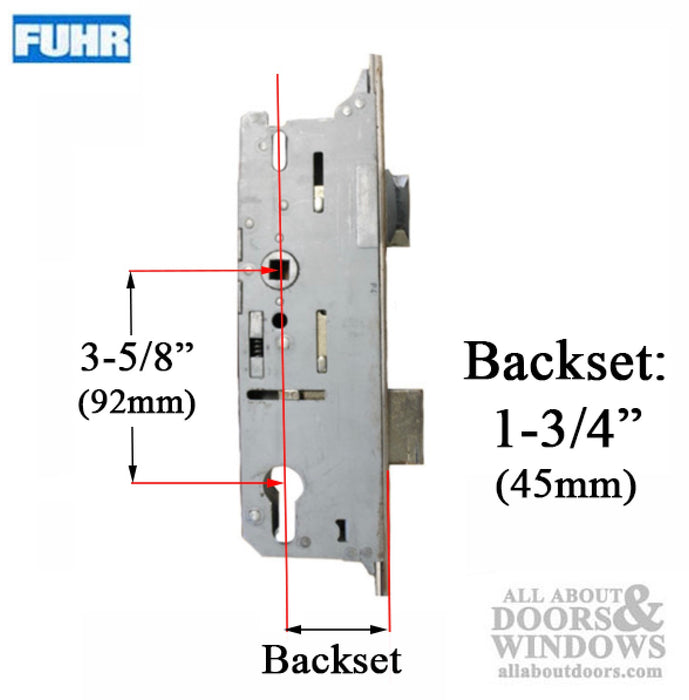

PZ: 3-5/8" (92mm)
Backset: 1-3/4" (45mm)
Faceplate Width: 5/8" (16mm)
Deadbolt Throw: 1" (25.4mm)
Handle Height: 36" (914mm)
Upper Hook Position: 32-23/32" (831mm)
Lower Hook Position: 26-1/8" (664mm)
Overall Length: 82-9/16" (2097mm)
Cylinder Type: Euro Profile
Manual gear with 2 hooks
One-piece system with gear and top extension attached
Designed for special size doors measuring 82-9/16"
Latch handing can be reversed

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Fuhr Multisafe Manual Gear – 2 Hooks, 45/92 (49901-1645H-02)

This Fuhr Multisafe manual multipoint lock system features a one-piece design with the gear and top extension already attached. It includes 2 hooks for secure door engagement and is built specifically for doors measuring 82-9/16 inches (2097mm) in height.

The lock operates with a manual gear mechanism and uses a Euro Profile cylinder. With a 1-3/4 inch (45mm) backset and 3-5/8 inch (92mm) PZ measurement, this lock is designed as a direct replacement for existing Fuhr multipoint systems.

Technical Information

PZ (Handle to Cylinder): 3-5/8 inches (92mm)
Backset: 1-3/4 inches (45mm)
Faceplate Width: 5/8 inches (16mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height: 36 inches (914mm)
Upper Hook Position: 32-23/32 inches (831mm)
Lower Hook Position: 26-1/8 inches (664mm)
Overall Length: 82-9/16 inches (2097mm)
Cylinder Type: Euro Profile
Number of Hooks: 2

Notes

This one-piece Fuhr multipoint lock is made for a specific door height of 82-9/16 inches. If your door is a different height, this lock may not work properly.
The latch handing can be reversed. See the article on how to change the handing on a Fuhr lock to change the direction of the latch slope.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will this lock work on my door if it's not exactly 82-9/16" tall?

This one-piece Fuhr multipoint lock is specifically designed for doors measuring 82-9/16" in height. If your door is a different height, this lock may not fit properly and you should contact us for alternatives.

Can I change the handing on this Fuhr lock?

Yes, the latch handing can be reversed to change the direction of the latch slope. This allows the lock to work on both left-hand and right-hand doors.

What type of cylinder does this lock use?

This lock uses a Euro Profile cylinder, which is a standard European-style cylinder commonly found in multipoint lock systems.
