Ashland Passive Multipoint Lock – 60mm Backset, 92mm PZ, Concealed Rod

SKU: 4991634

$98.47 - $98.47

$98.47

$98.47 - $98.47

$98.47

PZ: 92mm
Backset: 2-3/8" (60mm)
Type: Concealed Rod Version, Passive Lock

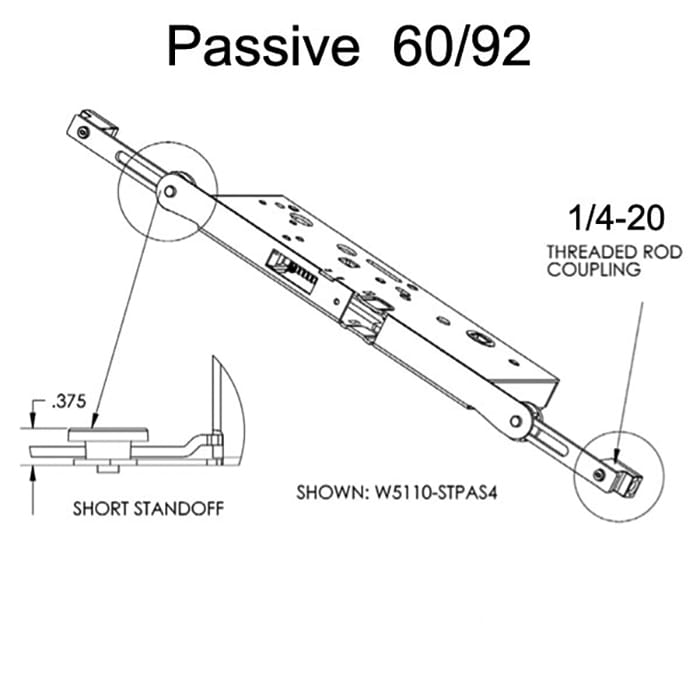

Standoff: Short, 1/4-20 thread

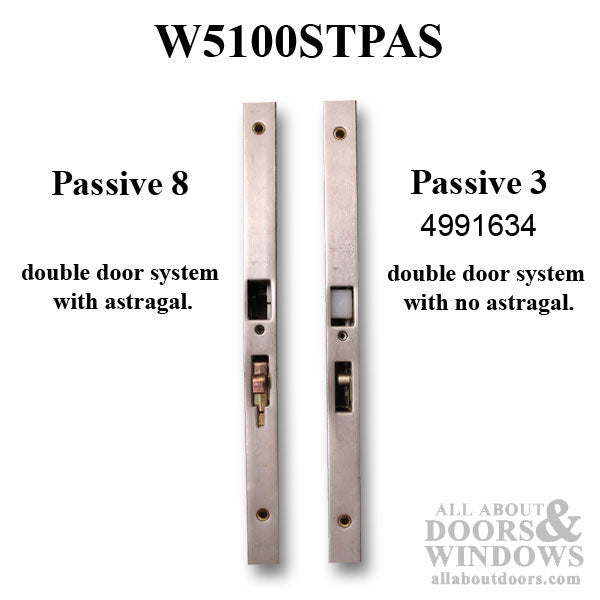

Application: Double door without astragal
Compatible Door Materials: Wood, vinyl, fiberglass, or steel
No thumb turn on handle set – shootbolts locked by deadbolt extension
Can be rehanded for left or right door configurations

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

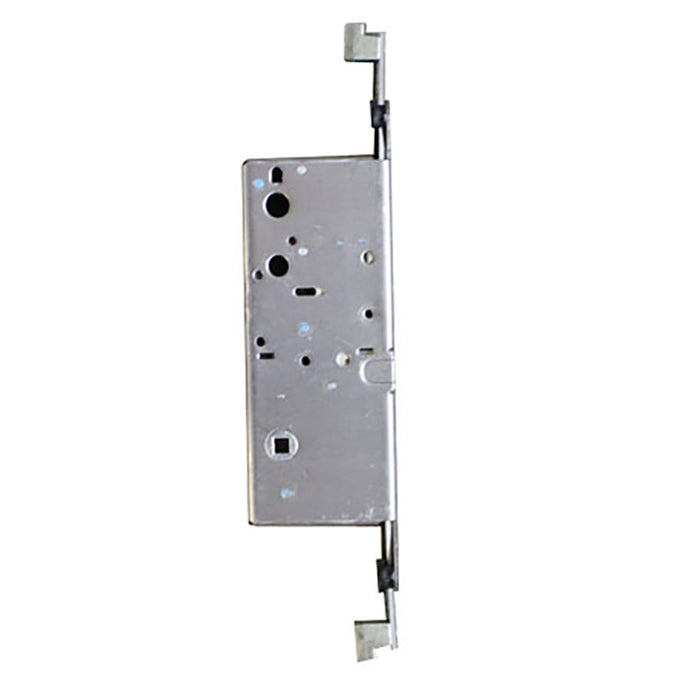

Ashland Passive Multipoint Lock – 60/92 Concealed Rod (4991634)

This Ashland Passive 3 multipoint lock features a concealed rod design with a 60mm backset and 92mm PZ spacing. Designed for double door applications without an astragal, this passive lock operates without a thumb turn on the handle set. The shootbolts are secured in place when the deadbolt extends into the passive lock, blocking the handles from moving.

This lock is compatible with wood, vinyl, fiberglass, and steel doors, making it a versatile choice for various door constructions. The short standoff design uses 1/4-20 threading for secure mounting.

Technical Information

Backset: 2-3/8 inches (60mm)
PZ: 92mm
Type: Concealed Rod, Passive Lock
Standoff: Short, 1/4-20 thread
Application: Double door without astragal

Notes

No thumb turn on handle set
Shootbolts locked in place by deadbolt extension
Can be rehanded – see instructional videos for guidance
Compatible with wood, vinyl, fiberglass, or steel doors

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How does a passive multipoint lock work?

A passive lock does not have a thumb turn on the handle set. The shootbolts are locked in place when the deadbolt from the active door extends into the passive lock, blocking the handles from moving.

Can this lock be rehanded for different door configurations?

Yes, Ashland multipoint locks can be rehanded. Refer to the instructional videos for step-by-step guidance on the rehanding process.

What door materials is this lock compatible with?

This lock is compatible with wood, vinyl, fiberglass, and steel doors.
