Ashland Active Multipoint Lock – 45mm Backset, 27mm Faceplate

SKU: 4991630-45-27

Sold out

$177.26 - $177.26

$177.26

$177.26 - $177.26

$177.26

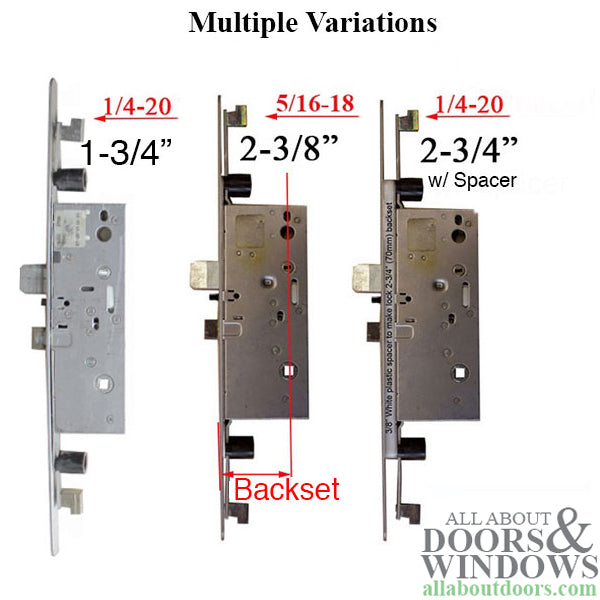

Backset: 1-3/4" (45mm)
Faceplate Width: 1-1/16" (27mm)
Faceplate Length: 15-15/16" (405mm)
Faceplate Corners: Radius
Rod Connection Thread: 1/4-20
Stamped: Patent NO. 6,209,931

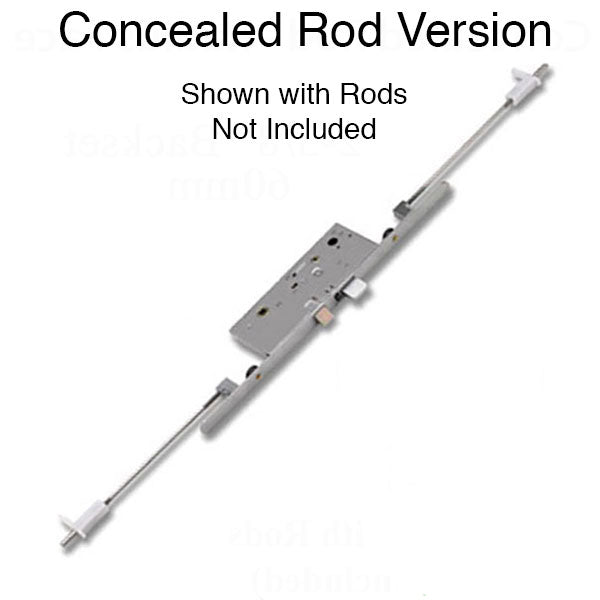

Concealed shootbolt rods at top and bottom of door panel
Faceplate is riveted to lock case
Lift handle to extend rods, turn key or thumbturn to extend deadbolt
Can be rehanded by rotating the latch
Does not include rods or screws – gear box only
Priced and sold each

Discontinued and no longer available

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Ashland Active Multipoint Lock – 45/27 (4991630-45-27)

This Ashland active multipoint lock features concealed shootbolt rods at the top and bottom of the door panel. The lock case comes with a riveted faceplate with radius ends, designed for secure multipoint door applications.

The lock operates by lifting the handle to extend the rods, then turning the key or thumbturn to extend the deadbolt. The deadbolt can be extended with or without the rods being engaged, providing flexible locking options.

Stamped With

Patent NO. 6,209,931

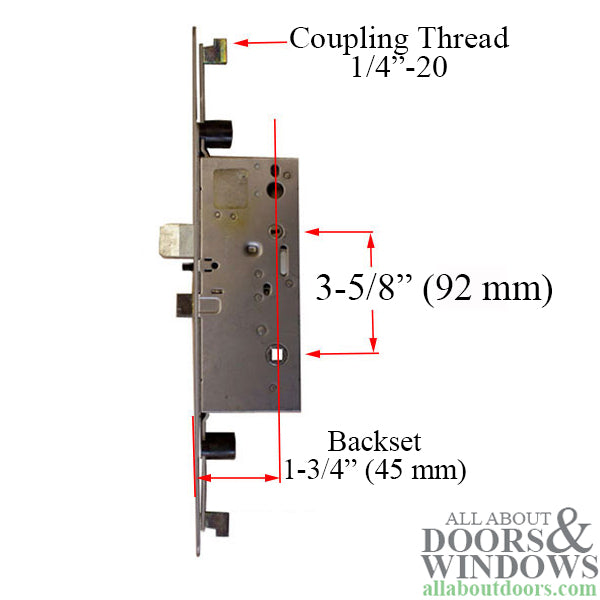

Technical Information

Backset: 1-3/4 inches (45mm)
Faceplate Width: 1-1/16 inches (27mm)
Faceplate Length: 15-15/16 inches (405mm)
Faceplate Corners: Radius
Rod Connection Thread: 1/4-20

Notes

This is the gear box only – does not include rods or screws
Faceplate is riveted to lock case
The rods have guide brackets at top and bottom of door that need to be removed to extract rods
The rods have a hex shape that allows an extended socket to fit for easier removal
Lock can be removed with bottom rod still attached by removing top bracket and top rod first

How to Change Handing

Insert screwdriver into slot behind latch
Pull down on handing release – latch pops out
Rotate latch and push back into lock case
Always check function of lock before closing door

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I change the handing on this Ashland multipoint lock?

Insert a screwdriver into the slot behind the latch, pull down on the handing release until the latch pops out, rotate the latch, and push it back into the lock case. Always test the lock before closing the door.

Does this lock come with the shootbolt rods?

No, this is the gear box only. The shootbolt rods and screws are sold separately.

Can I extend the deadbolt without engaging the rods?

Yes, the deadbolt may be extended with or without the rods being engaged, giving you flexible locking options.
