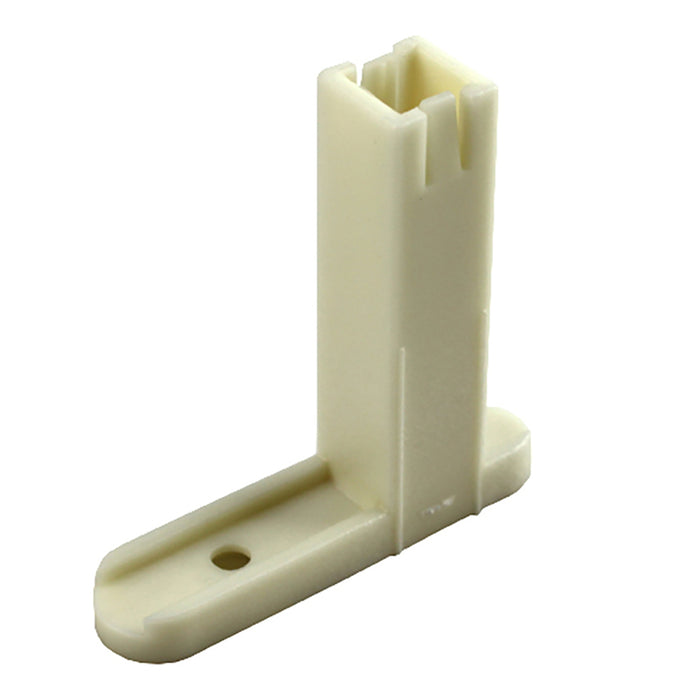

Plastic Shootbolt Guide – Square Hole, Tan

SKU: 10815199

$1.66 - $1.66

$1.66

$1.66 - $1.66

$1.66

Face Width: 5/8" (16mm)
Face Length: 2-7/16" (62mm)
Depth: 1-3/4" (44mm)
Base: 5/8" x 5/8" (16mm x 16mm)
Hole Shape: Square
Color: Tan
Priced and sold each

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Plastic Shootbolt Guide – Tan (10815199)

This plastic shootbolt guide features a square-shaped hole and tan finish. It is designed to guide the shootbolt rod smoothly within multipoint lock systems, ensuring proper alignment and operation.

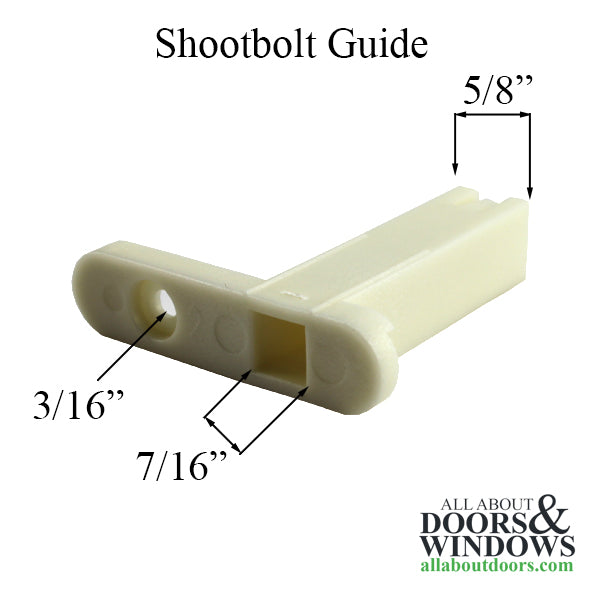

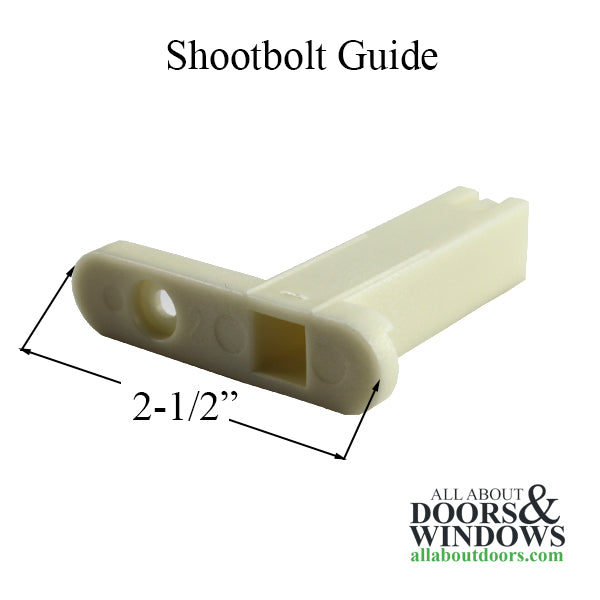

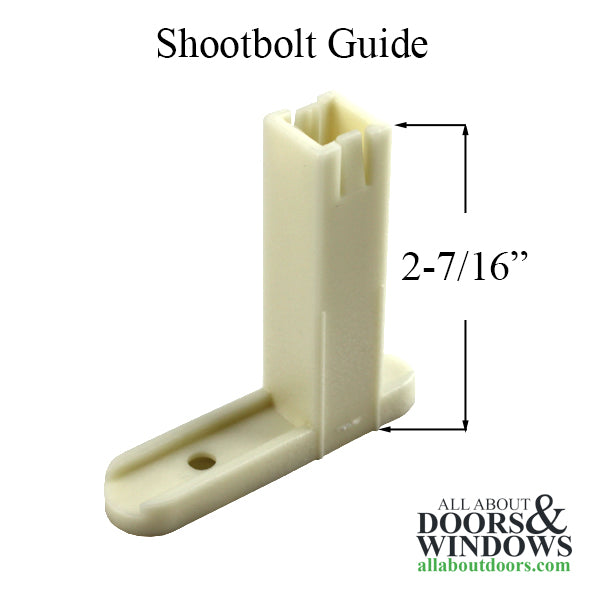

The guide measures 5/8 inches (16mm) in face width, 2-7/16 inches (62mm) in face length, and 1-3/4 inches (44mm) in depth. The base measures 5/8 x 5/8 inches (16mm x 16mm).

Technical Information

Face Width: 5/8 inches (16mm)
Face Length: 2-7/16 inches (62mm)
Depth: 1-3/4 inches (44mm)
Base Dimensions: 5/8 x 5/8 inches (16mm x 16mm)
Hole Shape: Square
Material: Plastic
Color: Tan

Notes

This guide can be used when rehanding Ashland multipoint locks on Marvin doors

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is a shootbolt guide used for?

A shootbolt guide directs and aligns the shootbolt rod within a multipoint lock system, ensuring smooth operation when locking and unlocking the door.

Can this guide be used when rehanding a multipoint lock?

Yes, this shootbolt guide is commonly used when rehanding Ashland multipoint locks on Marvin doors.
