Andersen A-Series 3-Point Lock Mechanism for FWHID80 Doors – 50mm Backset, 106mm PZ

SKU: 9014689

$305.64 - $305.64

$305.64

$305.64 - $305.64

$305.64

Unit Number: FWHID80 (2008 to present)
Overall Length: 92-7/16" (2348.7mm)
Backset: 2" (50.8mm)
PZ: 4-3/16" (106.4mm)
Faceplate Width: 7/8" (22.2mm)
Handle Height: 36" (914.4mm)
Bottom Hook: 31-1/8" from handle center (790.6mm)
Top Hook: 51-1/2" from handle center (1308.1mm)
Center of Deadbolt to Spring Latch: 1-3/8" (34.9mm)
For Andersen A-Series Hinged Patio Doors, inswing and outswing
3-point locking system for active panel
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Andersen A-Series 3-Point Lock – FWHID80 (9014689)

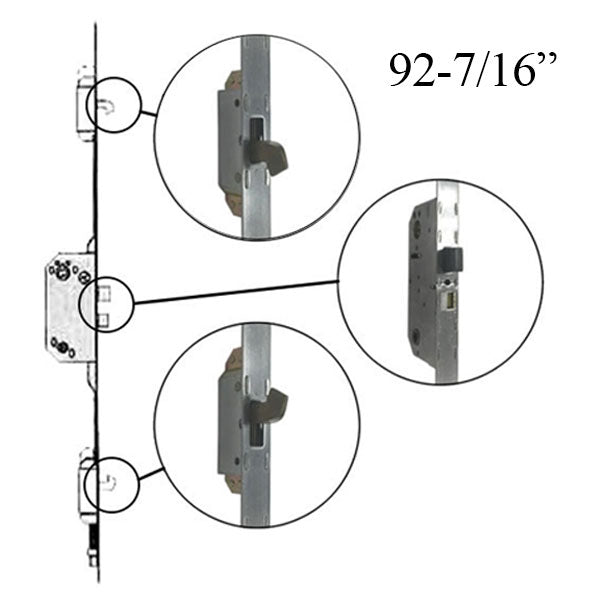

This Andersen 3-point lock mechanism is designed for A-Series Hinged Patio Doors manufactured from 2008 to present. It fits the active panel on doors with unit number FWHID80, providing secure multi-point locking with top and bottom hooks plus a center deadbolt.

The mechanism measures 92-7/16 inches (2348.7mm) in overall length with a 7/8 inch (22.2mm) faceplate width and 2 inch (50.8mm) backset. The handle height is positioned at 36 inches (914.4mm), with the bottom hook located 31-1/8 inches (790.6mm) from the handle center and the top hook at 51-1/2 inches (1308.1mm) from the handle center.

Compatible with both inswing and outswing door configurations. Andersen A-Series hinged doors are available in various widths and heights, with exterior fiberglass cladding in 11 colors and interior wood options including Oak, Maple, Pine, Fir, Cherry, and Mahogany.

Technical Information

Unit Number: FWHID80
Overall Length: 92-7/16 inches (2348.7mm)
Faceplate Width: 7/8 inch (22.2mm)
Backset: 2 inches (50.8mm)
PZ (Handle to Lock Center): 4-3/16 inches (106.4mm)
Handle Height: 36 inches (914.4mm)
Bottom Hook Position: 31-1/8 inches from handle center (790.6mm)
Top Hook Position: 51-1/2 inches from handle center (1308.1mm)
Center of Both Hooks: 82-5/8 inches (2098.7mm)
Deadbolt to Spring Latch: 1-3/8 inches (34.9mm)
Manufacturing Date: 2008 to present

Related Parts

9014687 - FWHID68, Active Lock Mechanism 3-point
9014688 - FWHID611, Active Lock Mechanism 3-point
2579777 - FWHID68, Passive Lock Mechanism with Shootbolts
2579778 - FWHID611, Passive Lock Mechanism with Shootbolts
2579779 - FWHID80, Passive Lock Mechanism with Shootbolts

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I know if this lock fits my Andersen door?

Check your door's unit number label for FWHID80. This lock is designed for A-Series Hinged Patio Doors manufactured from 2008 to present with that specific unit number.

What is the difference between the active and passive lock mechanism?

The active lock mechanism (this part) is installed on the door panel with the handle that you operate to lock and unlock. The passive mechanism (2579779) is installed on the stationary panel and engages with shootbolts when the active panel is closed.

Does this work for both inswing and outswing doors?

Yes, this 3-point lock mechanism is compatible with both inswing and outswing configurations of Andersen A-Series Hinged Patio Doors.
