Andersen Active Multipoint Lock for 6' 8" Frenchwood Hinged Doors – 50.8mm Backset, 106.4mm PZ

SKU: 2579771

$339.37 - $339.37

$339.37

$339.37 - $339.37

$339.37

PZ (Handle Spacing): 4-3/16" (106.4mm)
Backset: 2" (50.8mm)
Faceplate Width: 7/8" (22.2mm)

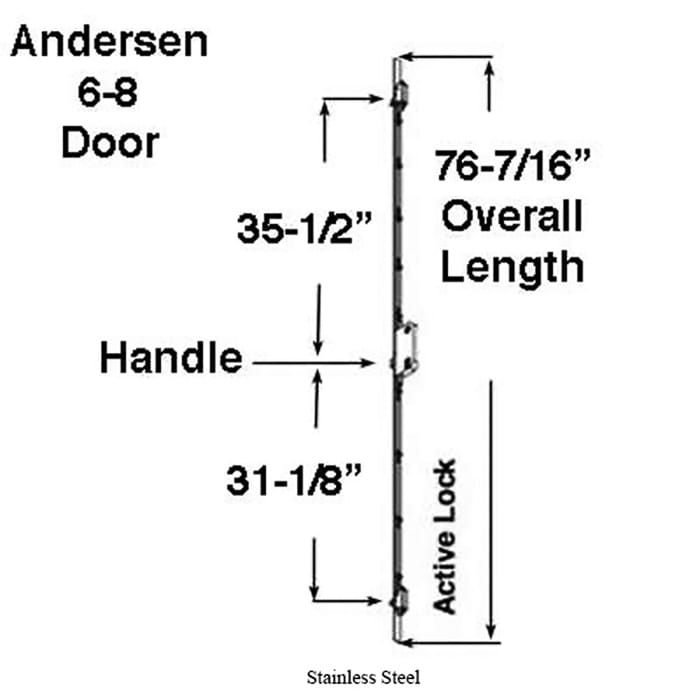

Overall Length: 76-1/2" (1943.1mm)
Handle Height: 36-1/8" (917.6mm)
Center of Deadbolt to Center of Spring Latch: 1-3/8" (34.9mm)
Bottom Hook Location: 31-1/8" (790.6mm) from center of handle
Top Hook Location: 35-1/2" (901.7mm) from center of handle
Finish: Stainless Steel

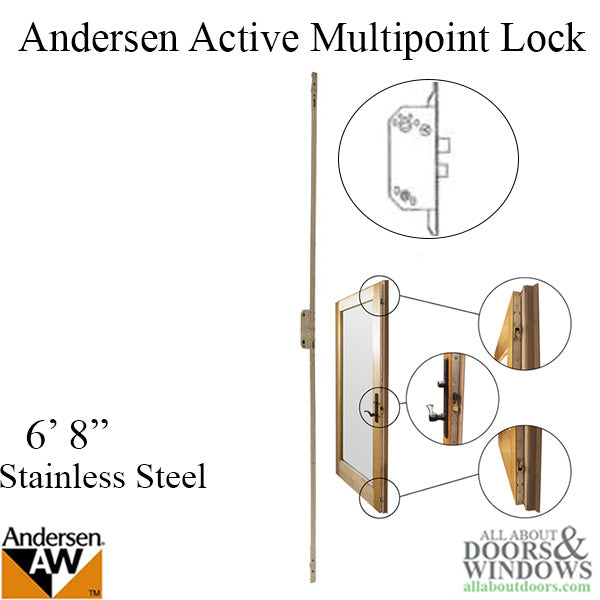

3-point lock mechanism with locking hooks at top and bottom
Fits Andersen 6' 8" Frenchwood Hinged Doors built from 1988 to present
Latch handing can be reversed
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Andersen Active 3-Point Lock – 6' 8" Frenchwood (2579771)

This Andersen Active Multipoint Lock is designed for 6 foot 8 inch Frenchwood Hinged Patio Doors manufactured from 1988 to present. The 3-point locking mechanism features a spring latch, deadbolt, and locking hooks at both the top and bottom of the door for enhanced security.

The lock has an overall length of 76-1/2 inches (1943.1mm) with a 7/8 inch (22.2mm) faceplate width. The backset measures 2 inches (50.8mm) and the handle spacing (PZ) is 4-3/16 inches (106.4mm). Handle height is positioned at 36-1/8 inches (917.6mm) from the bottom of the faceplate.

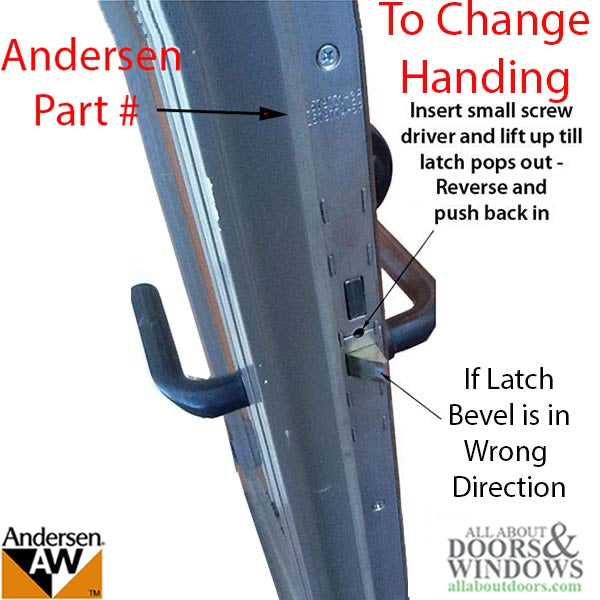

This stainless steel lock is interchangeable with older zinc dichromate (gold colored) Active models. The latch handing can be reversed by inserting a small screwdriver into the round hole between the latch and deadbolt, pushing down to release the latch, then rotating and pushing it back into the lock.

Stamped With

2579771
3P (indicating 3 locking points)

Technical Information

Overall Length: 76-1/2 inches (1943.1mm)
Faceplate Width: 7/8 inch (22.2mm)
Backset: 2 inches (50.8mm)
Handle Spacing (PZ): 4-3/16 inches (106.4mm)
Handle Height: 36-1/8 inches (917.6mm)
Center of Deadbolt to Center of Spring Latch: 1-3/8 inches (34.9mm)
Bottom Hook Location: 31-1/8 inches (790.6mm) from center of handle
Top Hook Location: 35-1/2 inches (901.7mm) from center of handle
Lock Type: Active 3-Point
Material: Stainless Steel

Notes

Andersen Frenchwood hinged doors come in 4 heights: 6-8 (76-7/16 inches panel), 6-11 (79-3/8 inches panel), 7-6 (86-7/16 inches panel), and 8-0 (93-1/2 inches panel)
Most Andersen patio door locks have a 7-digit part number on the faceplate
If your lock has both 2579771 and 2579774 stamped on the faceplate, check whether your lock has shootbolts (locking bolts that go into the floor and top of the door frame). If it does, you need part 2579774 instead
Interchangeable with older zinc dichromate (gold colored) Active models

Related Parts

2579771 - 6-8 Active New Style (this listing)
2579777 - 6-8 Passive New Style
2579512 - 6-8 Active Old Style
2579527 - 6-8 Passive Old Style

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I reverse the latch handing on this Andersen multipoint lock?

Insert a small screwdriver into the round hole between the latch and deadbolt, push down to release the latch, then rotate the latch and push it back into the lock.

How do I know if I need this lock or the 2579774 model?

If your lock has both 2579771 and 2579774 stamped on the faceplate, check whether your door has shootbolts (locking bolts that go into the floor and top of the door frame). If it does, you need part 2579774. If not, this 2579771 is correct.

Will this lock work with my older gold-colored Andersen lock?

Yes, this stainless steel lock is interchangeable with older zinc dichromate (gold colored) Active models on Andersen 6 foot 8 inch Frenchwood Hinged Doors.
