AGB ARTech Monobloc Gear Box – 16mm Faceplate, Multiple Backsets

AGB ARTech Monobloc Gear Box – 16mm Faceplate, Multiple Backsets

SKU:

$10.08 - $69.91
$10.08
$10.08 - $69.91
$10.08
  • Manufacturer: AGB (ARTech series)
  • Faceplate Width: 16mm (5/8")
  • Available Backsets: 15mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm
  • Application: Tilt & Turn Windows with Multipoint Locks
  • Alignment Tab: Located on face of lock; breaks off after installation to ensure proper alignment
  • Important: Drive rod must be cut to length and screw hole punched in bar; requires Punch Press/Cutting Tool #4908
  • Note: Professional installation recommended; not a DIY replacement product
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

AGB ARTech Monobloc Gear Box – 16mm Faceplate (A50191)

The AGB ARTech Monobloc Gear Box is a precision-engineered component designed for tilt and turn windows equipped with multipoint locking systems. Manufactured by AGB, this gear box features a 16mm faceplate width and is available in multiple backset configurations to accommodate various window profiles.

This gear box is available in seven backset measurements: 15mm (19/32 inches), 25mm (1 inch), 30mm (1-3/16 inches), 35mm (1-3/8 inches), 40mm (1-9/16 inches), 45mm (1-3/4 inches), and 50mm (1-31/32 inches). The backset is measured from the front of the faceplate to the center of the spindle hole.

Technical Information

  • Manufacturer: AGB
  • Series: ARTech
  • Faceplate Width: 16mm (5/8 inches)
  • Available Backsets: 15mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm
  • Application: Tilt & Turn Windows with Multipoint Locks

Notes

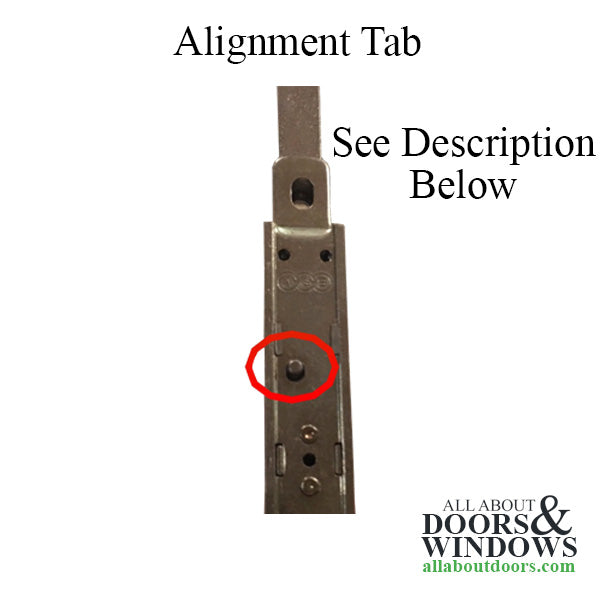

  • An alignment tab/button is located on the face of the lock. After hardware is installed, added pressure on the handle will cause the button to break/shear off, ensuring proper alignment.
  • When replacing the drive rod portion of the multipoint lock assembly, the rod must be cut to length.
  • A screw hole must be punched in the bar during installation.
  • This product is designed for new construction and professional installation. A Punch Press/Cutting Tool #4908 is required for proper installation.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I measure the backset on this gear box?

The backset is measured from the front of the faceplate to the center of the spindle hole. Refer to the product images for guidance.

What is the alignment tab on the face of the lock?

The alignment tab is a button that ensures proper alignment during installation. After the hardware is installed, applying pressure to the handle will cause the tab to break off, confirming correct alignment.

Can I install this gear box myself?

This product is designed for new construction and professional installation. The drive rod must be cut to length and a screw hole punched in the bar, which requires a Punch Press/Cutting Tool #4908.
