AGB Unitop Terminal Shootbolt – 180mm, Silver, No Cam

AGB Unitop Terminal Shootbolt – 180mm, Silver, No Cam

SKU: A40486.00.01

$10.46 - $10.46
$10.46
$10.46 - $10.46
$10.46
  • Length: 7-3/32" (180mm)
  • Finish: Silver
  • Type: Terminal shootbolt without cam
  • Compatible with: AGB Unitop 3-point lock systems
  • Standard lock handle height: 41-3/4" (1060mm)
  • Standard overall faceplate length: 75-5/8" (1920mm)
  • Basic unit with top shootbolt: 82-5/8" (2100mm)
  • Faceplate features serrated teeth for cutting to adjust height on doors shorter than 82-1/2"
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

AGB Unitop Terminal Shootbolt – 180mm, Silver (A40486.00.01)

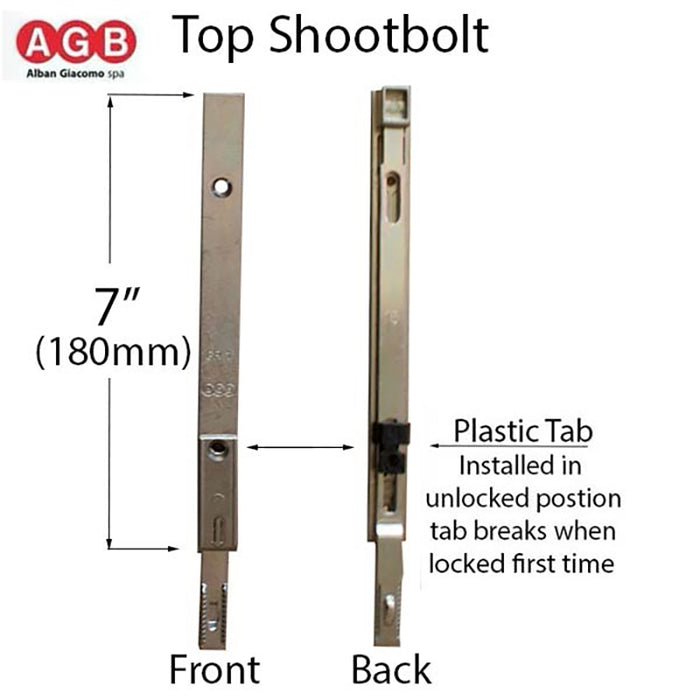

This AGB Unitop Terminal Shootbolt is designed for use with AGB Unitop 3-point multipoint lock systems. Measuring 7-3/32 inches (180mm) in length, this shootbolt extension comes in a silver finish and does not include a cam.

The standard AGB Unitop 3-point lock features a 41-3/4 inch (1060mm) handle height and a 75-5/8 inch (1920mm) overall faceplate length, not including the top shootbolt or additional extensions. When the basic unit is combined with the top shootbolt, the total length reaches 82-5/8 inches (2100mm).

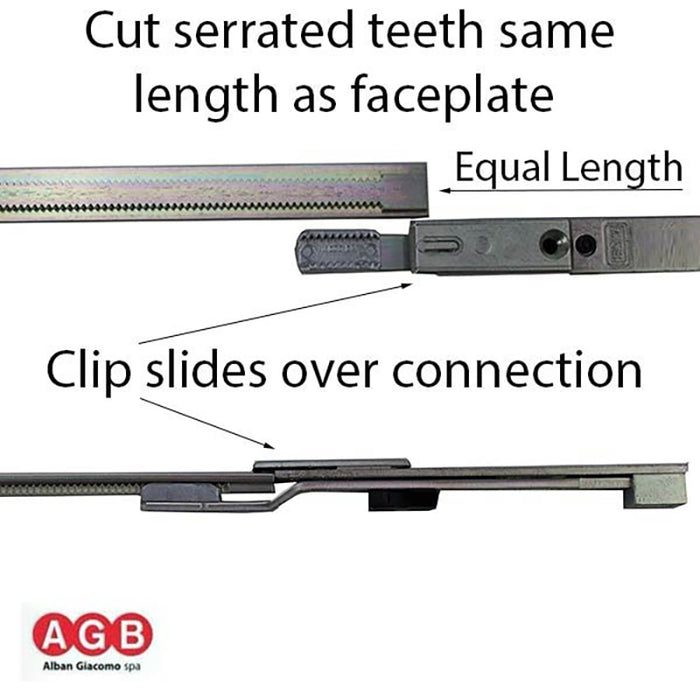

For doors shorter than 82-1/2 inches, the top faceplate includes serrated teeth that allow for easy cutting and adjustment to fit your specific door height.

Technical Information

  • Shootbolt Length: 7-3/32 inches (180mm)
  • Finish: Silver
  • Cam: Not included
  • Original Manufacturer SKU: A40486.00.01

Notes

  • Standard AGB Unitop handle height: 41-3/4 inches (1060mm)
  • Standard faceplate length: 75-5/8 inches (1920mm)
  • Basic unit with top shootbolt: 82-5/8 inches (2100mm)
  • Faceplate can be cut using serrated teeth for doors under 82-1/2 inches

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is a terminal shootbolt?

A terminal shootbolt is an extension component that attaches to the end of a multipoint lock system, providing an additional locking point at the top or bottom of the door for enhanced security.

Can I cut this shootbolt to fit a shorter door?

Yes, the faceplate features serrated teeth that allow you to cut and adjust the length for doors shorter than 82-1/2 inches.

What does 'no cam' mean?

This shootbolt does not include a cam mechanism. The cam is a component that engages the shootbolt when the handle is operated. You may need a separate cam depending on your lock configuration.
